Overview

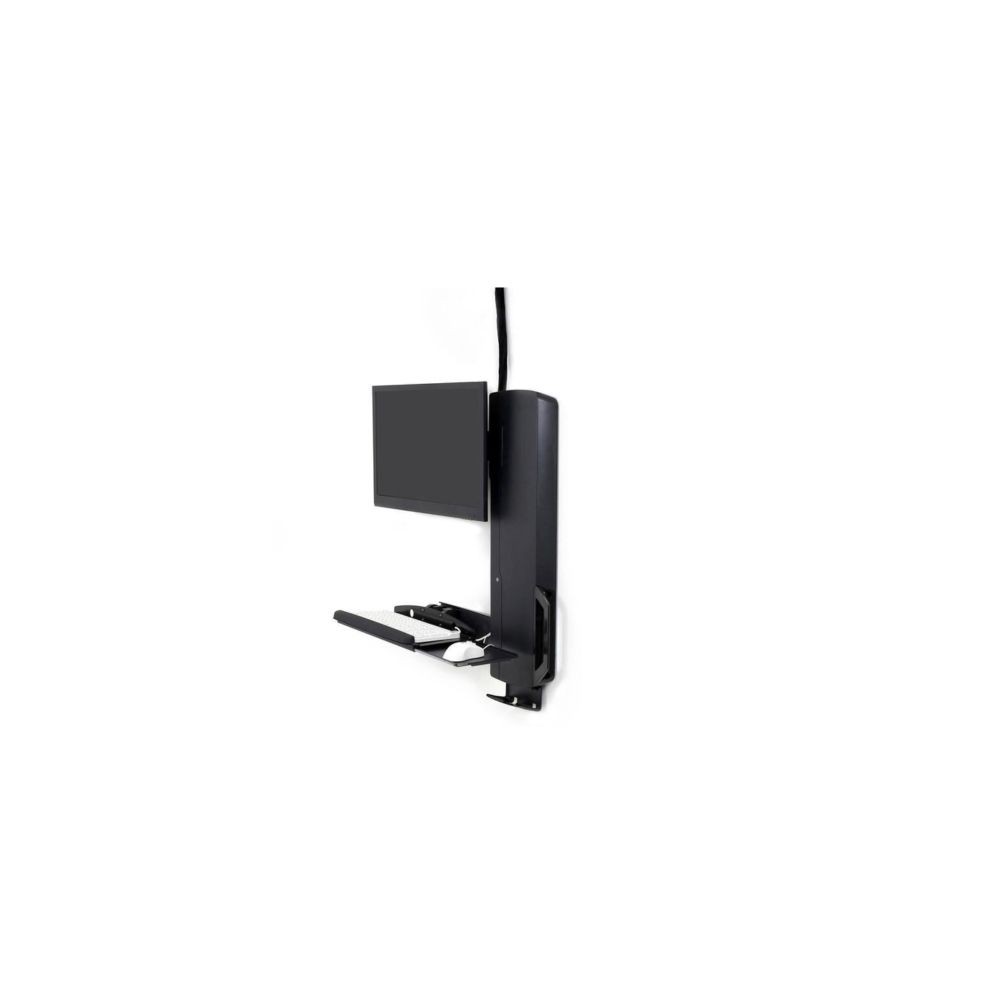

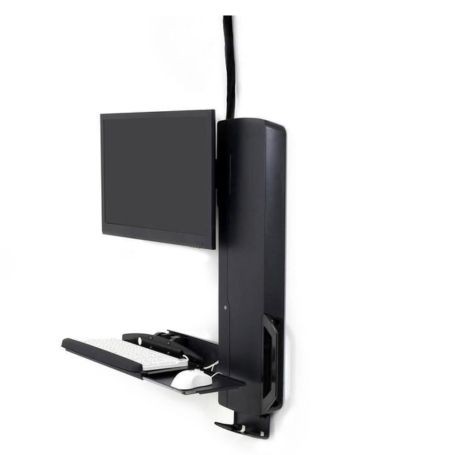

The Ergotron StyleView Sit-Stand Vertical Lift, High-Traffic Area (61-081-085), is a compact workstation designed for busy clinical environments, corridors, and other space-constrained locations. Its black, low-profile design integrates a monitor mount, keyboard tray, and mouse workspace to help users access computer systems while preserving valuable room space.
Sit-Stand Height Adjustment
The integrated vertical lift provides up to 18 inches (45.7 cm) of height adjustment, allowing the workstation to accommodate different users and working positions. Ergotron Constant Force technology supports smooth height adjustment while helping maintain touchscreen stability.
Space-Saving Auto-Retracting Keyboard
The auto-retracting keyboard tray returns to its storage position when not in use, reducing the workstation's projection from the wall. With the keyboard folded away, the overall system depth is approximately 4 inches (10.2 cm), making this model suitable for locations where minimizing obstructions is important.
Monitor Adjustment and Compatibility
The monitor mount supports compatible displays up to 24 inches, subject to weight and mounting requirements. The monitor can tilt to help adjust the viewing angle. The supported VESA MIS-D mounting patterns are 75 x 75 mm and 100 x 100 mm.
The workstation supports a total load of 5–30 lb (2.3–13.6 kg), including the monitor and items placed on the keyboard tray. The maximum monitor weight is 25 lb (11.3 kg); thicker monitors may reduce the permitted capacity.
Key Features
- 18 inches (45.7 cm) of vertical sit-stand adjustment.
- Auto-retracting keyboard tray helps minimize the stored depth.
- Compact 4-inch (10.2 cm) profile when the keyboard is folded away.
- VESA MIS-D compatibility for 75 x 75 mm and 100 x 100 mm mounting patterns.
- Integrated cable management and easy-to-clean exterior.
Integrated Workspace and Cable Management
The workstation includes a slide-out mouse tray, wrist rest, mouse pouch, and integrated mouse holder. Its cable-management system helps organize cables and can be configured on either side of the chassis. The exterior is designed for straightforward routine cleaning in demanding work environments.
Typical Applications
- Healthcare facilities and clinical work areas
- High-traffic corridors and shared workspaces
- Electronic health record access stations
- Locations requiring a compact, height-adjustable computer workstation
DC Supplies Product Note
Part number 61-081-085 identifies the black StyleView Sit-Stand Vertical Lift configured for High-Traffic Areas. Before ordering, verify the monitor's weight, thickness, and VESA mounting pattern. The total load includes the monitor and any items placed on the keyboard tray. The monitor, keyboard, and mouse should not be assumed to be included unless explicitly stated by the seller.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-081-085 |
|---|
| Product Type | Sit-stand vertical lift workstation |
|---|
| Product Series | StyleView |
|---|
| Configuration | High-Traffic Area |
|---|
| Colour | Black |
|---|
| Recommended Monitor Size | Up to 24 inches |
|---|
| Total Weight Capacity | 5–30 lb (2.3–13.6 kg), including monitor and keyboard-tray contents |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg); monitor thickness over 3 inches (7.6 cm) may reduce capacity |
|---|
| Vertical Adjustment | 18 inches (45.7 cm) |
|---|
| Tilt Range | 30 degrees total: 20 degrees forward and 10 degrees backward |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Stored System Depth | Approximately 4 inches (10.2 cm) |
|---|
| Keyboard Tray | Auto-retracting |
|---|
| Mouse Support | Slide-out mouse tray, integrated mouse holder, and mouse pouch |
|---|
| Cable Management | Integrated system configurable on either side of the chassis |
|---|
| Included Components | Sit-stand lift chassis, monitor pivot, covers, auto-retracting keyboard tray, slide-out mouse tray, wrist rest, and mouse pouch |
|---|
| Warranty | 5 years |
|---|
| EAN / UPC | 698833039054 |
|---|
Frequently Asked Questions
1. What is the Ergotron 61-081-085 designed for?
It is a sit-stand computer workstation designed for high-traffic areas where a compact, low-profile installation is important.
2. How much height adjustment does it provide?
The vertical lift provides up to 18 inches (45.7 cm) of height adjustment.
3. What is the maximum supported load?
The total supported load is 5–30 lb (2.3–13.6 kg), including the monitor and items on the keyboard tray. The monitor itself must not exceed 25 lb (11.3 kg).
4. Which monitor mounting patterns are supported?
The workstation supports VESA MIS-D patterns measuring 75 x 75 mm or 100 x 100 mm.
5. How much space does it occupy when stored?
With the keyboard tray retracted, the workstation has a depth of approximately 4 inches (10.2 cm).
6. What is included with the workstation?
The listed components include the lift chassis, monitor pivot, covers, auto-retracting keyboard tray, slide-out mouse tray, wrist rest, and mouse pouch. Confirm separately whether the monitor, keyboard, and mouse are supplied.
