Overview

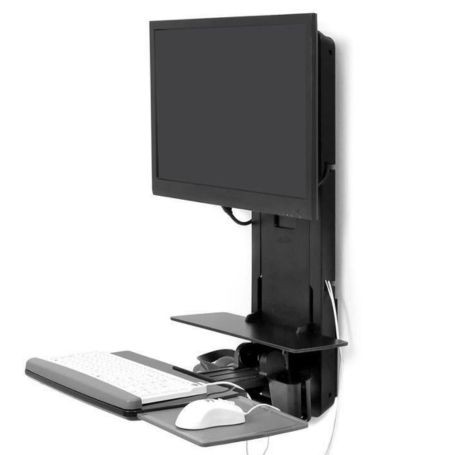

The Ergotron StyleView Sit-Stand Vertical Lift, Patient Room (61-080-085), is a compact workstation designed for healthcare environments where space efficiency and ergonomic access are important. This black workstation brings the monitor, keyboard, mouse, and barcode scanner into one integrated setup, helping caregivers access information while interacting with patients.
Sit-Stand Height Adjustment
The integrated vertical lift provides up to 18 inches (45.7 cm) of height adjustment, allowing the workstation to accommodate users of different heights and seated or standing work positions. Ergotron Constant Force technology supports smooth adjustment while helping maintain touchscreen stability.
Integrated Keyboard and Mouse Workspace
The workstation includes a retractable keyboard tray and a slide-out mouse tray. The keyboard tray features a back-tilt adjustment of up to 10 degrees to support a more comfortable typing position. The keyboard and monitor can pan from side to side, helping caregivers orient the workstation toward patients during clinical interactions.
The keyboard tray extends outward by up to 5 inches (12.7 cm) when in use. When folded away, the workstation has a compact overall depth of approximately 6 inches (15.2 cm).
Monitor and Equipment Compatibility
The workstation is designed for a single compatible LCD monitor, typically up to 24 inches. It supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm. The total supported load includes the monitor and items placed on the keyboard tray, so both the overall capacity and monitor-specific limit must be checked before installation.
Key Features
- 18 inches (45.7 cm) of sit-stand height adjustment.
- Integrated monitor mount with tilt and side-to-side positioning.
- Retractable keyboard tray with adjustable back tilt and slide-out mouse tray.
- Integrated barcode scanner holder and mouse storage pouch.
- Compact 6-inch (15.2 cm) depth when the keyboard is folded away.
Cable Management and Cleaning
The integrated cable-management system helps organize and conceal cables. Its exterior is designed to simplify routine cleaning, making the workstation suitable for clinical spaces where equipment organization and maintenance are important.
Typical Applications
- Patient rooms and clinical care areas
- Electronic health record access
- Healthcare workstations using barcode scanners
- Compact clinical spaces requiring flexible working heights
DC Supplies Product Note
Before ordering, confirm monitor weight, monitor dimensions, VESA mounting pattern, and the total load placed on the workstation. This model is the black Patient Room configuration, part number 61-080-085. It is different from the StyleView High Traffic Area configuration.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-080-085 |
|---|
| Product Type | Sit-stand vertical lift workstation |
|---|
| Product Series | StyleView |
|---|
| Configuration | Patient Room |
|---|
| Colour | Black |
|---|
| Recommended Monitor Size | Up to 24 inches |
|---|
| Total Weight Capacity | 8–33 lb (3.6–14.9 kg), subject to configuration and monitor limits |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg); monitor thickness greater than 3 inches may reduce capacity |
|---|
| Height Adjustment | 18 inches (45.7 cm) |
|---|
| Monitor Tilt | 10 degrees |
|---|
| Monitor Pan | Approximately 45 degrees left and right, depending on monitor size |
|---|
| Keyboard Tray Pan | Up to 120 degrees left and right |
|---|
| Keyboard Back Tilt | Adjustable from 0 to -10 degrees |
|---|
| Keyboard Tray Extension | Up to 5 inches (12.7 cm) |
|---|
| Folded Depth | Approximately 6 inches (15.2 cm) |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Included Components | Sit-stand lift chassis, monitor pivot, covers, shelf, retractable keyboard tray, slide-out mouse tray, wrist rest, mouse pouch, and scanner holder |
|---|
| Cable Management | Integrated cable-management system |
|---|
| Warranty | 5 years |
|---|
| UPC | 698833037654 |
|---|
Frequently Asked Questions
1. What is the Ergotron 61-080-085 designed for?
It is a compact sit-stand workstation designed for patient rooms and clinical environments, integrating a monitor, keyboard, mouse, and barcode scanner holder.
2. How much height adjustment does it provide?
The vertical lift provides up to 18 inches (45.7 cm) of height adjustment.
3. Which monitors are compatible?
It is designed for monitors typically up to 24 inches with VESA MIS-D mounting patterns of 75 x 75 mm or 100 x 100 mm. The monitor's weight and thickness must also meet the specified limits.
4. Does the workstation include a keyboard and mouse?
The workstation includes keyboard and mouse trays, a wrist rest, and a mouse pouch. The keyboard, mouse, monitor, and barcode scanner themselves should not be assumed to be included unless the seller confirms otherwise.
5. Can the monitor and keyboard move sideways?
Yes. The monitor and keyboard tray can pan from side to side to support patient-caregiver interaction.
6. What is the warranty period?
Ergotron lists a five-year warranty for this product. Confirm applicable warranty terms with the seller for your region.
