Overview

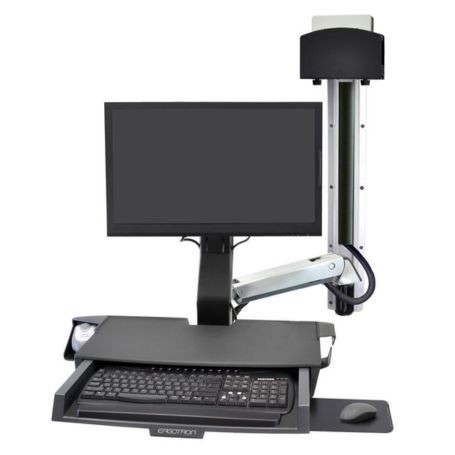

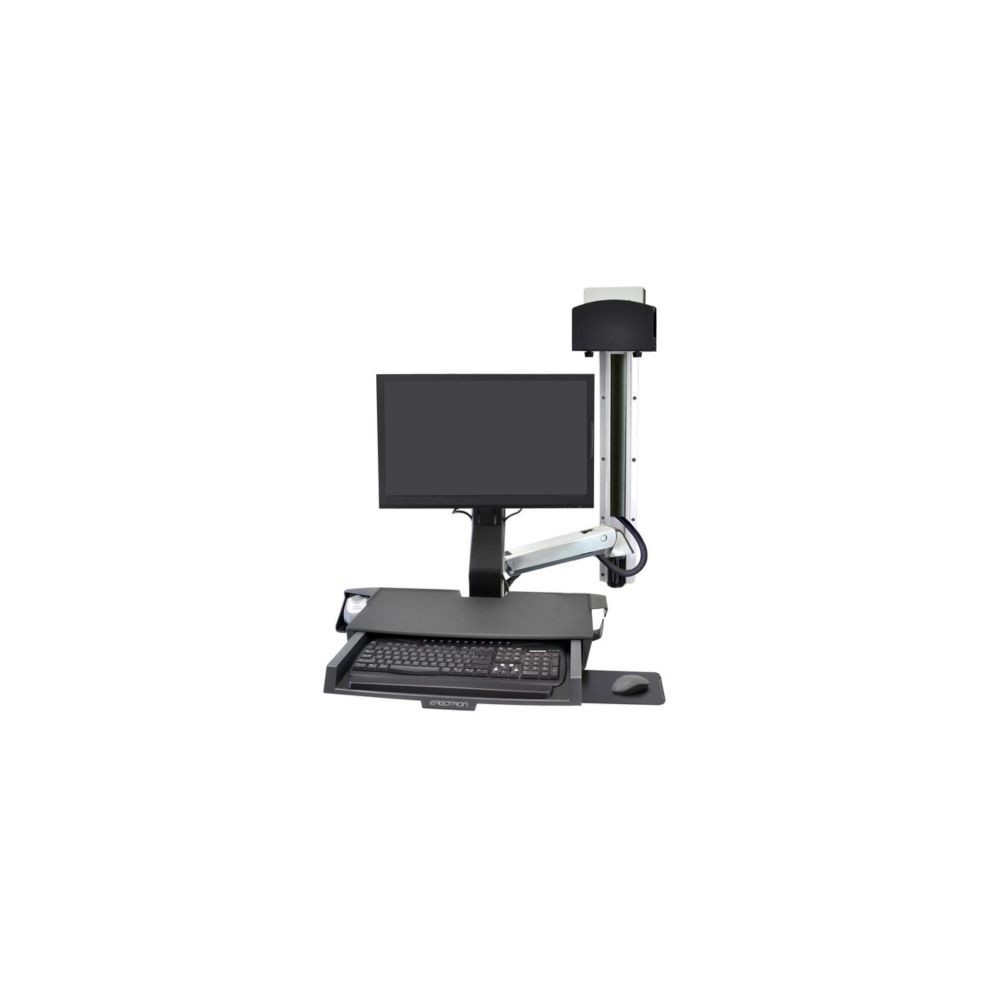

The Ergotron 45-272-026 StyleView Sit-Stand Combo System is a complete wall-mounted workstation with a polished aluminum finish, integrated worksurface, keyboard tray, monitor mount, and small CPU holder. It is designed to let the display and keyboard move together through a 20-inch height range, with an additional 5 inches of independent LCD adjustment.
Workstation Configuration
The system combines a height-adjustable display mount with an integrated keyboard tray and worksurface. The worksurface measures 22.75 inches wide by 10.6 inches deep (57.8 x 26.9 cm) and supports up to 10 lb (4.5 kg). The keyboard, mouse, and barcode scanner area supports a combined load of up to 4 lb (1.8 kg).
Monitor Support and Adjustment
The 45-272-026 accommodates displays up to 24 inches with a display weight range of 6–18 lb (2.7–8.2 kg). The LCD and keyboard can be adjusted together through 20 inches (51 cm) with a single motion, while the LCD has an additional 5 inches (13 cm) of independent height adjustment, providing a maximum 25-inch (64 cm) LCD height adjustment range.
The monitor provides 30° total tilt, with 25° upward and 5° downward movement, along with 360° pan and 90° rotation. The display mounting interface uses VESA MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
Small CPU Holder
This configuration includes a small CPU holder designed for computer enclosures approximately 1-3/8 to 3-3/4 inches (35–95 mm) wide. The 45-272-026 CPU holder supports up to 40 lb (18 kg).
Wall Mounting and Cable Management
The system includes a 34-inch wall track with track covers and mounting components for the workstation and CPU. Two 10-inch cable channels help organize cabling along the installation. The system can fold to approximately 8 inches (20.3 cm) from the wall when retracted.
Key Features
- Complete StyleView wall-mounted sit-stand workstation with worksurface
- 25-inch maximum LCD height adjustment range
- 22.75 x 10.6-inch worksurface with 10 lb capacity
- Small CPU holder supports up to 40 lb
- 360° monitor pan with 90° rotation
Applications
The StyleView Sit-Stand Combo System is configured as a wall-mounted computer workstation for environments requiring an adjustable monitor, keyboard, mouse, scanner, worksurface, and compact CPU mounting arrangement.
DC Supplies Product Note
The 45-272-026 is a complete workstation configuration that includes the wall track, worksurface, keyboard tray, and small CPU holder. For replacement or expansion planning, note that the polished aluminum 45-272-026 is distinct from the white 45-272-216 configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-272-026 |
| Product Type | StyleView Sit-Stand Combo System with Worksurface and Small CPU Holder |
| Product Family | StyleView |
| Finish | Polished aluminum |
| Maximum Display Size | 24 inches |
| Display Capacity | 6–18 lb (2.7–8.2 kg) |
| LCD Height Adjustment | 25 inches (64 cm) maximum |
| Tandem LCD/Keyboard Adjustment | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Monitor Tilt | 30° total; 25° up / 5° down |
| Monitor Pan | 360° |
| Monitor Rotation | 90° |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Worksurface Dimensions | 22.75 W x 10.6 D inches (57.8 x 26.9 cm) |
| Worksurface Capacity | 10 lb (4.5 kg) |
| Keyboard/Mouse/Scanner Capacity | 4 lb (1.8 kg) combined |
| CPU Holder | Small CPU holder |
| CPU Holder Width Range | 1-3/8 to 3-3/4 inches (35–95 mm) |
| CPU Capacity | 40 lb (18 kg) |
| Wall Track | 34 inches |
| Cable Channels | Two 10-inch channels |
| Folded Depth | Approximately 8 inches (20.3 cm) |
| Maximum Extension | 43 inches (109 cm); up to 60 inches (152 cm) with optional extender |
| Construction | Aluminum and high-grade plastic |
| Product Weight | Approximately 41 lb (19 kg) |
| Warranty | 5 years |
| UPC | 698833018189 |
Package Contents
- StyleView Sit-Stand Combo Arm with worksurface
- 34-inch wall track with two black track covers
- Small CPU holder and CPU spacer
- Two 10-inch cable channels
- CPU and arm track-mount bracket kits
- Wall-track fasteners for concrete and wood
- CPU direct wall-mount kit
- Height-adjustable LCD mount
- Wrist rest
- Scanner and mouse holders
- Integrated keyboard tray
- Slide-out mouse tray
- Handle
- VESA monitor mounting kit
- Cable ties
Frequently Asked Questions
What is the Ergotron 45-272-026?
It is a complete StyleView Sit-Stand Combo System with an integrated worksurface, keyboard tray, wall track, monitor mount, and small CPU holder.
What size monitor does it support?
The system is specified for displays up to 24 inches, with a display capacity of 6–18 lb (2.7–8.2 kg).
How much height adjustment is available?
The LCD has a maximum 25-inch (64 cm) height adjustment range, consisting of 20 inches of tandem LCD/keyboard adjustment plus 5 inches of independent LCD adjustment.
How much weight can the small CPU holder support?
The small CPU holder supplied with the 45-272-026 supports up to 40 lb (18 kg) and accommodates enclosures approximately 1-3/8 to 3-3/4 inches (35–95 mm) wide.
How large is the worksurface?
The worksurface measures 22.75 inches wide by 10.6 inches deep (57.8 x 26.9 cm) and supports up to 10 lb (4.5 kg).
Can the system be extended farther from the wall?
Yes. The standard configuration can extend up to 43 inches (109 cm), while the compatible optional 45-261-026 extender can increase the reach to up to 60 inches (152 cm).
