Overview

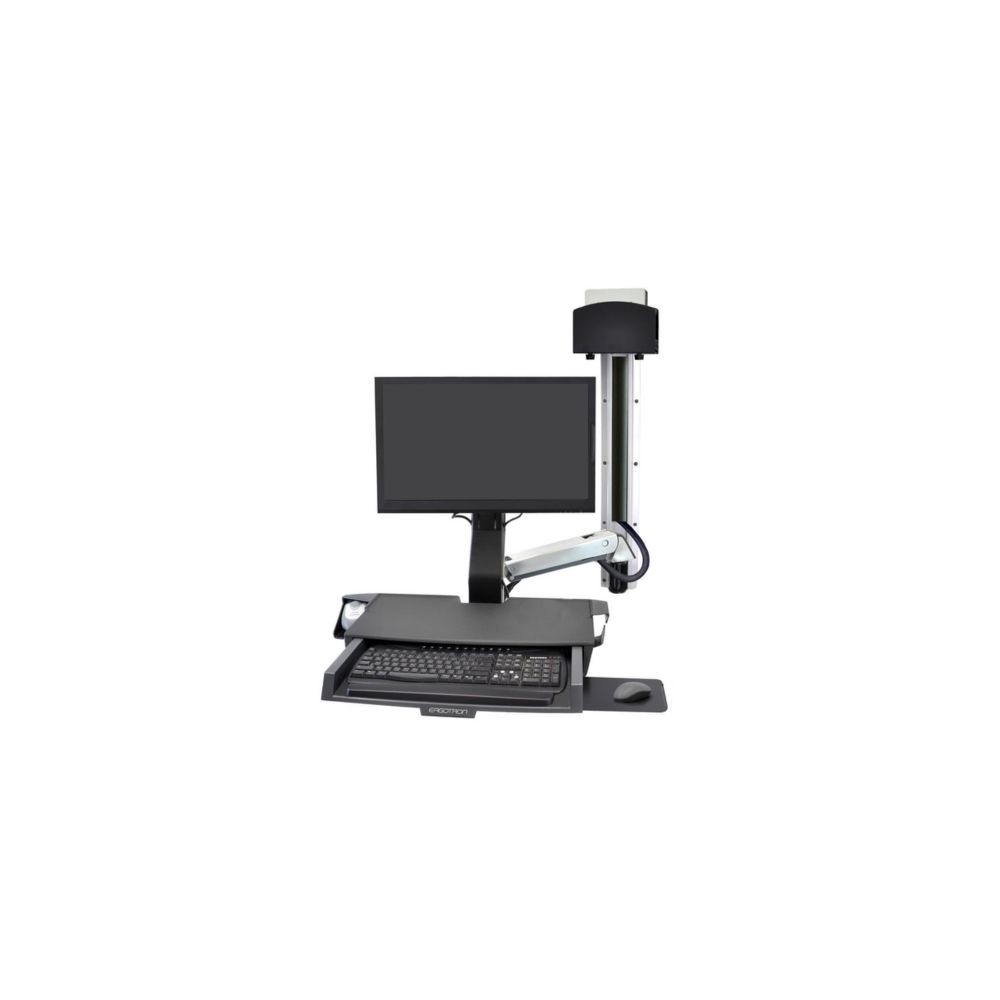

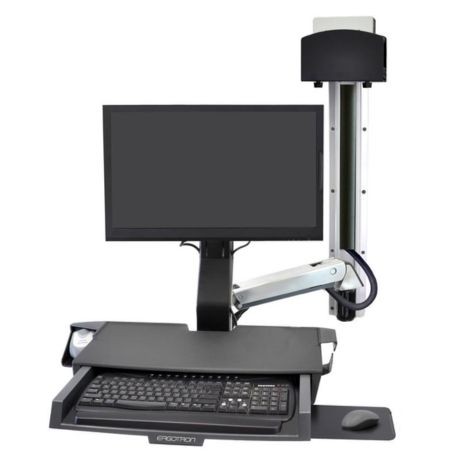

The Ergotron 45-272-216 StyleView Sit-Stand Combo System with Worksurface is a complete wall-mounted workstation designed to position a monitor, keyboard, mouse, barcode scanner, and small CPU in a single adjustable setup. The white system combines the StyleView sit-stand arm with a worksurface, integrated keyboard tray, 34-inch wall track, cable channels, and a small CPU holder.
Monitor and Sit-Stand Adjustment
The system supports a typical display size of up to 24 inches. The LCD and keyboard adjust together through a 20-inch (51 cm) single-motion range, while the LCD has an additional 5 inches (13 cm) of independent adjustment. This provides a maximum LCD height adjustment range of 25 inches (64 cm).
Display Positioning
The monitor mount provides 30° total tilt, with 25° upward and 5° downward adjustment. The arm provides 360° pan and 90° display rotation, allowing landscape or portrait positioning. The workstation folds to approximately 8 inches (20.3 cm) and can extend up to 43 inches (109 cm) from the wall. With the optional 45-261-216 extender, the maximum extension increases to 60 inches (152 cm).
Worksurface and Keyboard Area
The integrated worksurface measures approximately 22.75 inches wide by 10.6 inches deep (57.8 x 26.9 cm) and is rated for up to 10 lb (4.5 kg). The integrated keyboard tray measures approximately 18.6 inches wide by 9 inches deep (47.2 x 22.8 cm). A slide-out mouse tray provides additional input-device space.
Small CPU Holder
The 45-272-216 configuration includes a small CPU holder intended for a compact computer chassis. The holder accommodates CPUs approximately 1-3/8 to 3-3/4 inches (35–95 mm) wide and is rated for up to 40 lb (18 kg) in the StyleView system configuration.
Wall Track and Cable Management
The system includes a 34-inch wall track with black track covers, track-mount hardware, and two 10-inch cable channels. The wall track provides the mounting structure for the workstation components, while the cable channels help organize connections between the monitor, input devices, and computer.
VESA Compatibility
The height-adjustable LCD mount uses VESA FDMI MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns. A VESA monitor mounting kit is included with the system.
Key Features
- Complete wall-mounted sit-stand workstation with integrated worksurface
- 25-inch (64 cm) maximum LCD height adjustment
- 360° monitor pan and 90° landscape/portrait rotation
- 22.75 x 10.6-inch worksurface with integrated keyboard tray
- Small CPU holder with 40 lb (18 kg) rated capacity
Applications
The 45-272-216 is configured for workstation environments where a monitor, keyboard, computer, and frequently used peripherals need to remain organized on a wall-mounted platform. The sit-stand adjustment allows the monitor and keyboard to be repositioned together, while the worksurface provides additional space for workflow equipment.
DC Supplies Product Note
For installation planning, verify the computer chassis width before selecting this small-CPU-holder configuration. The 45-272-216 uses the small CPU holder, while other StyleView system configurations use different CPU-holder sizes.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-272-216 |
| Product Type | StyleView Sit-Stand Combo System with Worksurface |
| Configuration | Small CPU Holder |
| Color | White |
| Typical Display Size | Up to 24 inches |
| Display Capacity | 6–18 lb (2.7–8.2 kg) |
| Worksurface Capacity | 10 lb (4.5 kg) |
| Keyboard, Mouse & Barcode Scanner Capacity | 4 lb (1.8 kg) |
| CPU Holder Capacity | 40 lb (18 kg) |
| Tandem Height Adjustment | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| Monitor Tilt | 30° total; 25° up / 5° down |
| Monitor Pan | 360° |
| Monitor Rotation | 90° |
| Maximum Extension | 43 inches (109 cm) |
| Maximum Extension with Optional Extender | 60 inches (152 cm) |
| Folded Depth | 8 inches (20.3 cm) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Worksurface Dimensions | 22.75 W x 10.6 D inches (57.8 x 26.9 cm) |
| Keyboard Tray Dimensions | 18.6 W x 9 D inches (47.2 x 22.8 cm) |
| Small CPU Holder Width Range | 1-3/8 to 3-3/4 inches (35–95 mm) |
| Wall Track Length | 34 inches |
| Cable Channels | Two 10-inch channels |
| Product Weight | Approx. 41 lb (19 kg) |
| Warranty | 5 years |
| UPC / GTIN | 698833051674 |
Package Contents
- Sit-Stand Combo Arm with worksurface
- 34-inch wall track with two black track covers
- Small CPU holder
- CPU spacer
- Two 10-inch cable channels
- CPU and arm track-mount bracket kits
- Wall-track fasteners for concrete and wood
- CPU direct wall-mount kit
- Height-adjustable LCD mount
- Wrist rest
- Scanner and mouse holders
- Integrated keyboard tray
- Slide-out mouse tray
- Handle
- VESA monitor mounting kit
- Cable ties
FAQs
What is the Ergotron 45-272-216?
It is a complete StyleView Sit-Stand Combo System with an integrated worksurface, 34-inch wall track, and small CPU holder in white.
What monitor size does it support?
The specified typical display size is up to 24 inches, with a display capacity of 6–18 lb (2.7–8.2 kg).
How much height adjustment does the workstation provide?
The LCD and keyboard adjust together through 20 inches, with an additional 5 inches of independent LCD adjustment, providing up to 25 inches of total LCD height adjustment.
What size CPU does the included holder accommodate?
The small CPU holder accommodates chassis approximately 1-3/8 to 3-3/4 inches (35–95 mm) wide.
What are the worksurface dimensions?
The worksurface measures approximately 22.75 inches wide by 10.6 inches deep.
Can the system be extended farther from the wall?
The standard system extends up to 43 inches (109 cm). The optional 45-261-216 extender can increase maximum extension to 60 inches (152 cm).
