Overview

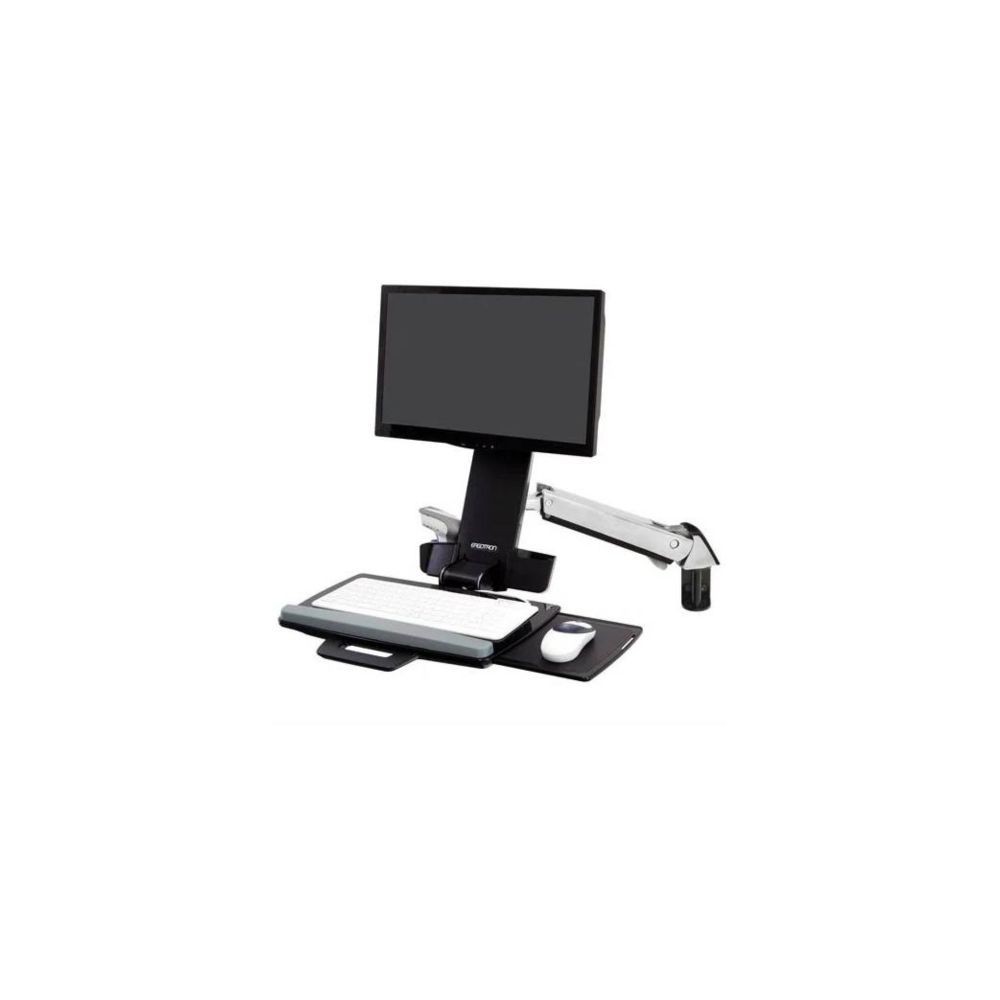

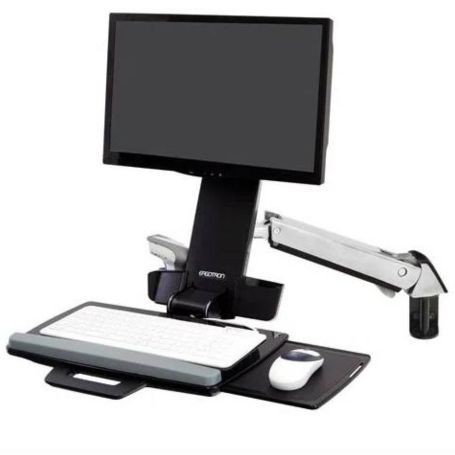

The Ergotron 45-266-026 StyleView Sit-Stand Combo Arm is a wall-mounted workstation arm that combines monitor and keyboard positioning in one adjustable assembly. It is designed to support a monitor, keyboard, mouse, barcode scanner, and wrist rest while allowing the user to adjust the workstation for seated or standing use.
Monitor and Workstation Support
The arm supports displays up to 24 inches. The standard display capacity is 6–18 lb (2.7–8.2 kg). The display can be configured for loads up to 25 lb (11.4 kg) when the tilt and lift lock-out features are engaged. The keyboard, mouse, and barcode scanner have a combined rated capacity of 4 lb (1.8 kg).
Sit-Stand Adjustment
The monitor and keyboard can be adjusted together through a 20-inch (51 cm) single-motion height range. The display also provides an independent 5-inch (13 cm) height adjustment, giving a maximum LCD height adjustment range of 25 inches (64 cm).
Display Positioning
The display provides 30° total tilt, with 25° upward and 5° downward adjustment, together with 360° pan and 360° rotation. The arm can extend up to 39.75 inches (101 cm) from the wall and can fold back to approximately 12 inches (30.5 cm).
Keyboard and Accessory Workspace
The integrated workstation includes a keyboard tray with left/right mouse tray, wrist rest, barcode scanner holder, mouse holder, and handle. These components keep commonly used input devices positioned with the monitor on the same height-adjustable arm.
VESA Compatibility
The 45-266-026 uses VESA FDMI MIS-D mounting with 75 x 75 mm and 100 x 100 mm mounting patterns. A height-adjustable LCD mount is included as part of the arm assembly.
Wall Mounting and Cable Management
The Combo Arm includes a wall mount bracket and track-mount bracket kit for installation. Integrated cable management helps organize cables along the workstation arm. The arm can be paired with the optional 45-261-026 extender when additional reach is required.
Key Features
- Supports displays up to 24 inches
- 20-inch shared sit-stand adjustment plus 5-inch independent display adjustment
- 360° pan and 360° monitor rotation
- Integrated keyboard, mouse, wrist-rest, and barcode-scanner workspace
- Up to 39.75 inches of extension from the wall
Applications
The 45-266-026 is designed for wall-mounted workstation environments where monitor and keyboard equipment needs to move between seated and standing positions. Its integrated accessory holders and adjustable display position make it suitable for workflow areas requiring frequent access to a monitor and input devices.
DC Supplies Product Note
When specifying this exact configuration, distinguish it from the StyleView Combo Arm with worksurface and from the complete Combo Systems. The 45-266-026 is the standalone Combo Arm configuration and does not represent the complete wall-track system.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-266-026 |
| Product Type | StyleView Sit-Stand Combo Arm |
| Finish | Polished Aluminum |
| Display Configuration | Single monitor |
| Maximum Display Size | 24 inches |
| Standard Display Capacity | 6–18 lb (2.7–8.2 kg) |
| Maximum Display Capacity | 25 lb (11.4 kg) with tilt and lift lock-out engaged |
| Shared Height Adjustment | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| Display Tilt | 30° total; 25° up / 5° down |
| Pan | 360° |
| Rotation | 360° |
| Maximum Extension | 39.75 inches (101 cm) |
| Folded Depth | Approximately 12 inches (30.5 cm) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Keyboard / Mouse / Scanner Capacity | 4 lb (1.8 kg) |
| Mounting Type | Wall mount |
| Cable Management | Integrated |
| Optional Extender | 45-261-026 |
| Warranty | 5 years |
| GTIN / UPC | 00698833016369 |
Package Contents
- StyleView Sit-Stand Combo Arm
- Wall mount bracket
- Track-mount bracket kit
- Height-adjustable LCD mount
- Keyboard tray with left/right mouse tray
- Wrist rest
- Barcode scanner holder
- Mouse holder
- Handle
- VESA monitor mounting kit
- Cable ties
FAQs
What display size does the 45-266-026 support?
The StyleView Sit-Stand Combo Arm is specified for displays up to 24 inches.
What is the monitor weight capacity?
The standard capacity is 6–18 lb (2.7–8.2 kg). Displays up to 25 lb (11.4 kg) can be accommodated when the tilt and lift lock-out features are engaged.
How much height adjustment is available?
The monitor and keyboard move together through 20 inches (51 cm), with an additional 5 inches (13 cm) of independent LCD adjustment.
Which VESA patterns are supported?
The LCD mount supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
Does this model include a keyboard tray?
Yes. The 45-266-026 includes an integrated keyboard tray with left/right mouse tray, along with a wrist rest, barcode scanner holder, and mouse holder.
Can the arm be extended farther?
Yes. The optional Ergotron 45-261-026 extender can add additional reach to the compatible StyleView Sit-Stand Combo Arm.
