The Ergotron 45-261-216 StyleView Sit-Stand Combo Extender is a white extension arm designed for compatible Ergotron StyleView Sit-Stand Combo workstation configurations. It adds a third pivot point and up to 17 inches (43 cm) of additional reach, providing greater positioning flexibility for the attached workstation arm.
Overview
The 45-261-216 is an accessory rather than a standalone monitor arm. It extends compatible StyleView Sit-Stand Combo arms and replaces the vertical mount base when installed. The extender is designed for healthcare workstation environments and incorporates an integrated cable-management channel.
Extended Reach
The extender adds 17 inches (43 cm) of extension from the wall. Its additional pivot point allows a compatible StyleView workstation arm to reach farther while providing another point of adjustment.
Compatibility
The exact 45-261-216 is compatible with Ergotron StyleView Sit-Stand Combo configurations using part numbers 45-260-216, 45-266-216, 45-270-216, 45-271-216, 45-272-216, and 45-273-216. It can also be attached to a Command Post using two 60-154-100 brackets.
Installation Configuration
When installed as an extender, the 45-261-216 replaces the vertical mount base and uses wall-track mounting brackets. It is intended to be integrated into a compatible StyleView system rather than used as an independent display mount.
Cable Management
A cable-management channel snap-fits underneath the extender arm, helping route cables along the extension. The exterior uses aluminum and high-grade plastic components with an easy-to-clean surface.
Key Features
- Adds 17 inches (43 cm) of additional reach
- Provides a third pivot point for increased positioning flexibility
- Compatible with specified StyleView Sit-Stand Combo arms
- Integrated cable-management channel
- White finish with aluminum and high-grade plastic construction
Applications
The 45-261-216 is intended for extending compatible StyleView Sit-Stand Combo workstation arms where additional reach from the wall is required. Its third pivot point can provide greater flexibility when positioning the workstation.
DC Supplies Product Note
Confirm the existing StyleView arm's part number before ordering. The 45-261-216 has a defined compatibility list and is an extension accessory, not a standalone workstation or monitor mount.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-261-216 |
| Product Type | StyleView Sit-Stand Combo Extender |
| Product Family | StyleView |
| Color | White |
| Extension Length | 17 inches (43 cm) |
| Pivot Points Added | Third pivot point |
| Pan | 180° |
| Compatible Arms | 45-260-216, 45-266-216, 45-270-216, 45-271-216, 45-272-216, 45-273-216 |
| Command Post Compatibility | Yes, with two 60-154-100 brackets |
| Mounting | Wall-track mounting brackets |
| Cable Management | Integrated snap-fit channel |
| Construction | Aluminum and high-grade plastic |
| Product Weight | 9 lb (4 kg) |
| Warranty | 5 years |
| GTIN | 00698833051612 |
Package Contents

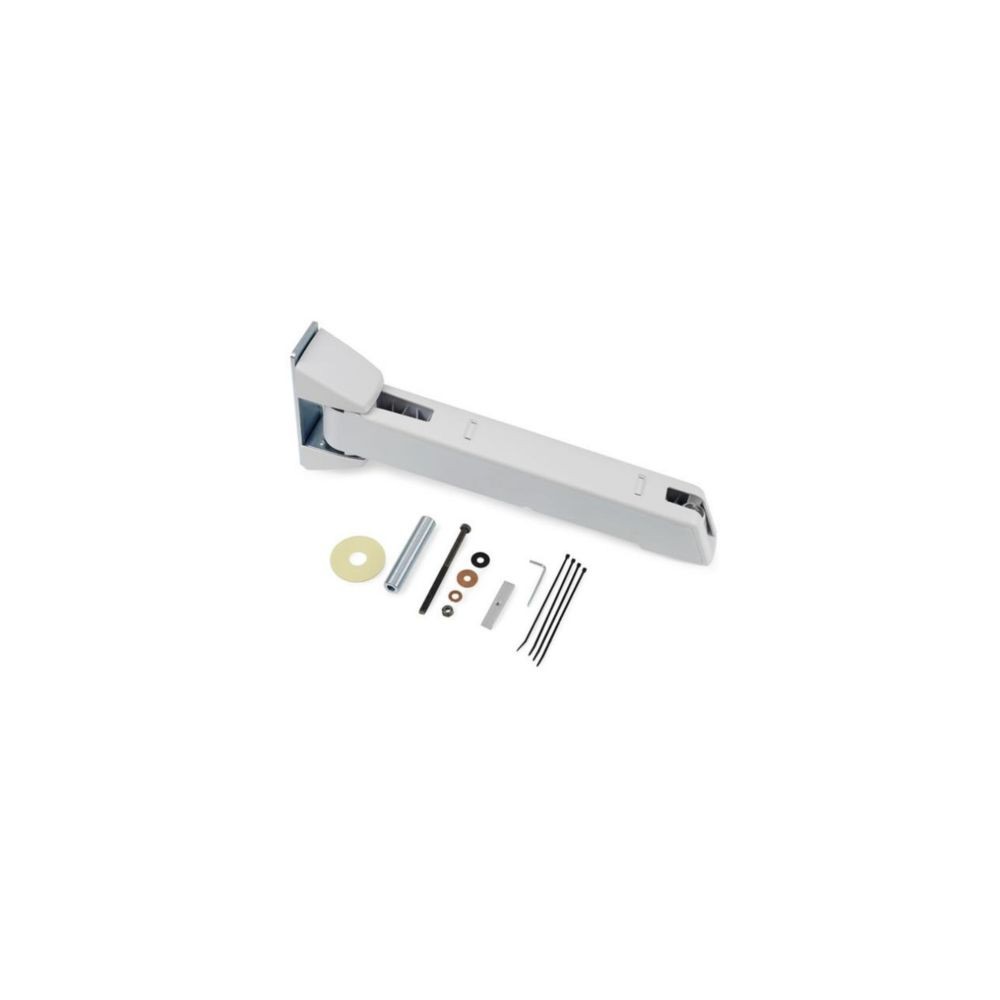

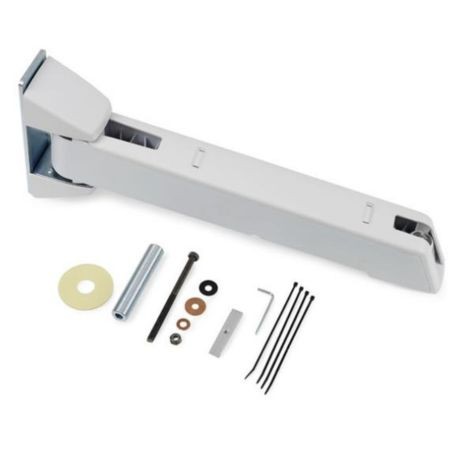

The 45-261-216 includes the extender arm, pivot covers, wall-track mounting brackets, and attachment hardware.
FAQs
What does the Ergotron 45-261-216 do?
It extends a compatible StyleView Sit-Stand Combo workstation arm by 17 inches (43 cm) and adds a third pivot point.
Is the 45-261-216 a standalone monitor arm?
No. It is an extender accessory designed for compatible StyleView Sit-Stand Combo arms.
Which StyleView arms are compatible?
It is compatible with 45-260-216, 45-266-216, 45-270-216, 45-271-216, 45-272-216, and 45-273-216 configurations.
How much additional reach does it provide?
The extender adds 17 inches (43 cm) of reach from the wall.
Does it provide cable management?
Yes. A cable-management channel snap-fits underneath the arm.
Can it be attached to a Command Post?
Yes. Ergotron specifies that the extender can attach to a Command Post using two 60-154-100 brackets.
