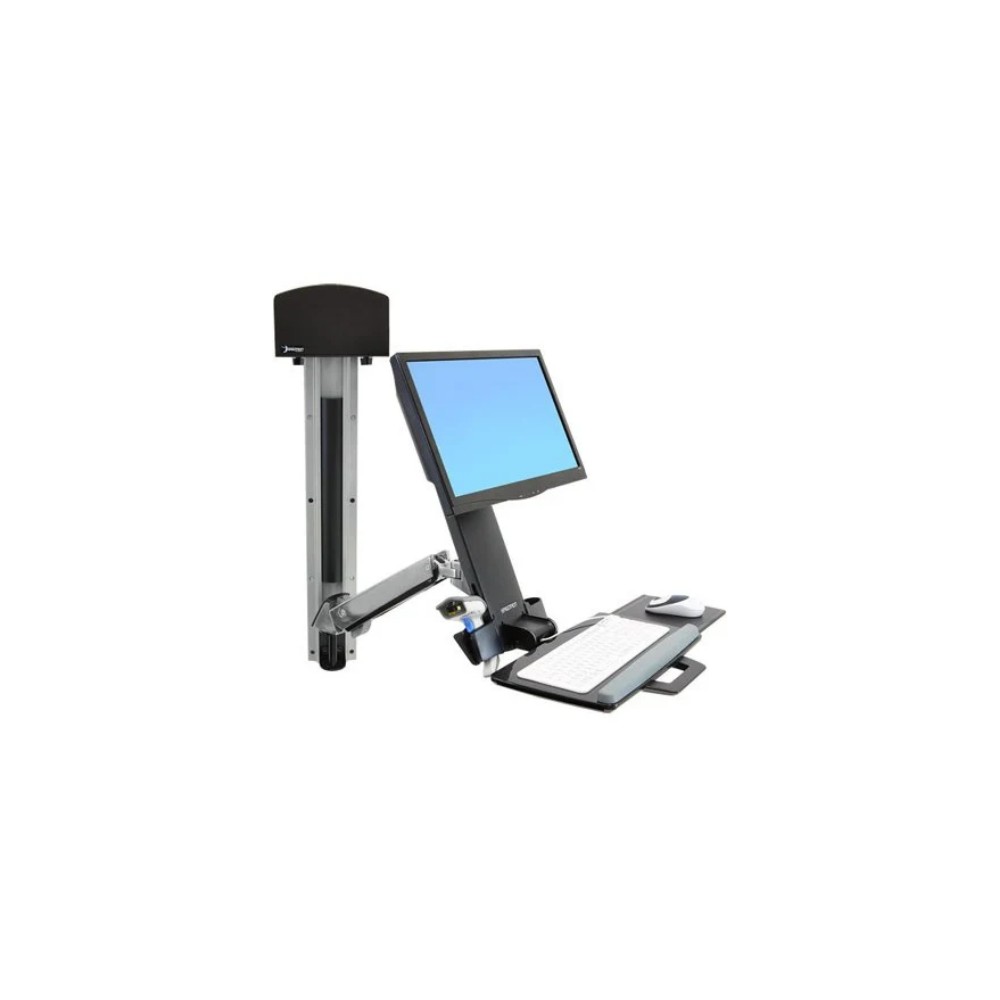

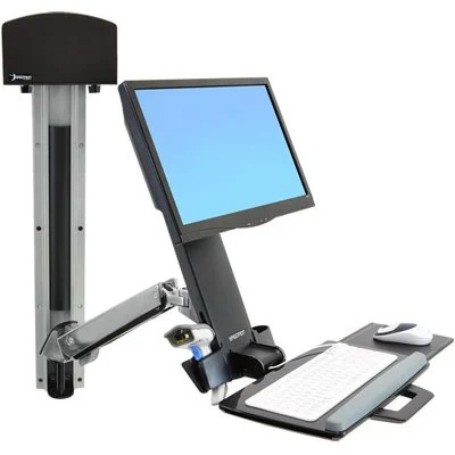

Ergotron 45-273-026 – StyleView Sit-Stand Combo System with Small CPU Holder
Overview
The Ergotron 45-273-026 is a StyleView Sit-Stand Combo System configured with a small CPU holder and wall track. The wall-mounted workstation combines a height-adjustable monitor arm, keyboard tray, mouse and barcode scanner holders, wrist rest, cable management, and CPU support for clinical and professional computing environments.
Technical Information
The LCD and keyboard adjust together through 20 inches (51 cm) in a single motion, with an additional 5 inches (13 cm) of independent LCD adjustment for a maximum LCD height adjustment of 25 inches (64 cm). The LCD mount provides 30° tilt, 360° pan, and 360° rotation. The workstation uses polished aluminum construction with high-grade plastic components and concealed cable routing.
Compatibility
The 45-273-026 supports one display up to 24 inches using VESA MIS-D mounting with 75 x 75 mm or 100 x 100 mm hole patterns. The small CPU holder accommodates CPUs 1-3/8 to 3-3/4 inches (35–95 mm) wide and supports up to 50 lb (22.7 kg). The system installs on the included 34-inch wall track and can be mounted using the supplied hardware for suitable concrete and wood surfaces.
Key Features
- StyleView wall-mounted sit-stand workstation with small CPU holder
- 25-inch (64 cm) maximum LCD height adjustment
- Supports one display up to 24 inches with VESA MIS-D mounting
- Small CPU holder supports equipment up to 50 lb (22.7 kg)
- Integrated keyboard tray, scanner and mouse holders, wrist rest, and cable management
Applications
The 45-273-026 is designed for healthcare, clinical documentation, and other professional environments requiring a wall-mounted computer workstation that supports both seated and standing workflows. The integrated monitor, keyboard, scanner, mouse, and CPU mounting arrangement keeps commonly used equipment positioned together.
DC Supplies Product Note
Confirm the CPU width and display mounting pattern before deployment. The 45-273-026 is specifically the StyleView Sit-Stand Combo System with the small CPU holder; the closely related 45-271-026 uses the medium CPU-holder configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-273-026 |
| Product Type | Wall-Mounted Sit-Stand Workstation |
| Product Series | StyleView |
| Configuration | Sit-Stand Combo System with Small CPU Holder |
| Finish | Polished Aluminum |
| Maximum Display Size | 24 inches |
| Display Capacity | 6–18 lb (2.7–8.2 kg); up to 25 lb (11.4 kg) with tilt and lift lock-out engaged |
| Keyboard, Mouse and Scanner Capacity | 4 lb (1.8 kg) |
| CPU Capacity | 50 lb (22.7 kg) |
| CPU Width Range | 1-3/8 to 3-3/4 inches (35–95 mm) |
| Tandem LCD and Keyboard Lift | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| LCD Tilt | 30° |
| LCD Pan | 360° |
| LCD Rotation | 360° |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Keyboard Tray Dimensions | 18.6 x 9 inches (47.2 x 22.8 cm) |
| Wall Track | 34 inches |
| Maximum Horizontal Extension | 39.75 inches (101 cm) |
| Product Weight | 36.8 lb (16.7 kg) |
| Warranty | 5 years |
FAQs
What is the Ergotron 45-273-026?
It is a StyleView Sit-Stand Combo System with a small CPU holder and wall track for mounting a monitor, keyboard, mouse, barcode scanner, and computer in a height-adjustable workstation.
What size monitor does the 45-273-026 support?
The system supports a display up to 24 inches and uses VESA MIS-D mounting with 75 x 75 mm and 100 x 100 mm patterns.
What CPU size does the small holder accommodate?
The included small CPU holder accommodates equipment 1-3/8 to 3-3/4 inches (35–95 mm) wide and supports up to 50 lb (22.7 kg).
How much height adjustment is available?
The LCD and keyboard move together through 20 inches (51 cm), with another 5 inches (13 cm) of independent LCD adjustment, providing up to 25 inches (64 cm) of LCD height adjustment.
What type of mounting does the system use?
The 45-273-026 installs on its included 34-inch wall track using the appropriate supplied mounting hardware for compatible wall surfaces.
