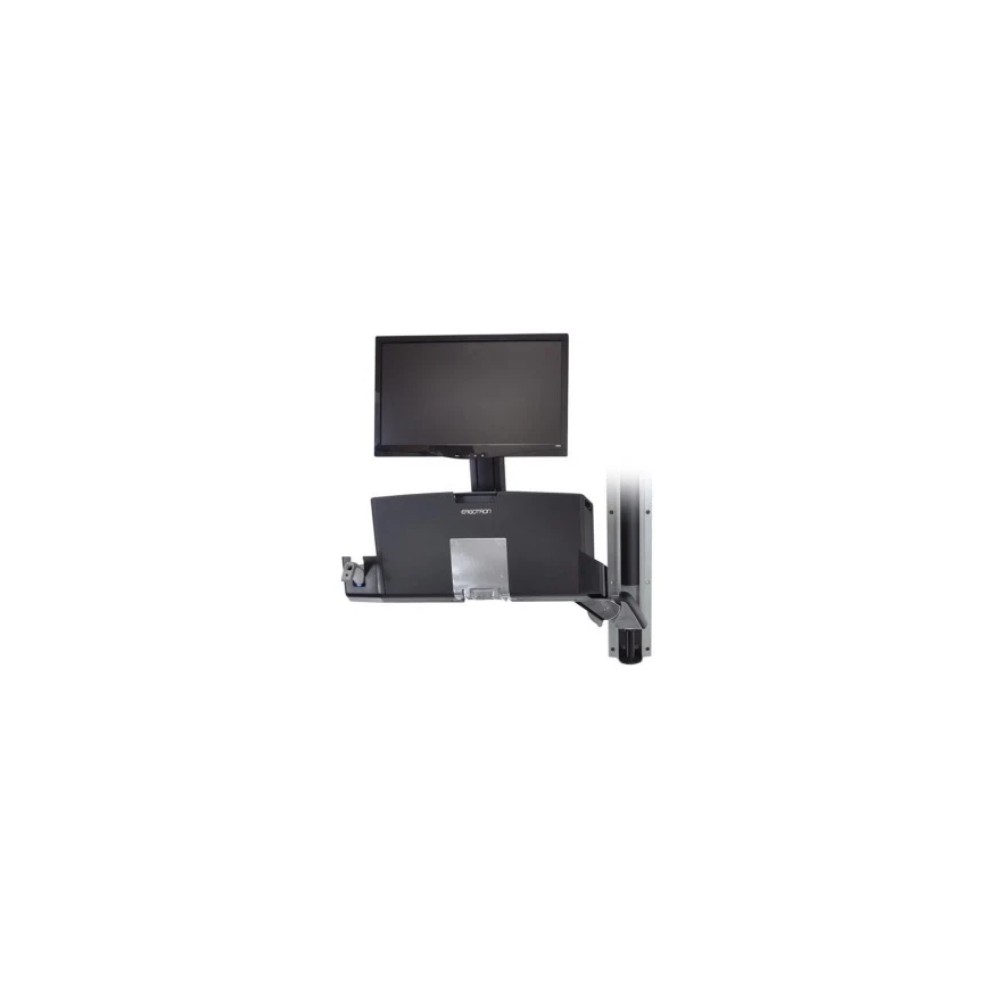

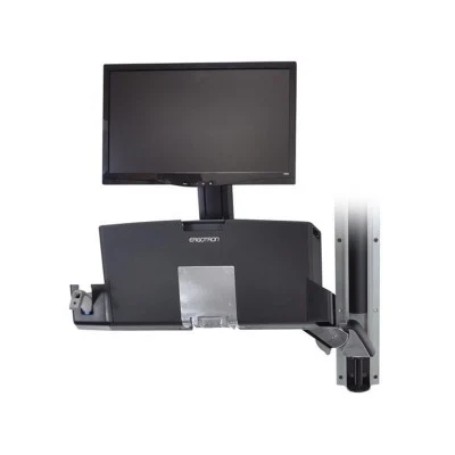

Ergotron 45-260-026 – StyleView Sit-Stand Combo Arm with Worksurface
Overview
The Ergotron 45-260-026 is a StyleView Sit-Stand Combo Arm with an integrated worksurface and keyboard tray. Designed for clinical and professional computing environments, the arm supports a monitor, keyboard, mouse, barcode scanner, and wrist rest on a single adjustable assembly, allowing the workstation to move between seated and standing positions.
Technical Information
The LCD and keyboard adjust together through 20 inches (51 cm) in a single motion, with an additional 5 inches (13 cm) of independent LCD adjustment for a maximum LCD height adjustment of 25 inches (64 cm). The LCD mount provides 30° tilt, 360° pan, and 90° portrait-to-landscape rotation. The arm extends up to 43 inches (109 cm) from the wall and folds back when not in use.
Compatibility
The 45-260-026 supports one LCD up to 24 inches with VESA MIS-D mounting, including 75 x 75 mm and 100 x 100 mm hole patterns. The display load capacity is 6–18 lb (2.7–8.2 kg). The keyboard, mouse, and barcode scanner have a combined capacity of up to 4 lb (1.8 kg), while the worksurface supports up to 10 lb (4.5 kg).
Key Features
- StyleView sit-stand combo arm with integrated worksurface
- 25-inch (64 cm) maximum LCD height adjustment
- Supports one LCD up to 24 inches and 18 lb (8.2 kg)
- 360° pan, 90° portrait-to-landscape rotation, and 30° tilt
- Integrated cable management with scanner, mouse, wrist-rest, and keyboard support
Applications
The 45-260-026 is suited to healthcare workstations, clinical documentation areas, point-of-care computing, and other environments where a monitor and data-entry equipment must remain accessible while users alternate between seated and standing positions.
DC Supplies Product Note
Verify the display weight and VESA pattern before deployment. The 45-260-026 is the polished aluminum StyleView configuration with a worksurface; it is distinct from the related StyleView combo-arm variants that omit the worksurface or add a wall track and CPU holder.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-260-026 |
| Product Type | Multi-Component Sit-Stand Mount |
| Product Series | StyleView |
| Finish | Polished Aluminum |
| Display Configuration | Single LCD |
| Maximum Display Size | 24 inches |
| Display Load Capacity | 6–18 lb (2.7–8.2 kg) |
| Keyboard, Mouse and Scanner Capacity | Up to 4 lb (1.8 kg) |
| Worksurface Capacity | Up to 10 lb (4.5 kg) |
| Tandem Lift Adjustment | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| LCD Tilt | 30° |
| LCD Pan | 360° |
| LCD Rotation | 90° portrait/landscape |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Worksurface Dimensions | 22.75 x 10.6 inches (57.8 x 26.9 cm) |
| Keyboard Tray Dimensions | 18.6 x 9 inches (47.2 x 22.9 cm) |
| Maximum Extension | 43 inches (109 cm) |
| Folded Depth | 8 inches (20.3 cm) |
| Cable Management | Integrated |
| Warranty | 5 years |
FAQs
What is the Ergotron 45-260-026?
It is a StyleView Sit-Stand Combo Arm with an integrated worksurface and keyboard tray for monitor and computer input equipment.
What size display does it support?
The 45-260-026 supports one LCD up to 24 inches, with a display load capacity of 6–18 lb (2.7–8.2 kg).
How much height adjustment is available?
The LCD and keyboard move together through 20 inches (51 cm), with another 5 inches (13 cm) of independent LCD adjustment, providing a maximum LCD height adjustment of 25 inches (64 cm).
Which VESA mounting patterns are supported?
The LCD mount uses VESA MIS-D mounting and supports 75 x 75 mm and 100 x 100 mm hole patterns.
Does the 45-260-026 include a CPU holder or wall track?
No. The 45-260-026 is the StyleView combo arm with worksurface. CPU holder and wall-track configurations use separate Ergotron part numbers.
