Detailed Specifications

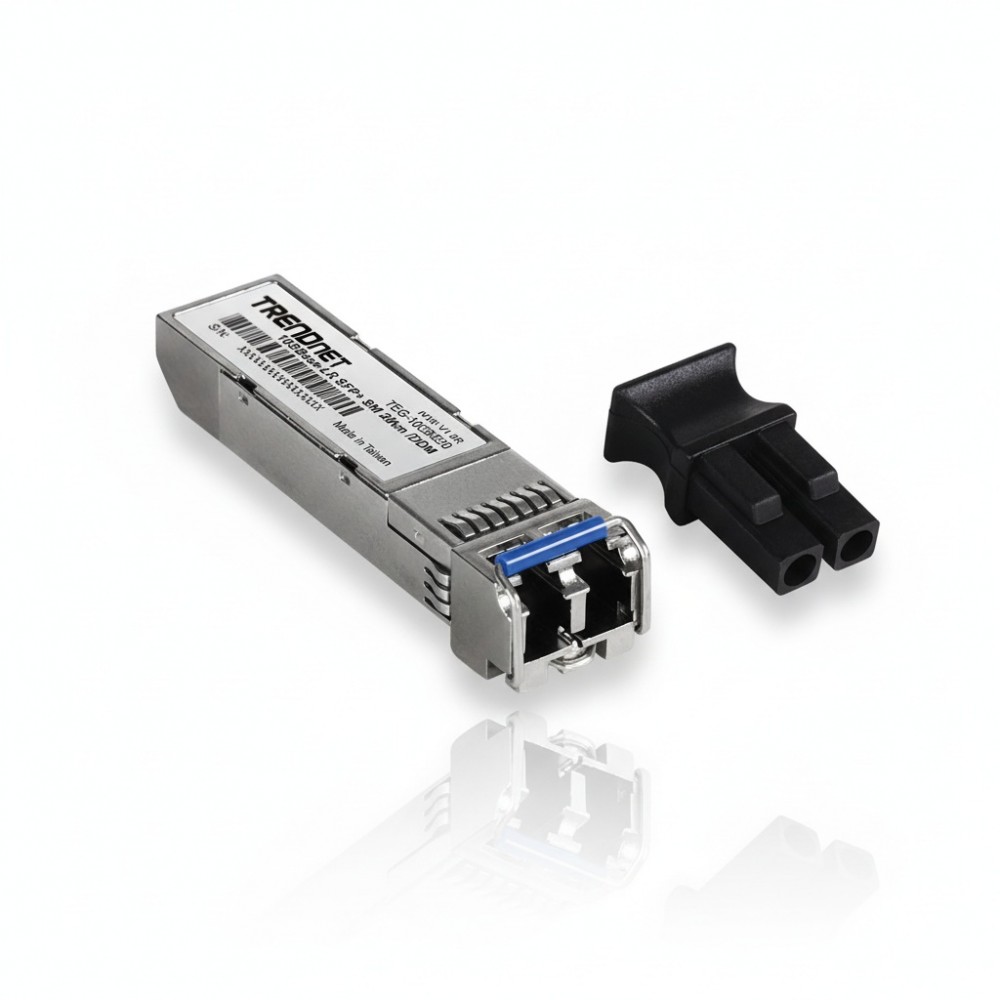

TRENDnet TEG-10GBS20 - 10G SFP+ Single-Mode Transceiver
Overview (H3)
The TRENDnet TEG-10GBS20 is a 10 Gigabit SFP+ transceiver designed for long-range single-mode fiber links. Engineers use it to bridge network devices over campus backbones, data centers, or industrial sites that require reliable, high-speed optical connectivity. The module supports data rates up to 10.31 Gbps, making it suitable for high-throughput applications such as storage networks, core switch interconnects, and video distribution. It supports a duplex LC connector and operates at a 1310 nm wavelength, enabling single-mode fiber transmission over distances up to 20 km. Due to its hot-pluggable SFP+ form factor and MSA compliance, it integrates smoothly with standard 10 G SFP+ slots on switches, routers or media converters. This transceiver includes Digital Diagnostics Monitoring (DDM), allowing real-time monitoring of parameters like temperature, optical power, and voltage. The low-power design (max 0.8 W) and durable metal housing make it a stable choice for deployments where both performance and power efficiency are critical.
Key Features (H3)
Supports 10 Gbps data rate over fiber
Duplex LC single-mode interface
Transmission range up to 20 km
Hot-pluggable SFP+ MSA-compliant design
Built-in Digital Diagnostics Monitoring (DDM)
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TEG-10GBS20 |
| Product Type | 10G SFP+ Transceiver |
| Maximum Data Rate | 10.31 Gbps |
| Wavelength | 1310 nm |
| Fiber Mode | Single-mode |
| Connector | LC duplex |
| Maximum Distance | 20 km (12.42 mi) |
| Interface Standard | IEEE 802.3ae (10GBASE-LR) |
| Power Consumption | Max 0.8 W |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Sensitivity | -15 dBm |
| Optical Output Power | -5 to +1 dBm |
| Dimensions | 2.2 × 0.5 × 0.5 in (58 × 13.4 × 12.6 mm) |
| Weight | 0.63 oz (18 g) |
| Special Features | Hot-pluggable, Metal enclosure, DDM support |
| Certifications | CE, FCC |
| Warranty | Lifetime (TRENDnet) |
