Overview

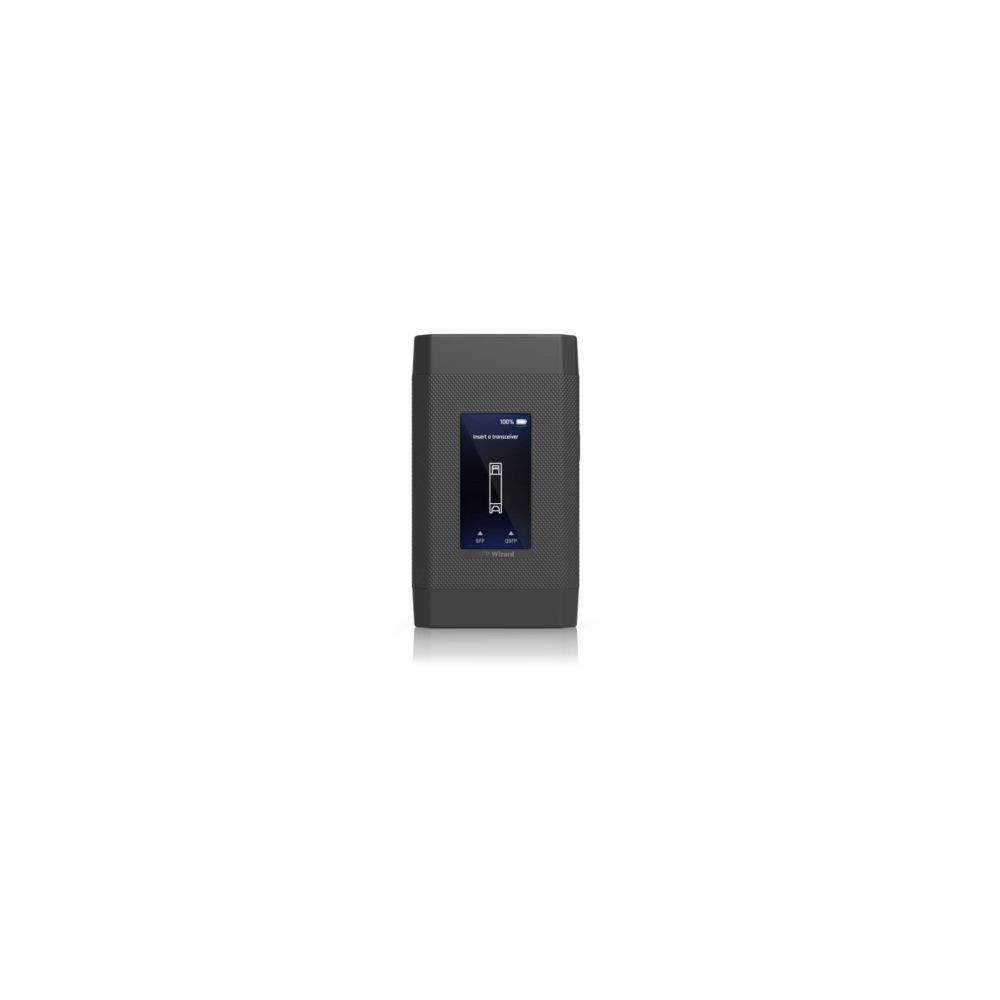

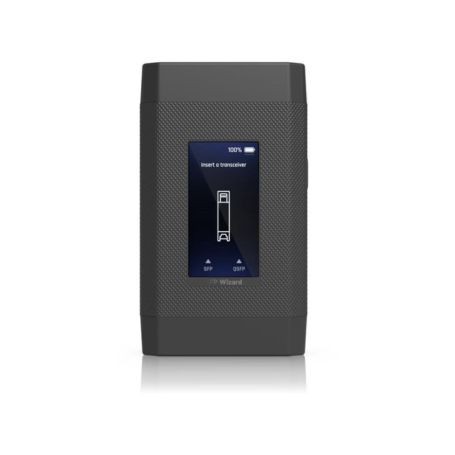

The Ubiquiti UACC-SFP-Wizard is a portable optical module programmer and diagnostic tool designed for SFP and QSFP transceivers. It can test module health, read and write optical module profiles, restore Ubiquiti optical modules, and receive over-the-air software updates through the UniFi ecosystem.
Module Compatibility
The SFP Wizard supports SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors. This allows a single portable tool to work across multiple generations of optical and direct-attach network modules that use these supported form factors.
Diagnostics and Programming
The device provides optical module diagnostics and can monitor supported module health through Digital Diagnostic Monitoring (DDM). Ubiquiti also provides functions for copying or writing optical module profiles and restoring Ubiquiti optical modules.
Portable Interface
A 1.9-inch touchscreen provides the device interface, while Bluetooth Low Energy provides communication with compatible UniFi mobile applications. The compact polycarbonate enclosure measures 90.8 × 52.1 × 20.2 mm and weighs 84 g.
Power
The SFP Wizard uses a rechargeable 3.7V DC, 300mAh lithium-ion battery. Ubiquiti specifies up to 75 minutes of continuous SFP transceiver diagnostics with the laser on, or up to 35 minutes when using QSFP transceivers. USB-C accepts 5V DC at 0.5A for charging.
Key Features
- Supports SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors
- Optical module testing and health diagnostics with DDM monitoring
- Optical module profile copy and write functionality
- 1.9-inch touchscreen and BLE connectivity
- Rechargeable battery for portable field use
Applications
The UACC-SFP-Wizard is suited to network installation, commissioning, troubleshooting, and maintenance workflows where optical modules need to be identified, tested, monitored, programmed, or restored away from a fixed workstation.
DC Supplies Product Note
For field diagnostics, battery runtime varies by module type: Ubiquiti specifies up to 75 minutes for continuous SFP diagnostics with the laser on and up to 35 minutes with QSFP transceivers.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-SFP-Wizard |
|---|
| Product Type | SFP/QSFP Optical Module Programmer and Diagnostic Tool |
|---|
| Networking Interface | BLE |
|---|
| Supported Form Factors | SFP, SFP+, SFP28, QSFP+, QSFP28 |
|---|
| Display | 1.9-inch touchscreen |
|---|
| Controls | 1 × Power button |
|---|
| Battery Type | Rechargeable Li-ion |
|---|
| Battery Capacity | 3.7V DC, 300mAh |
|---|
| SFP Diagnostic Battery Life | Up to 75 minutes with laser on |
|---|
| QSFP Diagnostic Battery Life | Up to 35 minutes |
|---|
| USB-C Input | 5V DC / 0.5A |
|---|
| Maximum Power Consumption | 0.6W |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Dimensions | 90.8 × 52.1 × 20.2 mm |
|---|
| Weight | 84 g |
|---|
| Operating Temperature | 0 to 40°C (32 to 104°F) |
|---|
| Operating Humidity | 10–90% noncondensing |
|---|
| Mobile App Requirement | UniFi iOS 10.29.1 or later; UniFi Android 10.30.2 or later |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | FCC, IC, CE |
|---|
FAQs
What optical modules does the SFP Wizard support?
It supports SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors.
What can the SFP Wizard do?
It can test optical modules, monitor supported module health through DDM, copy or write optical module profiles, and restore Ubiquiti optical modules.
How does the SFP Wizard connect to a mobile device?
The device uses Bluetooth Low Energy and works with compatible UniFi mobile applications.
