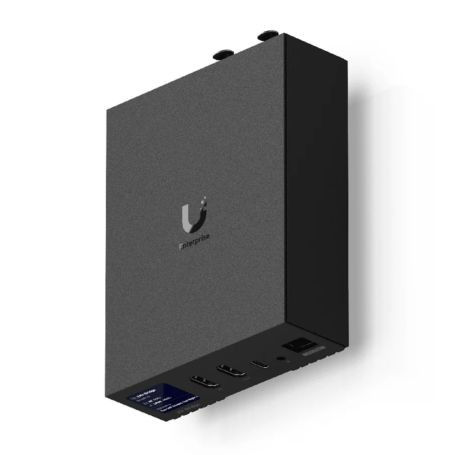

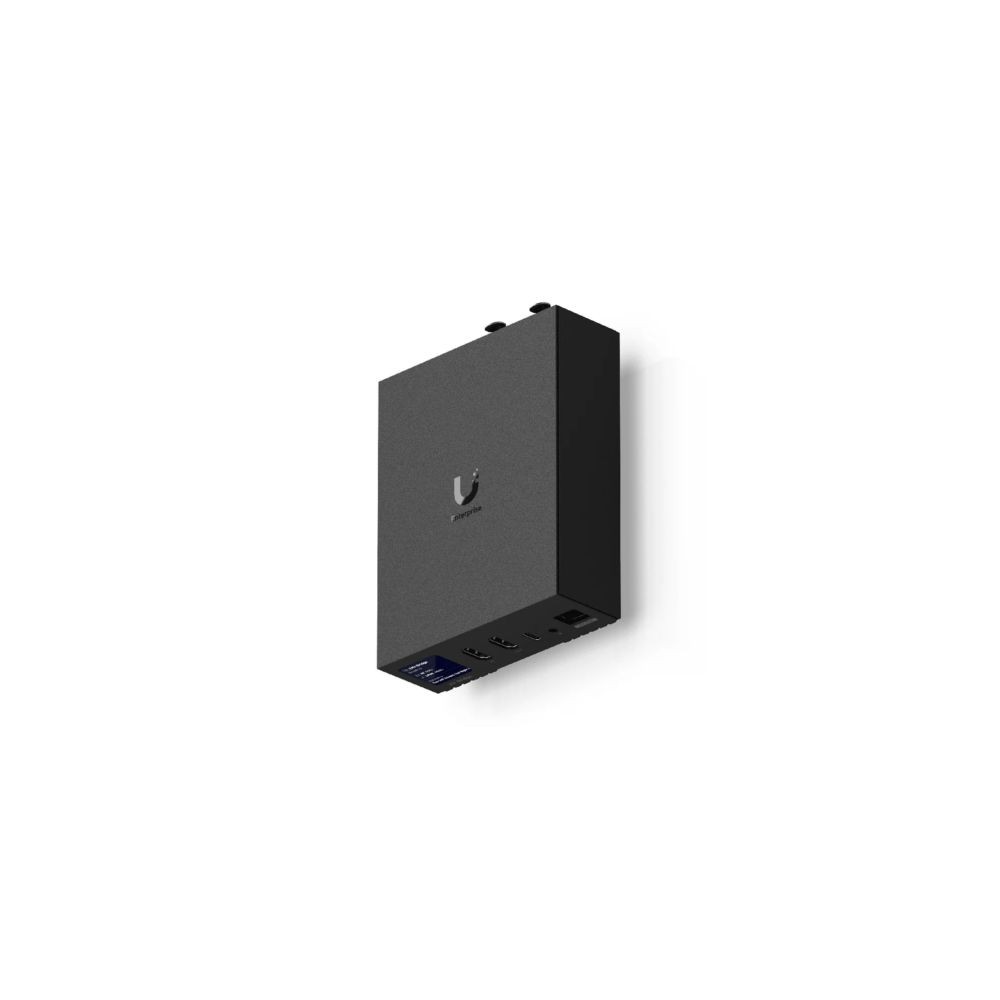

Ubiquiti EAV-BRIDGE – UniFi Enterprise 4K60 Audio/Video Bridge
Overview
The Ubiquiti EAV-BRIDGE is a UniFi Enterprise Audio/Video Bridge designed to transport HDMI video and professional analog audio over an IP network. The device supports 4K video at 60 Hz and can operate as either a source or destination within an AV-over-IP deployment.
The bridge combines HDMI 2.0 connectivity with professional XLR audio interfaces, Gigabit Ethernet with PoE+ input, a compact aluminum enclosure, and flexible DIN rail, wall, or pole mounting. It is intended for managed AV distribution where network-based transport is used instead of dedicated point-to-point HDMI cabling.
Technical Information
EAV-BRIDGE provides one HDMI 2.0 input and one HDMI 2.0 output, both supporting 4K at 60 Hz. Supported video formats include 480p, 720p, 1080p, and 4K. Ubiquiti specifies 1-to-1 and 1-to-N signal distribution, including configurations supporting up to an 8 × 8 TV wall.
Audio connectivity includes two XLR female analog inputs with 6.35 mm analog combo inputs and 48V DC phantom-power support, together with two XLR male analog outputs. HDMI audio is also supported. The audio frequency response is specified at 20 Hz–20 kHz with ±0.5 dB tolerance.
Compatibility
The EAV-BRIDGE uses a Gigabit Ethernet RJ45 interface with PoE+ input for network connectivity and power. It is intended for deployment within UniFi AV-over-IP infrastructure and can function as either a transmitting source or receiving destination.
USB Type-C and 3.5 mm IR connectivity are provided as additional interfaces. Ubiquiti currently notes that USB and IR port configuration is coming in a future software update, so these interfaces should not be treated as fully configurable features unless supported by the applicable firmware.
Key Features
- 4K HDMI video transport at up to 60 Hz.
- HDMI 2.0 input and HDMI 2.0 output for source or destination operation.
- Professional XLR analog audio input and output with 48V phantom-power support.
- Gigabit Ethernet PoE+ input with Etherlighting.
- DIN rail, wall, and pole mounting options with included pole-mount support.
Applications
The EAV-BRIDGE can be deployed for distributed displays, professional AV systems, meeting rooms, digital signage, multi-display environments, and networked video walls. Its source-or-destination operation allows the same hardware platform to be used at either end of an AV distribution path.
DC Supplies Product Note
For network-based AV deployments, verify that the Ethernet infrastructure can provide the required PoE+ power and that the network is appropriately configured for the intended AV traffic. The bridge has a maximum power consumption of 14W and uses a single Gigabit Ethernet connection for network and PoE+ connectivity.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | EAV-BRIDGE |
| Product Type | AV-over-IP Audio/Video Bridge |
| Product | UniFi Enterprise Audio/Video Bridge |
| Video Input | 1 × HDMI 2.0, up to 4K at 60 Hz |
| Video Output | 1 × HDMI 2.0, up to 4K at 60 Hz |
| Supported Video | 480p / 720p / 1080p / 4K |
| Signal Distribution | 1-to-1; 1-to-N; up to 8 × 8 TV wall configuration |
| Audio Input | 2 × XLR female analog with 6.35 mm combo input |
| Audio Output | 2 × XLR male analog |
| Phantom Power | 48V DC supported |
| Audio Output Format | Mono / Stereo |
| Surround Format | PCM |
| Audio Frequency Response | 20 Hz–20 kHz ±0.5 dB |
| Networking Interface | 1 × GbE RJ45 PoE+ In Etherlighting port |
| USB Interface | 1 × USB Type-C, 5V / 1A |
| IR Connection | 1 × 3.5 mm input or output |
| Power Method | PoE+ |
| Maximum Power Consumption | 14W |
| Display | 1.3-inch touchscreen |
| Mounting | DIN rail, wall, pole |
| Pole Mount Diameter | 38–50 mm |
| Enclosure Material | Aluminum |
| Dimensions | 109 × 134.4 × 40.4 mm |
| Weight | 560 g |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 5–90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti EAV-BRIDGE?
The EAV-BRIDGE is a UniFi Enterprise AV-over-IP bridge for transporting 4K HDMI video and professional analog XLR audio over a network.
Does the EAV-BRIDGE support 4K at 60 Hz?
Yes. Both the HDMI 2.0 input and output support video up to 4K at 60 Hz.
Does the EAV-BRIDGE support professional audio?
Yes. It provides two XLR female analog inputs with 6.35 mm combo inputs and two XLR male analog outputs. The inputs support 48V phantom power.
Can the EAV-BRIDGE operate as a transmitter or receiver?
Yes. Ubiquiti specifies the device as a source-or-destination AV-over-IP transceiver, allowing it to be used at either end of an AV distribution path.
How is the EAV-BRIDGE powered?
The bridge uses PoE+ through its Gigabit Ethernet RJ45 interface and has a maximum power consumption of 14W.
Where can the EAV-BRIDGE be mounted?
The device supports DIN rail, wall, and pole mounting. The specified pole mounting diameter is 38–50 mm.
