Detailed Specifications
Overview

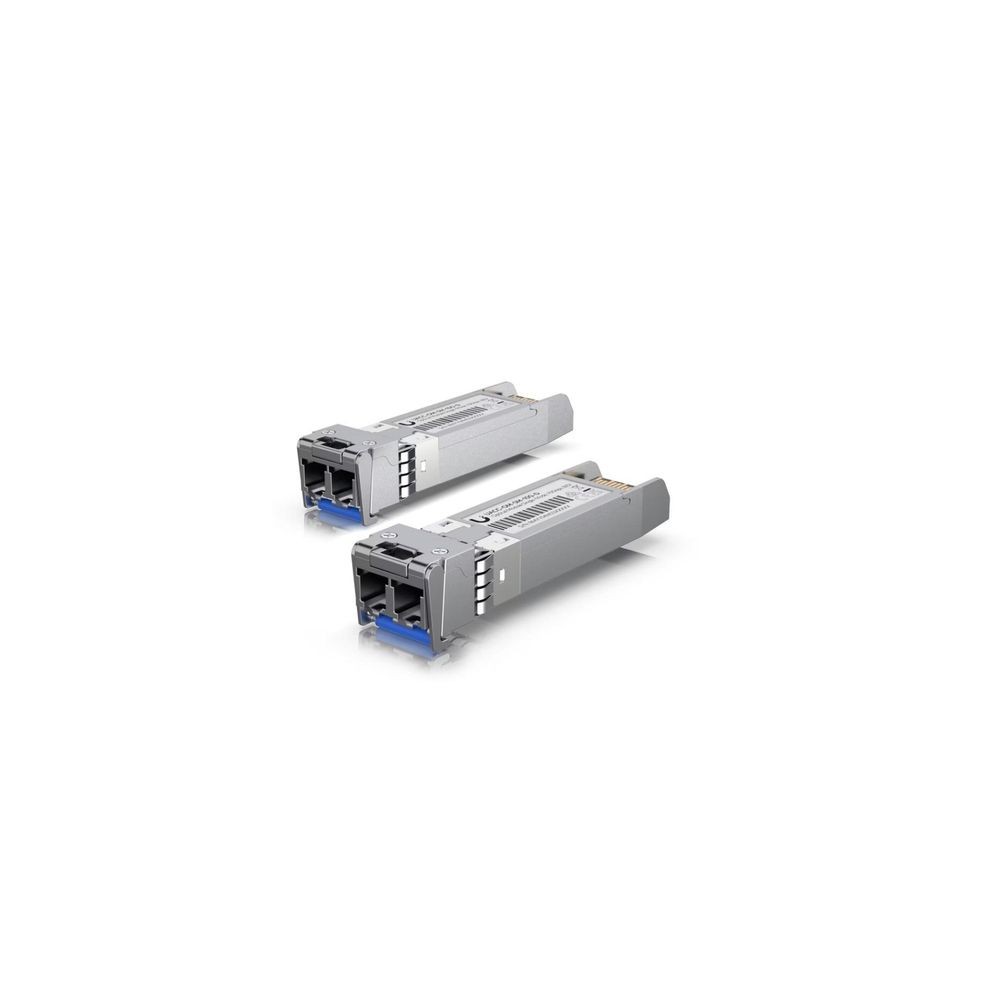

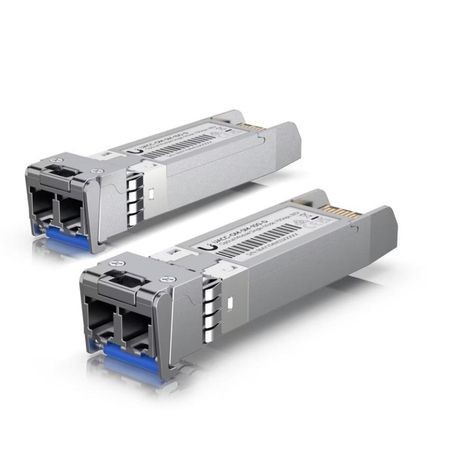

The Ubiquiti UACC-OM-SM-10G-D-20 is a 20-pack of UniFi 10G single-mode optical transceiver modules for high-speed fiber network connections. Each SFP+ module uses duplex LC UPC connectivity and supports 1 Gbps and 10 Gbps data rates over single-mode fiber.
Optical Performance
Each module operates with 1310 nm transmit and receive wavelengths and supports fiber connections up to 10 km (6.2 miles). The duplex design uses separate optical paths for transmit and receive, making it suitable for standard duplex single-mode fiber infrastructure.
Interface and Compatibility
The module uses an SFP+ form factor and is compatible with SFP+ and SFP interfaces supporting the applicable 1 Gbps or 10 Gbps operating mode. A duplex LC UPC connector provides the fiber interface. Fiber cable is not included.
Key Features
- 20 SFP+ single-mode optical modules
- 1 Gbps and 10 Gbps supported data rates
- 1310 nm transmit and receive wavelengths
- Up to 10 km single-mode fiber reach
- Duplex LC UPC fiber connection
Applications
The UACC-OM-SM-10G-D-20 is designed for fiber uplinks, switch-to-switch connections, aggregation links, server connectivity, and other network deployments requiring 1/10 Gbps single-mode fiber connections over distances up to 10 km.
DC Supplies Product Note
This SKU contains 20 optical modules and requires compatible duplex single-mode fiber cabling with LC UPC connectors. The optical modules are transceivers only; Ubiquiti does not include fiber cable with the modules.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-SM-10G-D-20 |
| Product Type | Single-Mode Optical Module |
| Product Line | UniFi |
| Pack Quantity | 20 |
| Form Factor | SFP+ |
| Connector | Duplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Supported Cable Distance | 10 km (6.2 mi) |
| Maximum Power Consumption | 1W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Fiber Cable Included | No |
| Laser Classification | Class 1 |
FAQs
How many optical modules are included?
The UACC-OM-SM-10G-D-20 contains 20 single-mode optical modules.
What data rates does the module support?
Each module supports 1 Gbps and 10 Gbps operation.
What fiber connector does it use?
The module uses a duplex LC UPC connector.
What is the maximum supported fiber distance?
Ubiquiti specifies a maximum cable distance of 10 km (6.2 miles) over single-mode fiber.
Is fiber cable included?
No. The optical modules are supplied without fiber cable.
