Overview

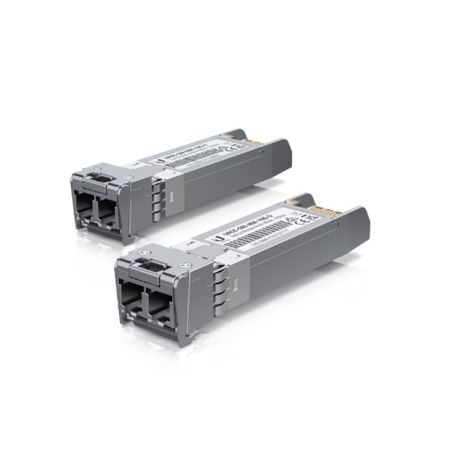

The Ubiquiti UACC-OM-MM-10G-D-20 is a 20-pack of 10G multi-mode optical modules designed for high-speed Ethernet fiber connections. Each module uses an SFP+ form factor with a duplex LC UPC connector and supports 1 Gbps and 10 Gbps data rates.
Optical Connectivity
The modules use 850 nm transmit and receive wavelengths and support multi-mode fiber. Ubiquiti specifies a maximum supported distance of 400 m over OM4 fiber and 300 m over OM3 fiber. Fiber cabling is not included with the optical modules. :contentReference[oaicite:1]{index=1}
Interface and Power
The SFP+ form factor allows installation in compatible SFP+ interfaces, while Ubiquiti also identifies the module as compatible with SFP interfaces. Maximum power consumption is 0.8 W per module. :contentReference[oaicite:2]{index=2}
Key Features
- 20 optical modules included
- SFP+ form factor for 10G connectivity
- Duplex LC UPC connector
- 850 nm multi-mode optics
- Up to 400 m over OM4 or 300 m over OM3 fiber
Applications
The UACC-OM-MM-10G-D-20 is suitable for high-speed fiber uplinks, switch-to-switch connections, server and storage networking, aggregation links, and other Ethernet deployments using compatible SFP+ or SFP interfaces and multi-mode fiber.
DC Supplies Product Note
The 20-pack format is intended for deployments requiring multiple identical 10G multimode transceivers. Distance depends on the installed fiber grade: Ubiquiti specifies 400 m for OM4 and 300 m for OM3. :contentReference[oaicite:3]{index=3}
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-MM-10G-D-20 |
| Product Type | Multi-Mode Optical Module |
| Form Factor | SFP+ |
| Pack Quantity | 20 |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Maximum Distance | OM4: 400 m (1,312 ft); OM3: 300 m (984 ft) |
| Maximum Power Consumption | 0.8 W per module |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Classification | Class 1 |
| Fiber Cable Included | No |
Ubiquiti's official technical specifications identify the UACC-OM-MM-10G-D family as an SFP+ duplex LC UPC multimode module supporting 1/10 Gbps, 850 nm operation, OM4 up to 400 m, OM3 up to 300 m, and 0.8 W maximum power consumption. Ubiquiti's compliance documentation specifically lists the D-20 variant. :contentReference[oaicite:4]{index=4}
FAQs
How many optical modules are included in UACC-OM-MM-10G-D-20?
The -20 variant contains 20 optical modules. Ubiquiti identifies the D-20 model as a 20-pack variant of the 10G Multi-Mode Optical Module. :contentReference[oaicite:5]{index=5}
What fiber connector does the module use?
Each module uses a duplex LC UPC connector.
What fiber types are supported?
The module is designed for multi-mode fiber, with Ubiquiti specifying up to 400 m over OM4 and 300 m over OM3.
Does it support 10G Ethernet?
Yes. The module supports 1 Gbps and 10 Gbps data rates.
Is fiber cable included?
No. Ubiquiti specifies that the fiber cable is not included. :contentReference[oaicite:6]{index=6}
