Overview

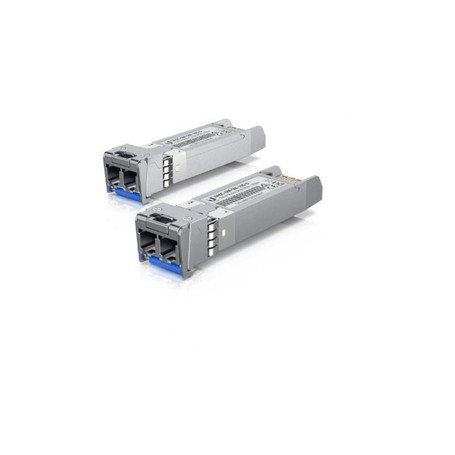

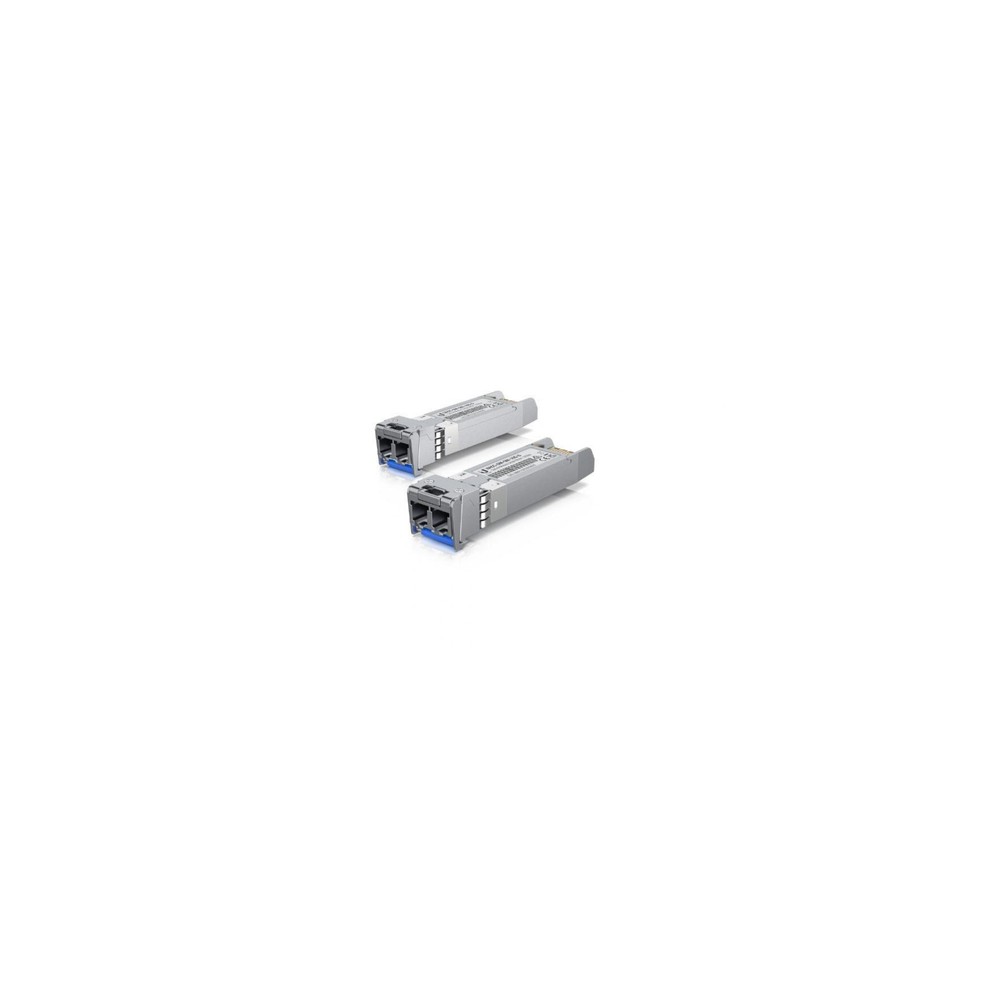

The Ubiquiti UACC-OM-SM-10G-D-2 is a two-pack of 10G single-mode optical modules for SFP+ networking equipment. Each duplex transceiver uses LC UPC connectivity and supports 1 Gbps and 10 Gbps data rates over single-mode fiber, with a maximum supported cable distance of 10 km.
Technical Information
Each module uses 1310 nm transmission and reception wavelengths and supports full-duplex single-mode fiber connections. The SFP+ form factor allows installation in compatible SFP+ interfaces, while Ubiquiti also specifies compatibility with SFP interfaces. Maximum power consumption is 1W per module.
Compatibility
The UACC-OM-SM-10G-D-2 is intended for networking equipment with compatible SFP+ or SFP interfaces. The optical link requires single-mode fiber with duplex LC UPC termination. Fiber cable is not included with the module pack.
Key Features
- Two 10G single-mode optical transceivers in one pack
- SFP+ form factor with duplex LC UPC connector
- 1310 nm TX and RX wavelengths
- Supports 1 Gbps and 10 Gbps data rates
- Single-mode fiber reach up to 10 km
Applications
The modules can be used to establish fiber uplinks between compatible network switches, gateways, aggregation equipment, or other devices equipped with SFP/SFP+ ports. The two-module pack is suitable for creating a duplex optical connection between two compatible endpoints.
DC Supplies Product Note
The UACC-OM-SM-10G-D-2 is an optical transceiver rather than a standalone powered networking device. Each module draws power from the compatible SFP/SFP+ interface, so no separate power adapter is required for the module itself.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OM-SM-10G-D-2 |
|---|
| Product Type | 10G Single-Mode Optical Module, 2-Pack |
|---|
| Form Factor | SFP+ |
|---|
| Pack Quantity | 2 modules |
|---|
| Connector | Duplex LC UPC |
|---|
| Supported Media | Single-Mode Fiber |
|---|
| BiDi | No |
|---|
| TX Wavelength | 1310 nm |
|---|
| RX Wavelength | 1310 nm |
|---|
| Supported Data Rate | 1 / 10 Gbps |
|---|
| Maximum Cable Distance | 10 km (6.2 mi) |
|---|
| Maximum Power Consumption | 1W per module |
|---|
| Compatible Interfaces | SFP+ and SFP |
|---|
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
|---|
| Laser Classification | Class 1 laser product, IEC/EN 60825-1:2014 |
|---|
| Module Dimensions | 2.22 × 0.53 × 0.33 in per module |
|---|
| Module Weight | 0.022 lb per module |
|---|
| Pack Weight | 0.132 lb |
|---|
| UPC | 810010076946 |
|---|
FAQs
How many optical modules are included?
The UACC-OM-SM-10G-D-2 contains two Ubiquiti 10G single-mode duplex optical modules.
What fiber type is required?
The modules are designed for single-mode fiber and use duplex LC UPC connectors.
What distance can the modules support?
Ubiquiti specifies a maximum supported cable distance of 10 km when used with the appropriate single-mode fiber connection.
Do these modules use bidirectional single-fiber transmission?
No. The UACC-OM-SM-10G-D-2 is a duplex module using separate transmit and receive paths at 1310 nm.
Is fiber cable included?
No. Ubiquiti specifies that the fiber cable is not included with the optical module pack.
What interfaces are supported?
The module uses an SFP+ form factor and is specified as compatible with SFP+ and SFP interfaces.
