Detailed Specifications
HP JL160A - 1 GbE 10/100/1000Base-TX Copper SFP
Overview :

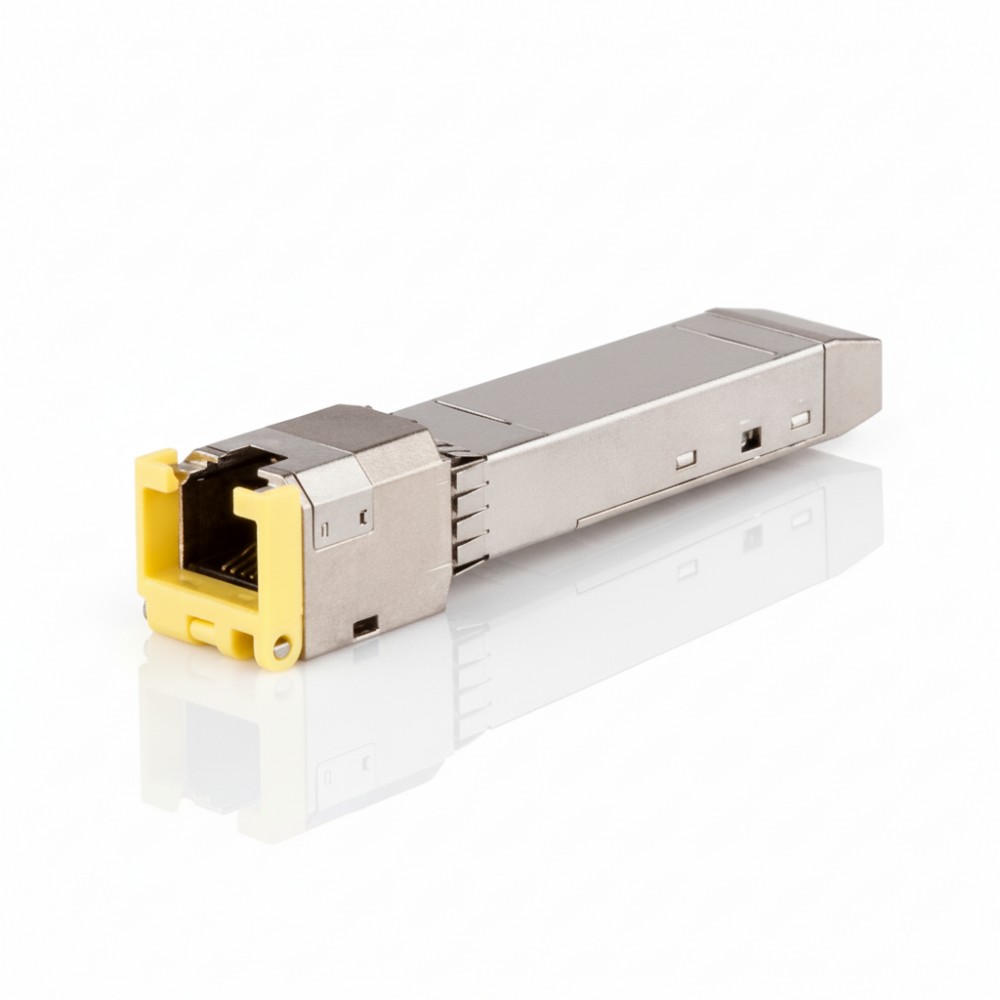

The HP JL160A is a 1-Gigabit small-form-pluggable (SFP) copper transceiver designed for network engineers deploying Gigabit Ethernet links over UTP copper cable. It supports 10/100/1000 Mbps auto-negotiation and uses a standard RJ-45 interface, allowing insertion into SFP slots while using CAT5e/CAT6 cabling up to 100 m. The module is suited for access layer switches, uplinks and data-centres where fibre is not required or legacy copper cabling is available. It fits into SFP cages on compatible HP/Aruba and other vendor switches and is hot-pluggable, enabling field replacements with minimal disruption.
Key Features :
10/100/1000 Mbps auto-negotiation on copper
RJ-45 connector, up to 100 m over Cat5e/6
SFP form-factor, hot-pluggable into SFP slot
Single-3.3 V power supply, typical <1.05 W
Compliant with IEEE 802.3/802.3ab and SFP MSA
Specifications :
| Specification | Detail |
|---|
| Brand | HP |
| Part Number | JL160A |
| Product Type | 1 GbE 10/100/1000Base-TX Copper SFP |
| Data Rate | 10/100/1000 Mbps auto-negotiation |
| Interface | RJ-45 copper connector |
| Maximum Reach | Up to 100 m over Cat5e/Cat6 |
| Power Supply | +3.3 V |
| Typical Power Consumption | <1.05 W |
| Operating Temperature | 0°C to +70°C (commercial) |
| Compliance Standards | IEEE 802.3, IEEE 802.3ab, SFP MSA |
| Hot-Pluggable | Yes |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Housing | Metal enclosure, EMI shielding |
| Auto MDI/MDIX | Supported |
| Weight | approx. 0.04 lbs (≈20 g) |
