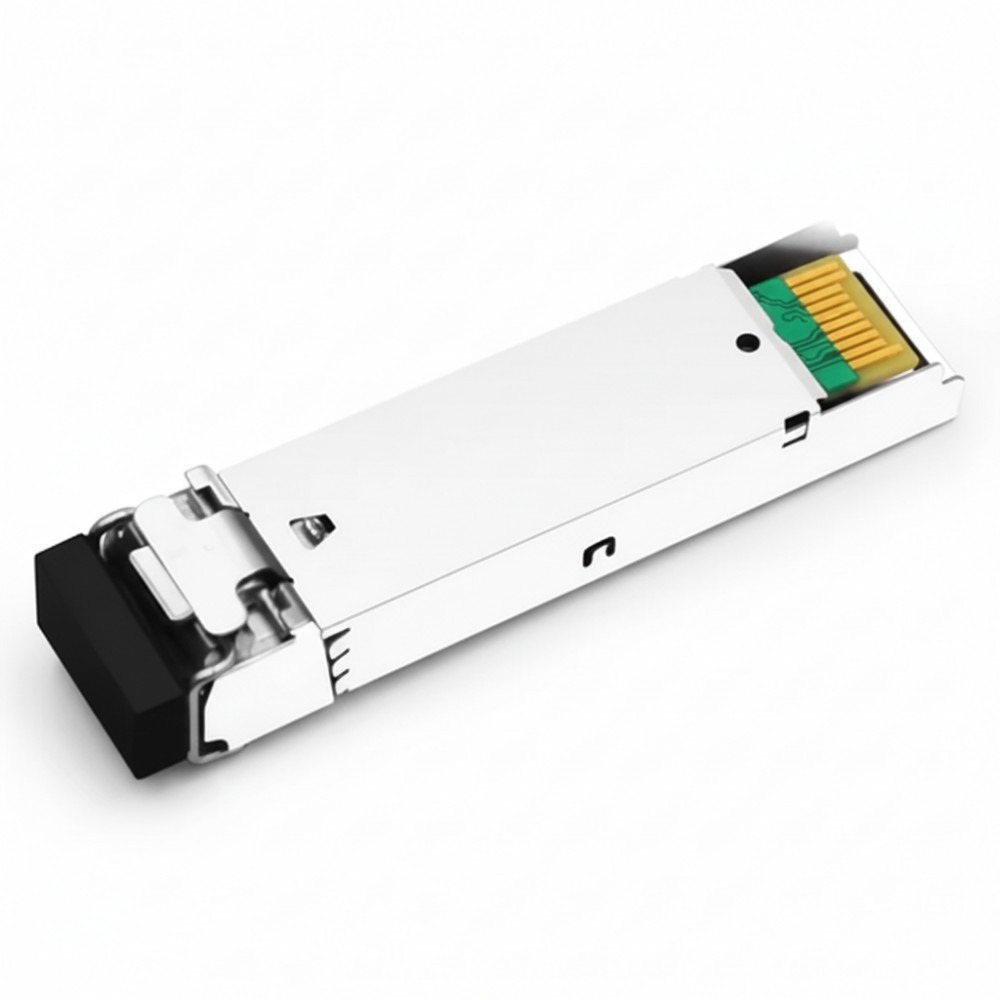

HPE JD494A Network Transceiver module View larger

HPE JD494A SFP Transceiver 1000Base LX 10 km Module

New

HPE 1 Gb/s LX SFP, 10 km single-mode
×




  • New

Detailed Specifications

HPE JD494A – 1000Base-LX SFP Transceiver Module

Overview :

The HPE JD494A is a hot-pluggable SFP (mini-GBIC) optical transceiver designed for network engineers deploying 1 Gigabit Ethernet links over fiber. It supports the IEEE 802.3z 1000Base-LX standard and is suited for single-mode fiber links up to 10 km. In typical network architectures this module is used in data center, campus aggregation or branch uplinks where long-reach fiber connectivity is required. It installs into SFP ports on switches, routers or servers and interoperates with LC-duplex connectors and a 3.3 V supply rail. The JD494A enables fibre link extension without moving to 10 Gb/s optics when 1 Gb/s remains sufficient, and integrates with standard SFP-M^2 multi-source agreement platforms.

Key Features :

  • Supports 1.25 Gb/s link rate for Gigabit Ethernet

  • Operates at 1310 nm wavelength over SMF

  • Duplex LC connector interface for fibre ports

  • Reach up to 10 km on 9/125 µm single-mode fibre

  • Single +3.3 V power supply, MSA compliant footprint

Specifications :

SpecificationValue
Brand HPE
Part Number JD494A
Product Type SFP Transceiver Module
Data Rate (max) 1.25 Gb/s (Gigabit Ethernet)
Wavelength (TX/RX) 1310 nm nominal
Reach (max) 10 km on single-mode fibre (9/125 µm)
Connector Type Duplex LC
Fibre Type Single-mode fibre (SMF)
Power Supply Voltage 3.3 V DC
Typical Power Consumption ~0.8 W (max ~1 W)
Operating Temperature 0 °C to +70 °C (commercial)
Storage Temperature –40 °C to +85 °C
Dimensions (L×W×H) 2.17 in × 0.60 in × 0.46 in (5.51 cm × 1.52 cm × 1.17 cm)
Weight 0.04 lb (≈0.02 kg)
Laser Safety Class Class 1 (IEC 60825-1)
