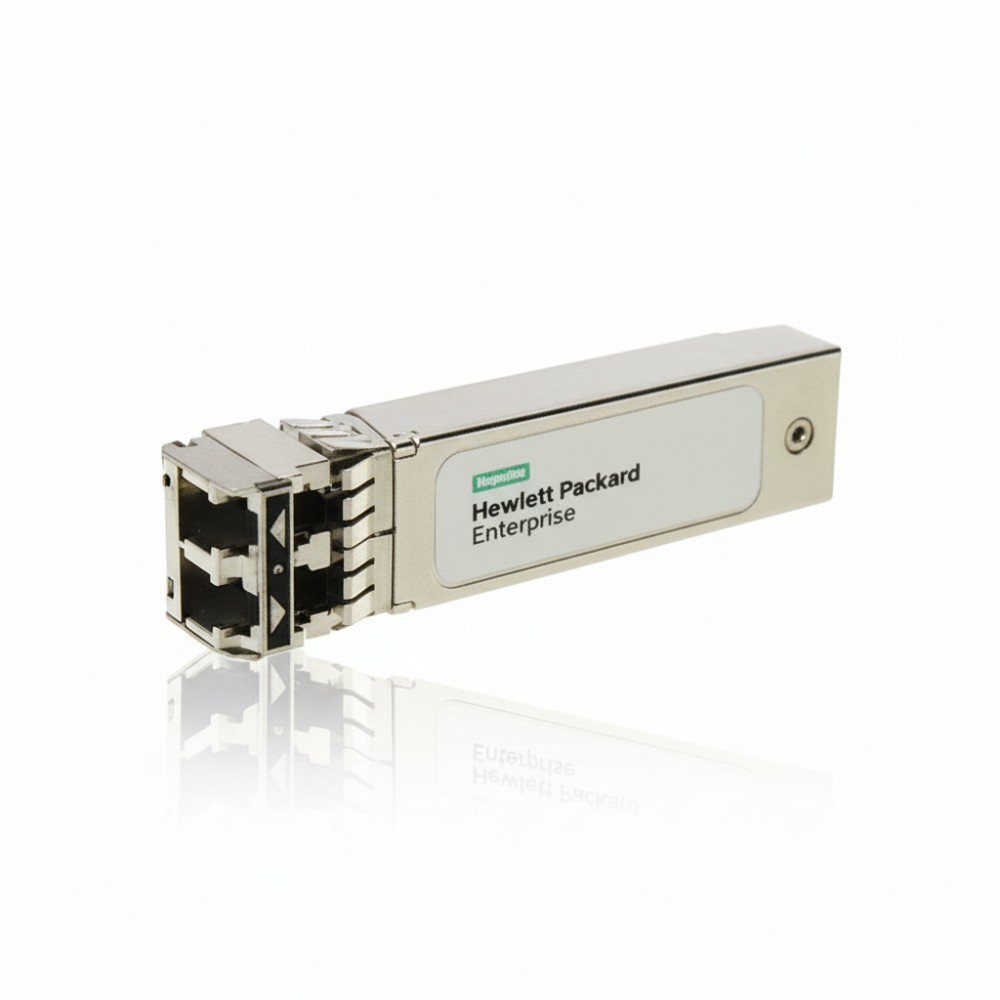

HPE JD099B Compatible 1000BASE-BX10-D 1490nm 10km SFP Transceiver View larger

HPE JD099B X120 1G SFP BX-10-D Transceiver 10 km

New

HPE X120 1G SFP LC BX-10D single-mode 10 km transceiver
×




  • New

Detailed Specifications

HPE JD099B – X120 1G SFP LC BX-10-D Transceiver

Overview :

The HPE JD099B is a 1 Gigabit Small Form-Factor Pluggable (SFP) transceiver module intended for network engineers requiring a full-duplex, single-mode fibre link over up to 10 km. It supports the IEEE 802.3ah 1000BASE-BX10-D specification, using a simplex LC connector with a single fibre strand, which simplifies cabling in carrier and enterprise edge deployments. It is suited for campus horizontal/vertical uplinks, data-centre access, or metro edge interconnects where single-fibre infrastructure is in place. Integration is seamless with HPE X120-series switch platforms and other HPE Networking gear supporting SFP BX10-D modules. This module enables you to convert one strand of single-mode fibre into a 1 Gbps link, reducing fibre-count requirements in retrofit or constrained cabling environments.

Key Features :

  • Supports 1000BASE-BX10-D full-duplex over single-mode fibre

  • Single LC simplex connector for single-fibre deployments

  • Link reach up to 10 km on OS2-type single-mode fibre

  • Typical power consumption approx. 0.8 W, max 1.0 W

  • Duplex full only; non-half-duplex operation

Specifications :

SpecificationValue
Brand HPE
Part Number JD099B
Product Type X120 1G SFP LC BX-10-D Transceiver
Data Rate 1.0 Gbps (1000BASE)
Fibre Type Single-mode fibre (OS2, 9/125 µm)
Interface / Connector LC simplex
Maximum Reach Up to 10 km
Wavelength (Tx/Rx) 1490 nm Tx / 1310 nm Rx (typical)
Power Consumption Typ ~0.8 W; Max 1.0 W
Dimensions 2.17 in (depth) × 0.60 in (width) × 0.46 in (height)
Weight ~0.04 lbs
Compatibility Standard IEEE 802.3ah 1000BASE-BX10-D
Duplex Mode Full-duplex only
Temperature Range 0 °C to +70 °C (standard)
Compliance SFP MSA compliant, RoHS
