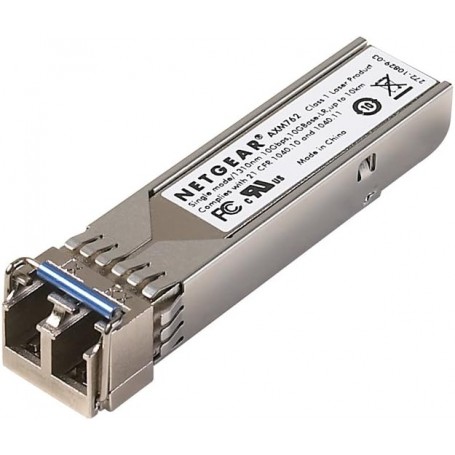

Netgear AXM762-10000S ProSafe AXM762 - SFP+ transceiver module View larger

Netgear AXM762-10000S 10G SFP+ LR Single-mode Transceiver

New

In Stock

10G SFP+ LR Single-mode 10km Transceiver

×




$799.00

  • New

Detailed Specifications

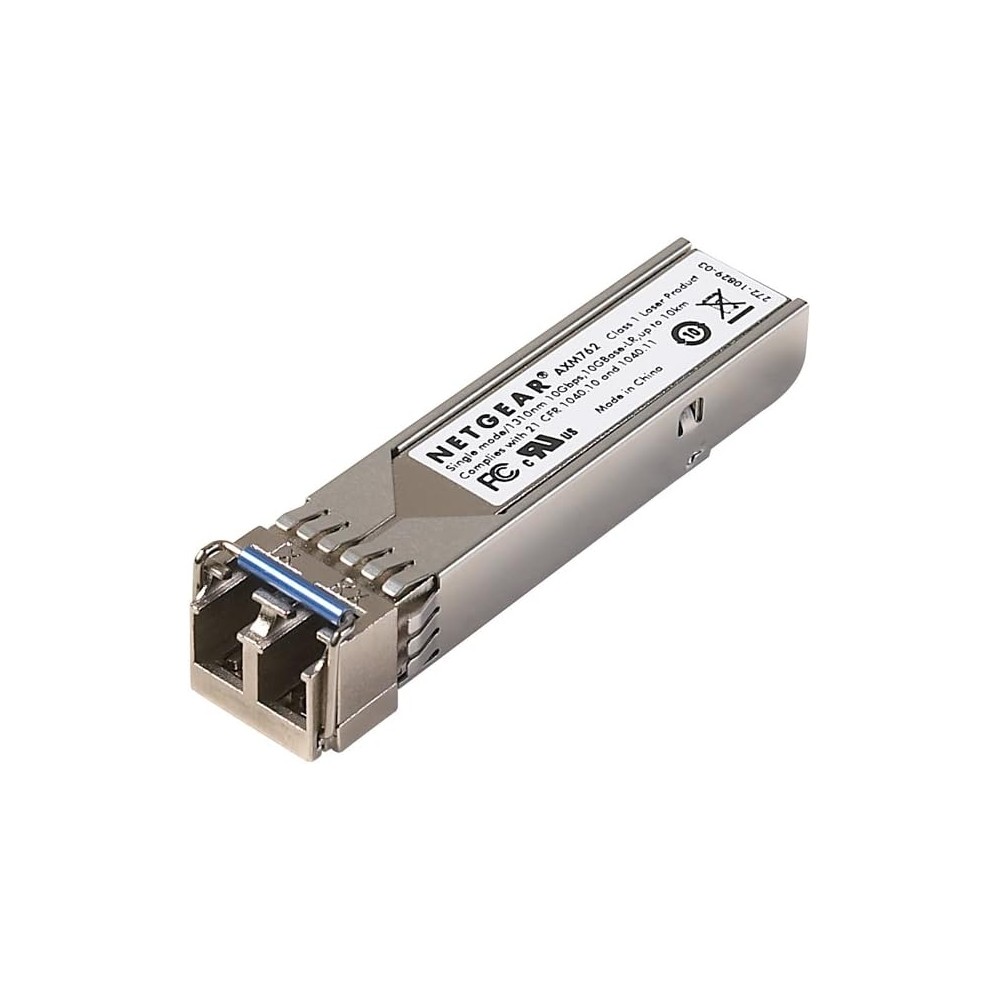

Netgear AXM762-10000S 10G SFP+ LR Single-mode Transceiver

Overview

The Netgear AXM762-10000S is a high-performance 10GBASE-LR SFP+ transceiver engineered to extend network reach across campus environments and large-scale data centers. This module operates over single-mode fiber (SMF) using a 1310nm wavelength, supporting reliable data transmission at distances up to 10 kilometers. It is specifically designed for IT professionals managing core-to-aggregation or switch-to-switch uplinks where standard multi-mode fiber reaches its physical distance limitations.

Ideal for branch office interconnects, high-speed storage area networks (SANs), and edge-to-core deployments, the AXM762 integrates seamlessly into Netgear managed switch series, including the M4300, M4500, and M7100 lines. The module provides a hot-swappable interface that minimizes downtime during hardware upgrades or routine maintenance. By adhering strictly to the IEEE 802.3ae 10GBASE-LR standard, it ensures consistent throughput and low-latency performance for high-bandwidth enterprise applications. This transceiver addresses the critical need for long-haul connectivity without the complexity of proprietary lock-in, making it a foundational component for scalable, high-availability network infrastructure.

Key Features

- Supports 10Gbps throughput over single-mode fiber.
- Maximum transmission distance of 10km at 1310nm.
- Hot-swappable SFP+ form factor for easy maintenance.
- Duplex LC connector for industry-standard connectivity.

Specifications

Brand Netgear
Part Number AXM762-10000S
Product Type SFP+ Transceiver Module
Data Rate 10 Gbps
Optical Standard 10GBASE-LR
Fiber Type Single-mode Fiber (SMF)
Wavelength 1310 nm
Max Distance 10 km
Connector Duplex LC
Compliance IEEE 802.3ae
Operating Temperature 0°C to 70°C
Power Consumption < 1.5 W
Dimensions 13.7 x 56 x 11.9 mm

Frequently Asked Questions

Is the AXM762-10000S hot-swappable?

Yes, the module is hot-swappable, allowing you to install or replace it in a powered-on Netgear switch without disrupting network services or requiring a system reboot.

Can I use this transceiver with multi-mode fiber?

No, the AXM762 is designed specifically for single-mode fiber (SMF). For multi-mode fiber applications (OM3/OM4), you should utilize the AXM761 (10GBASE-SR) module instead.

Does this module support Digital Optical Monitoring (DOM)?

Yes, the AXM762 supports SFF-8472 diagnostic monitoring, providing real-time data on operating parameters such as temperature, voltage, and optical transmit/receive power levels.
