Detailed Specifications

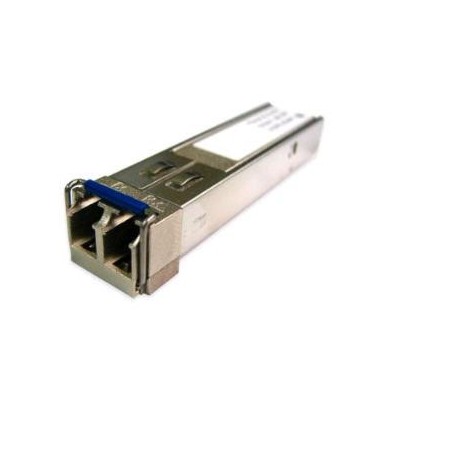

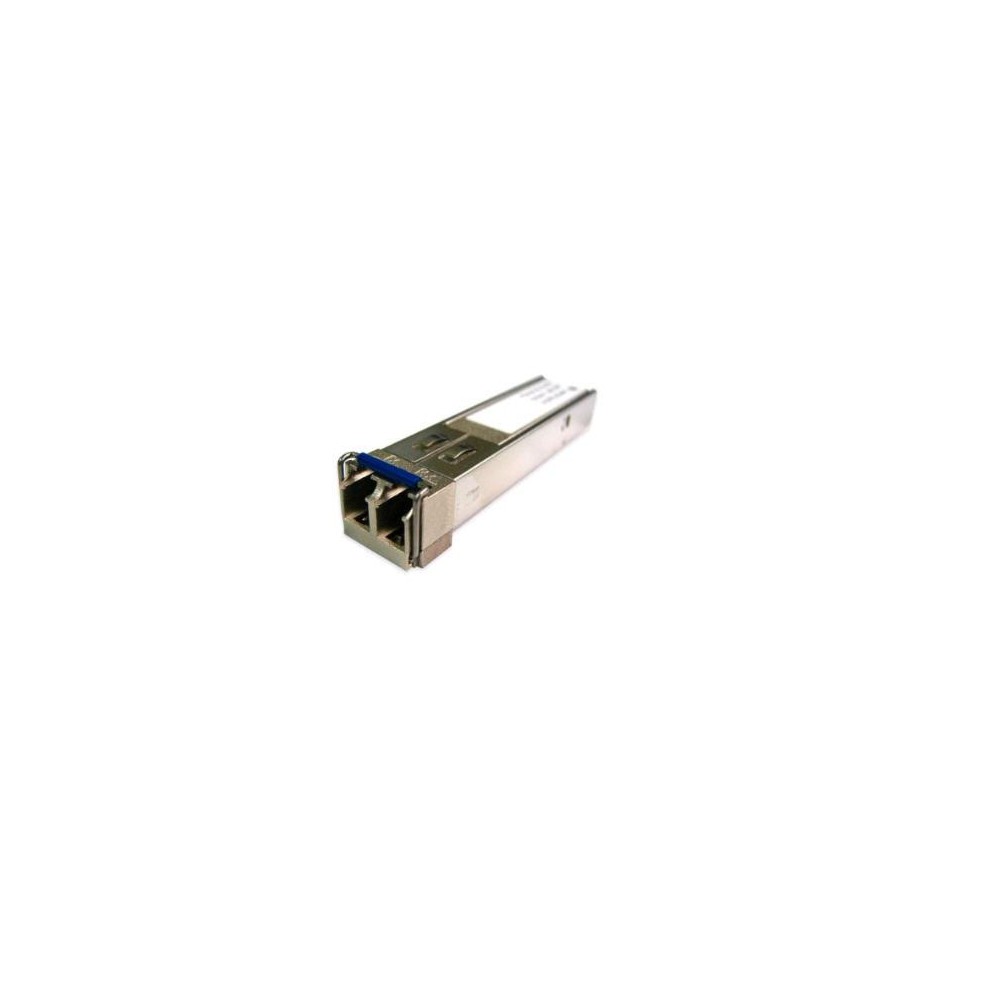

The Zyxel SFP10G-SR is a 10 Gigabit SFP+ fiber transceiver designed for short-range Ethernet connectivity over multimode fiber. It uses an 850 nm wavelength and supports transmission distances of up to 300 meters.
Connectivity
The transceiver uses a duplex LC connector and is designed for compatible Zyxel switches equipped with 10G SFP+ slots. Zyxel specifies support for DDMI monitoring and SFP Multi-Source Agreement compliance. :contentReference[oaicite:1]{index=1}
Key Features
- 10-Gigabit SFP+ transceiver
- 850 nm optical wavelength
- Up to 300 m transmission distance
- Multimode fiber operation
- Duplex LC connector with DDMI support
Applications
- 10 Gigabit Ethernet switch uplinks
- Short-distance data center fiber connections
- Enterprise network backbone connections
- High-speed connections between compatible SFP+ network devices
DC Supplies Product Note
The SFP10G-SR is intended for short-range 10GbE fiber deployments. Because it uses 850 nm multimode optics and a duplex LC interface, the installed fiber infrastructure should match these requirements before deployment.
Specifications
| Brand | Zyxel |
| Part Number / MPN | SFP10G-SR |
| Product Type | 10G SFP+ Fiber Transceiver |
| Data Transfer Rate | 10 Gbps |
| Form Factor | SFP+ |
| Connector | Duplex LC |
| Wavelength | 850 nm |
| Fiber Type | Multimode |
| Maximum Transmission Distance | 300 m |
| DDMI | Yes |
| SFP MSA Compliant | Yes |
| Operating Temperature | 0°C to 70°C |
| Supply Voltage | 3.14V to 3.46V |
| Maximum Current | 250 mA |
Frequently Asked Questions
What speed does the Zyxel SFP10G-SR support?
The SFP10G-SR is a 10-Gigabit SFP+ transceiver.
What type of fiber does it use?
It is designed for multimode fiber.
What is the maximum transmission distance?
The specified maximum transmission distance is 300 meters.
What wavelength does the SFP10G-SR use?
The transceiver uses an 850 nm optical wavelength.
What connector does it use?
The SFP10G-SR uses a duplex LC connector.
