Detailed Specifications

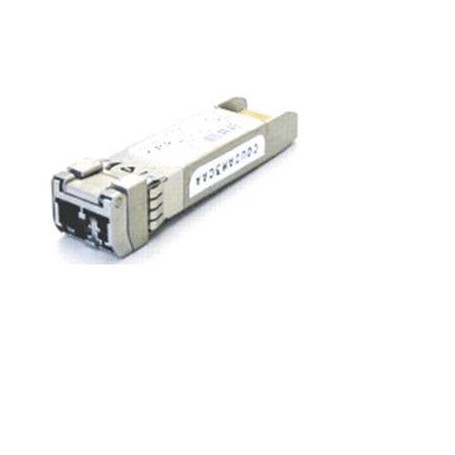

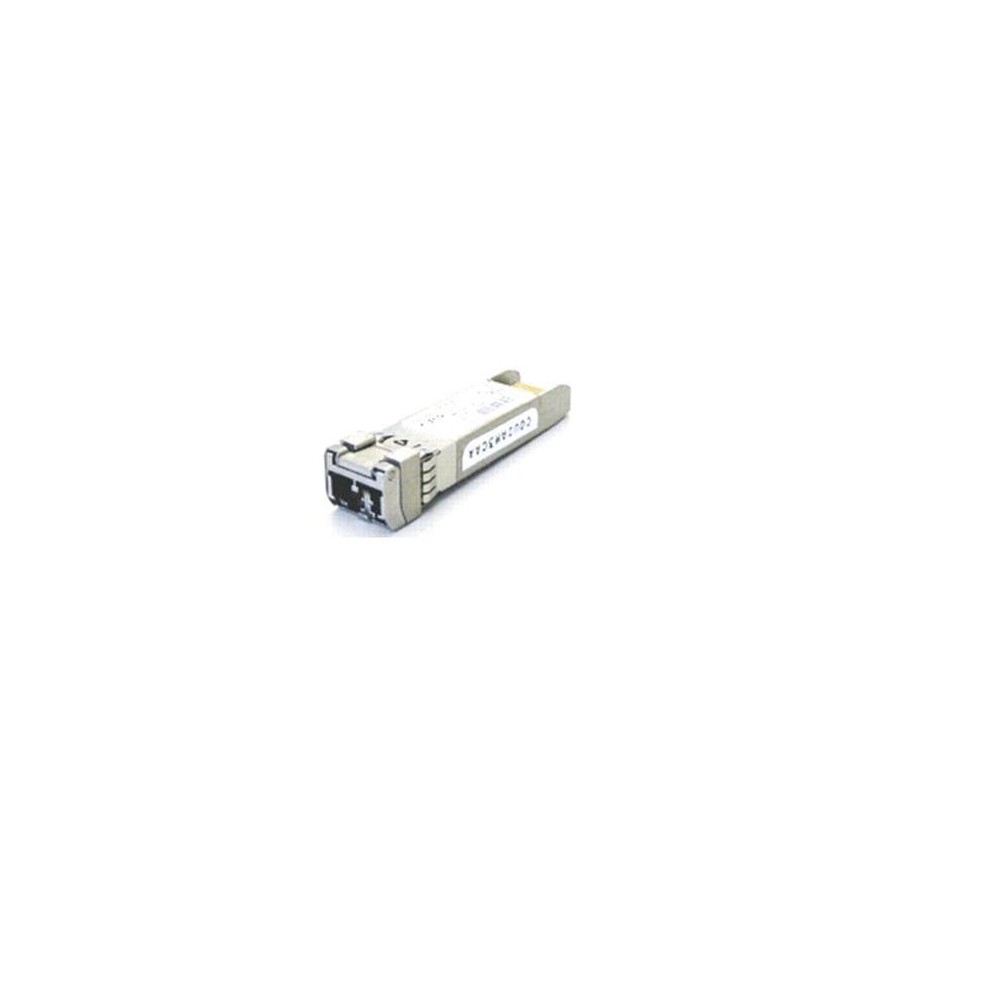

The Zyxel SFP10GLR is a 10 Gigabit Ethernet SFP+ LR transceiver designed for long-range fiber connectivity. It uses 1310 nm optical signaling over single-mode fiber and supports transmission distances of up to 10 km.
Connectivity
The module uses a duplex LC connector and operates as a 10GBase-LR optical transceiver. It is designed for compatible SFP+ ports and supports hot-swappable installation for network maintenance. Zyxel specifies DDMI support for monitoring transceiver operating information. :contentReference[oaicite:1]{index=1}
Key Features
- 10 Gbps SFP+ transceiver
- 10GBase-LR connectivity over single-mode fiber
- 1310 nm optical wavelength
- Up to 10 km transmission distance
- Duplex LC connector with DDMI support
Applications
- 10 Gigabit Ethernet network uplinks
- Long-distance fiber connections between network switches
- Enterprise and campus network fiber links
- Data center and network infrastructure deployments
DC Supplies Product Note
The SFP10GLR is intended for single-mode fiber links where a 10G SFP+ connection needs to reach up to 10 km. The 1310 nm wavelength and duplex LC interface should be matched with the corresponding fiber infrastructure and remote transceiver.
Specifications
| Brand | Zyxel |
| Part Number / MPN | SFP10GLR |
| Product Type | SFP+ Transceiver |
| Data Transfer Rate | 10 Gbps |
| Form Factor | SFP+ |
| Cabling Type | 10GBase-LR |
| Fiber Type | Single Mode |
| Connector | Duplex LC |
| Wavelength | 1310 nm |
| Maximum Transmission Distance | 10 km |
| DDMI | Yes |
| Hot-Pluggable | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 3.14V to 3.46V |
| Maximum Current | 285 mA |
| Weight | 0.04 lbs |
| UPC | 0760559120726 |
Frequently Asked Questions
What speed does the Zyxel SFP10GLR support?
The SFP10GLR is a 10 Gbps SFP+ transceiver for 10 Gigabit Ethernet.
What fiber type does the SFP10GLR use?
It uses single-mode fiber for long-range 10G connectivity.
What is the maximum transmission distance?
The specified maximum transmission distance is 10 km.
What connector does the SFP10GLR use?
The module uses a duplex LC fiber connector.
What wavelength does the SFP10GLR use?
The transceiver operates at 1310 nm.
