Detailed Specifications

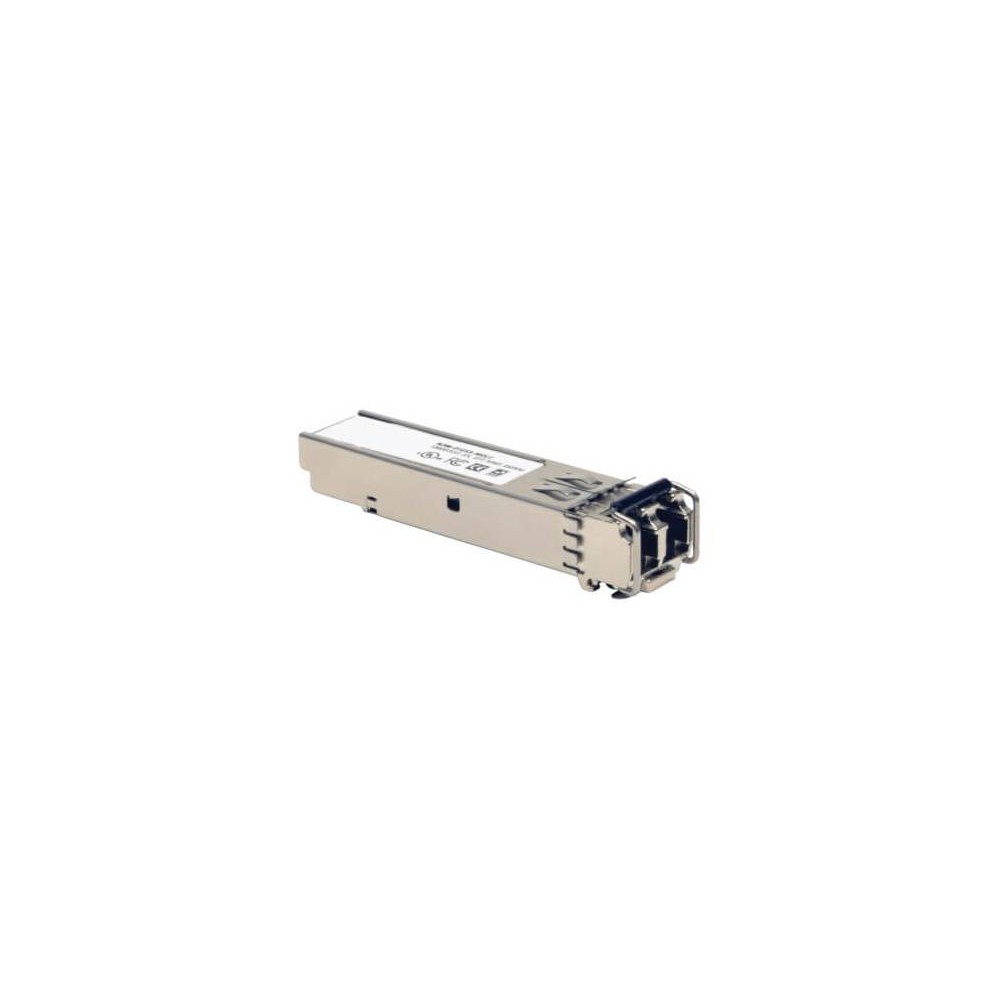

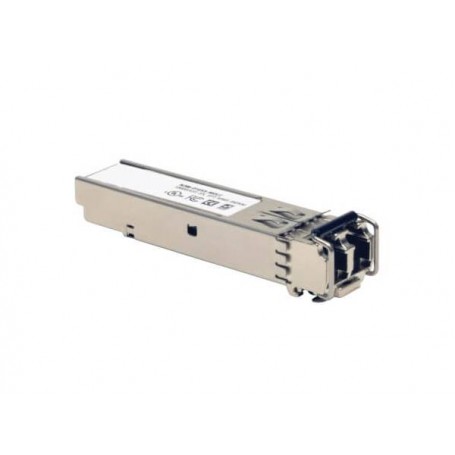

EATON N286-01GSX-MDLC 1Gbps Multimode Fiber SFP Transceiver Compatible Tripp Lite
Overview
The EATON N286-01GSX-MDLC is an Eaton Tripp Lite series multimode fiber transceiver designed for Gigabit Ethernet networking applications. It uses an SFP interface on the network-device side and an LC duplex female connector for multimode fiber.
The transceiver supports 1 Gbps data transfer, 850 nm wavelength, and transmission distances up to 550 m, depending on the supported multimode fiber configuration. Eaton documentation identifies the N286-01GSX-MDLC as a multimode transceiver compatible with HP networking hardware.
Key Features
- 1 Gbps Gigabit Ethernet fiber transceiver
- Multimode fiber operation
- SFP male interface
- LC duplex female fiber connector
- 850 nm wavelength
- Up to 550 m transmission distance
- Digital Diagnostic Monitoring (DDM) support
- Hot-swappable design
- Multi-Source Agreement (MSA) compliant
- Zinc housing for EMI protection
- Designed for compatible HP networking hardware
- 3-year limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Brand Compatibility | HP |
| Part Number | N286-01GSX-MDLC |
| Product Type | Multimode Fiber Transceiver |
| Network Speed | 1 Gbps |
| Maximum Data Rate | 1 Gbps |
| Fiber Type | Multimode |
| Connector A | SFP Male |
| Connector B | LC Duplex Female |
| Optical Wavelength | 850 nm |
| Transmission Distance | Up to 550 m |
| DDM Support | Yes |
| Hot-Swappable | Yes |
| MSA Compliant | Yes |
| Housing | Zinc |
