Detailed Specifications

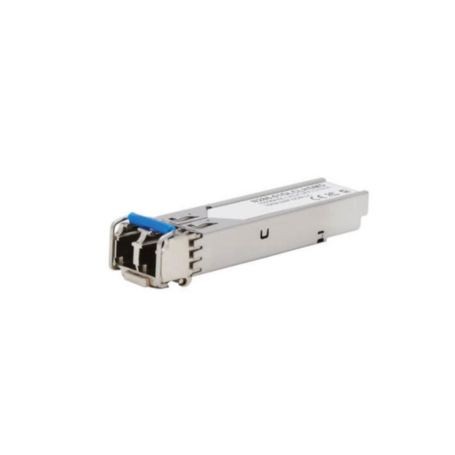

Eaton N286-01GLCLHSMD Tripp Lite Cisco-Compatible GLC-LH-SMD SFP Transceiver
Overview
The Eaton N286-01GLCLHSMD is a Tripp Lite by Eaton Cisco-compatible GLC-LH-SMD SFP transceiver for connecting 9/125 µm singlemode fiber to compatible Cisco routers, servers and switches with an SFP port. It supports 1000Base-LX/LH Gigabit Ethernet at 1310 nm with a transmission distance of up to 10 km (6.2 miles).
The MSA-compliant, hot-swappable transceiver supports DDM (Digital Diagnostic Monitoring) for monitoring operating parameters such as temperature, input/output power and supply voltage. It uses an SFP male interface on the network-device side and an LC duplex female optical interface for singlemode fiber.
Key Features
- 1 Gbps / 1.25 Gbps-class SFP transceiver for Gigabit Ethernet applications.
- Supports 1000Base-LX/LH over singlemode fiber at 1310 nm.
- Provides transmission distances up to 10 km (6.2 miles) using compatible singlemode fiber.
- DDM support enables real-time monitoring of transceiver operating parameters.
- Hot-swappable and MSA-compliant, with compatibility for Cisco network equipment.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite by Eaton |
| Part Number | N286-01GLCLHSMD |
| Product Type | Singlemode Fiber Transceiver |
| Transceiver Type | SFP |
| Compatible Cisco Model | GLC-LH-SMD |
| Brand Compatibility | Cisco |
| Application | Gigabit Ethernet Networking |
| Network Standard | 1000Base-LX/LH |
| Data Transfer Rate | 1 Gbps |
| Maximum Data Rate | 1.25 Gbps |
| Fiber Mode | Singlemode |
| Fiber Type | 9/125 µm |
| Multimode Support | No |
| Connector 1 | SFP Male |
| Connector 2 | LC Duplex Female |
| Wavelength | 1310 nm |
| Maximum Transmission Distance | 10 km (6.2 miles) |
| Digital Diagnostic Monitoring | Yes |
| Hot-Swappable | Yes |
| MSA Compliant | Yes |
| Housing | Full-metal / Zinc |
| EMI Protection | Yes |
| Operating Temperature | 32° to 158°F (0° to 70°C) |
| Storage Temperature | -40° to 185°F (-40° to 85°C) |
| Operating Humidity | 5-85% RH, non-condensing |
| Compliance | RoHS |
| UPC | 037332249289 |
| Warranty | 3-Year Limited Worldwide |
