Detailed Specifications

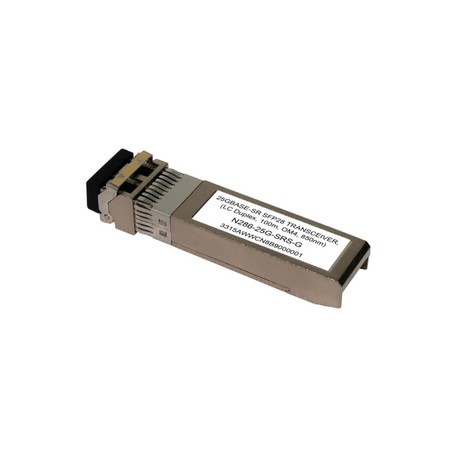

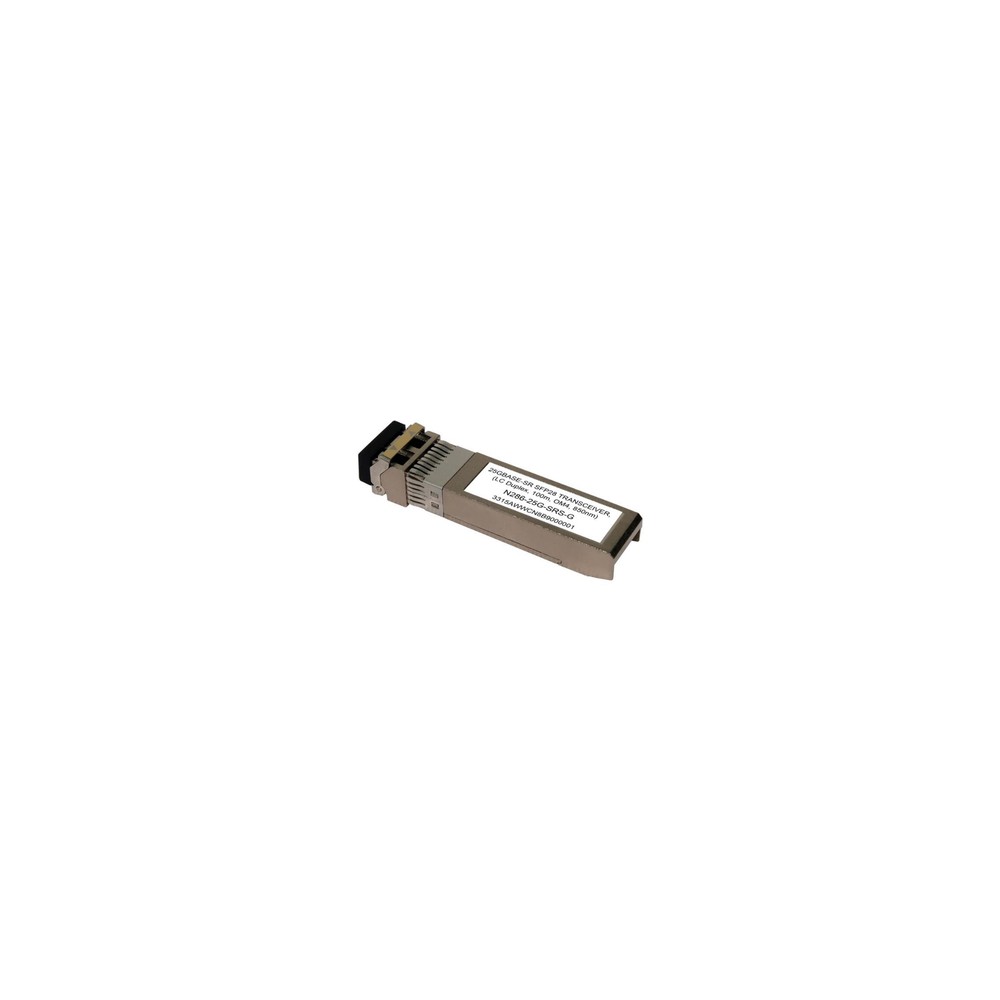

Eaton N286-25G-SRS-G 25GBase-SR SFP28 Transceiver Compatible Tripp Lite
Overview :
The Eaton N286-25G-SRS-G is a 25GBase-SR SFP28 transceiver designed to connect multimode fiber-optic cabling to a router, switch or server equipped with an SFP28 port. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton documentation identifies the transceiver as compatible with Cisco SFP-25G-SR-S and other 25GBase-SR SFP28 modules.
The transceiver supports 25 Gbps data transmission over OM4 multimode fiber at an 850 nm wavelength, with a maximum transmission distance of 100 m (328 ft.). It uses an SFP28 interface for the network device and an LC duplex female connector for the fiber connection.
The N286-25G-SRS-G is MSA compliant and hot-swappable, allowing installation or removal without powering down compatible network equipment. It also supports Digital Diagnostic Monitoring (DDM) for monitoring operating parameters such as temperature, input/output power and supply voltage.
Key Features :
- 25GBase-SR SFP28 transceiver
- Supports 25 Gbps Ethernet connectivity
- OM4 multimode fiber support
- 850 nm optical wavelength
- Up to 100 m (328 ft.) transmission distance
- LC duplex female fiber connector
- SFP28 network interface
- Cisco SFP-25G-SR-S compatible
- MSA compliant
- Hot-swappable design
- Digital Diagnostic Monitoring (DDM)
- Zinc-alloy housing for EMI protection
- Suitable for switches, routers and servers
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N286-25G-SRS-G |
| Product Type | SFP28 fiber transceiver |
| Network Standard | 25GBase-SR |
| Ethernet Technology | 25 Gigabit Ethernet |
| Maximum Data Rate | 25 Gbps |
| Optical Mode | OM4 Multimode |
| Wavelength | 850 nm |
| Transmission Distance | 100 m (328 ft.) |
| Network-Side Interface | SFP28 |
| Fiber Connector | LC Duplex Female |
| Form Factor | Hot-swappable |
| DDM Support | Yes |
| MSA Compliance | Yes |
| Connector Material | Zinc Alloy |
| Operating Temperature | 32° to 158°F (0° to 70°C) |
| Storage Temperature | -40° to 185°F (-40° to 85°C) |
| Relative Humidity | 5% to 85%, non-condensing |
| Compliance | RoHS, CE, FCC Part 15 Class B, UKCA |
| Country of Origin | China |
| UPC | 037332284037 |
