Detailed Specifications

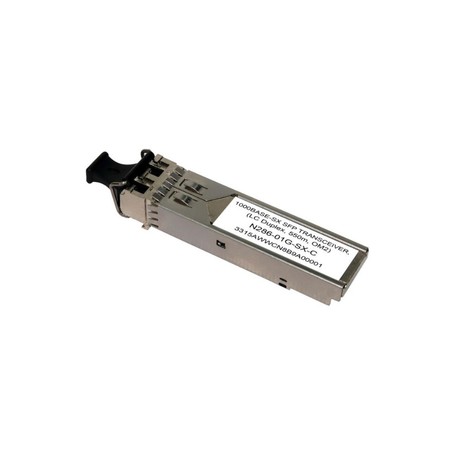

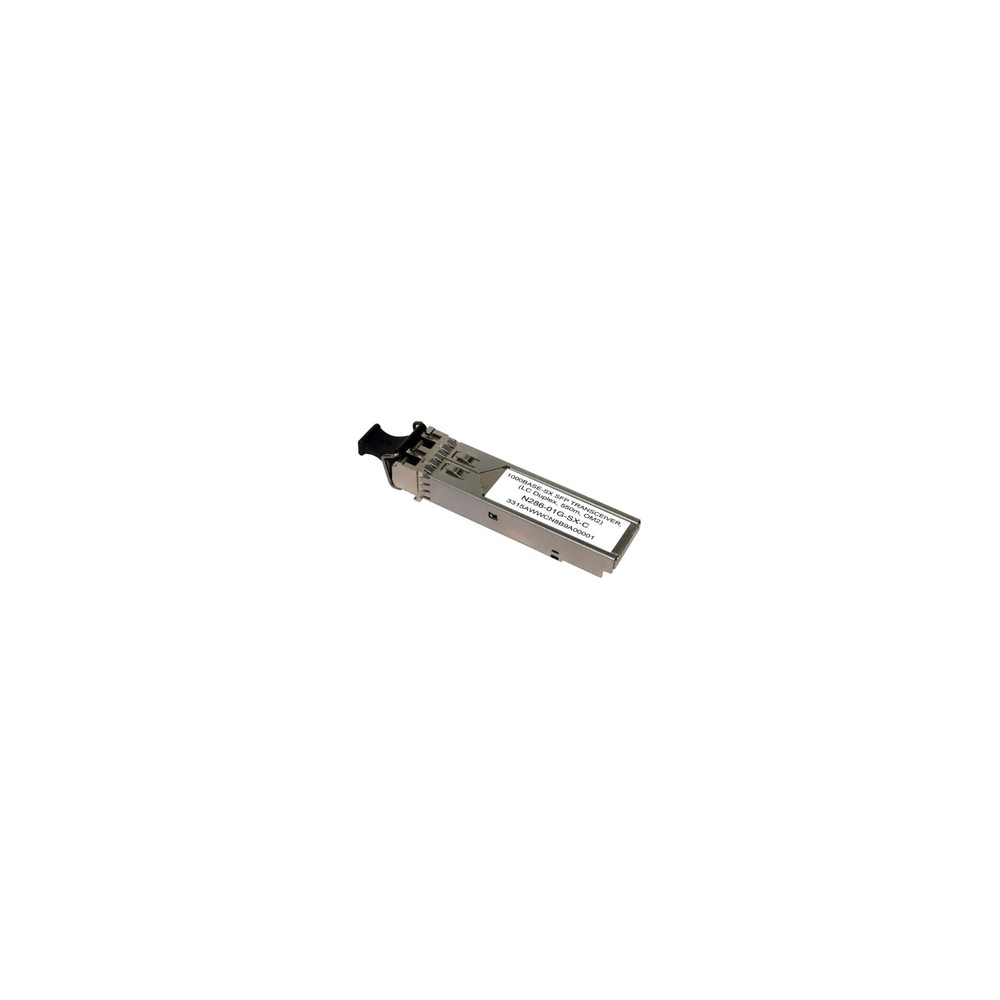

Eaton N286-01G-SX-C 1000Base-SX Transceiver Compatible Tripp Lite
Overview :
The Eaton N286-01G-SX-C is a 1000Base-SX SFP transceiver designed for connecting multimode fiber-optic network cabling to a compatible Cisco switch, server or network device with an SFP port. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies the transceiver as Cisco GLC-SX-MMD compatible.
The transceiver supports a maximum data transfer rate of 1.25 Gbps and operates at an 850 nm wavelength over OM2 multimode fiber. Eaton specifies a maximum transmission distance of 550 m (1,804 ft.) using compatible multimode fiber cabling.
The N286-01G-SX-C uses an SFP interface on the network-equipment side and an LC duplex interface for the fiber connection. It is MSA compliant and hot-swappable, allowing installation or removal without shutting down the compatible network equipment. The module also supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters.
Key Features :
- 1000Base-SX multimode fiber SFP transceiver
- Cisco GLC-SX-MMD compatible
- 1.25 Gbps maximum data transfer rate
- 850 nm optical wavelength
- OM2 multimode fiber support
- Up to 550 m (1,804 ft.) transmission distance
- SFP interface for network equipment
- LC duplex fiber connector
- MSA compliant
- Hot-swappable installation
- Digital Diagnostic Monitoring (DDM) support
- Zinc-alloy housing for EMI protection
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N286-01G-SX-C |
| Product Type | SFP multimode fiber transceiver |
| Network Compatibility | 1 Gbps Gigabit Ethernet |
| Standard | 1000Base-SX |
| Cisco Compatibility | GLC-SX-MMD |
| Maximum Data Rate | 1.25 Gbps |
| Optical Mode | OM2 Multimode |
| Wavelength | 850 nm |
| Maximum Transmission Distance | 550 m (1,804 ft.) |
| Network-Side Connector | SFP male |
| Fiber Connector | LC Duplex |
| Connector Type | Pluggable SFP |
| DDM Support | Yes |
| Hot-Swappable | Yes |
| MSA Compliance | Yes |
| Housing Material | Zinc Alloy |
