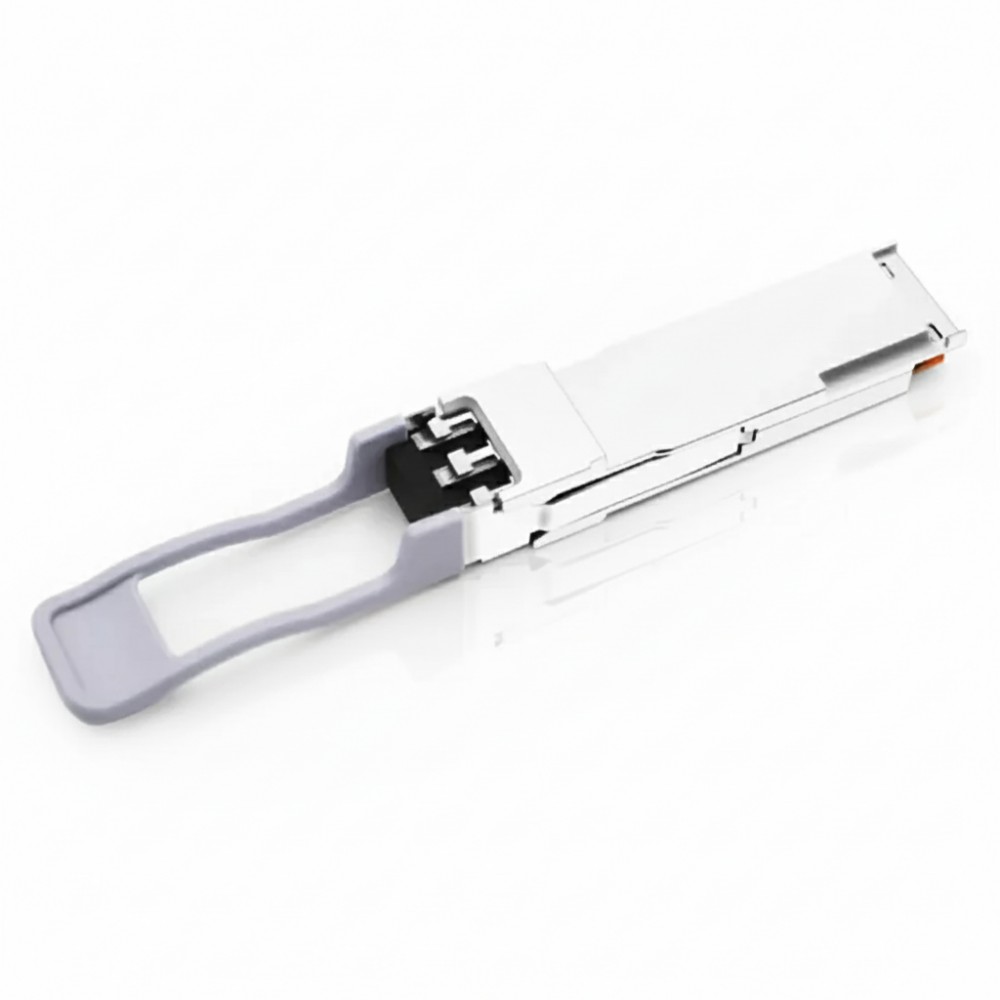

HPE Aruba JL308A 40G QSFP+ LC BiDi 150m MMF Transceiver

New

In Stock

HPE Aruba JL308A 40G QSFP+ LC BiDi 150m Multimode...

×




$968.90

  • New

Detailed Specifications

HPE JL308A

Aruba JL308A 40 Gb QSFP+ BiDi Transceiver – LC Duplex for MMF (150 m)

The Aruba JL308A is a QSFP+ bidirectional optical transceiver engineered for 40 Gbps Ethernet over duplex multimode fiber. By encoding two separate 20 Gbps channels on distinct  wavelengths across a single duplex LC pair, it enables 40 Gbps links with existing cabling—reducing stranded fibers compared to standard SR4 modules

Features

This BiDi transceiver utilizes two wavelengths—850 nm and 900 nm—with each fiber strand simultaneously carrying both transmit and receive signals.

Advanced Options

It’s supported on a wide range of Aruba/HPE switches equipped with QSFP+ ports, including the 2930M, 3810M, 6300, 8320, and 8400 series (as long as firmware is at least KB.16.04.0008 or newer) Detailed discussions on BiDi operation can be found in Aruba community forums .

Product Key Features

    •  40 Gbps BiDi over Duplex LC: Two 20 Gbps channels using 850/900 nm wavelengths over multimode fiber (OM3/OM4)

    •  150 m Reach on MMF: Ideal for data center interconnects on OM3/OM4 across duplex LC cabling

    •  Digital Optical Monitoring (DOM): For real-time diagnostics of Tx/Rx power, temperature, and voltage

    •  Hot-Swappable QSFP+ Form Factor: MSA-compliant module compatible with Aruba, HPE, and other vendors

    •  Low Power, Standard Temp Range: Operating at 0–70 °C with low power consumption

Reliability & Performance

Supports DOM/SFF‑8472 for continuous monitoring of key optical parameters via SNMP, CLI, or GUI. The module operates across a commercial temperature range (0–70 °C) and meets QSFP+ MSA and relevant environmental safety and compliance standards

Key Features (Bullet List)

  • 146GB storage capacity

  • 15,000 RPM rotational speed

  • Dual-port SAS 6Gb/s interface

  • 2.5-inch small form factor

  • Hot-pluggable for serviceability

  • Designed for HP enterprise servers

  • 64MB cache for improved performance

  • High shock/vibration resistance

  • Energy-efficient operation

  • Built for continuous enterprise workloads

SpecificationDetails
Model / SKU JL308A
Form Factor QSFP+ (1 × duplex LC; hot-swappable)
Protocol 40GBASE-SR-BiDi (40 Gbps using 2 × 20 Gbps channels)
Wavelengths 850 nm & 900 nm (BiDi)
Fiber Type OM3/OM4 multimode fiber (50/125 µm)
Max Reach 150 m over OM3/OM4
Connector Duplex LC
Tx Power –4 to +5 dBm per lane
Rx Sensitivity –6 to +5 dBm per lane
DOM Support Yes (SFF‑8472 compliant)
Operating Temperature 0 °C to 70 °C
Compliance QSFP+ MSA, BiDi specs, safety and EMC compliant
Compatibility Aruba/HPE switches (e.g., 2930M, 3810M, 6300, 8320, 8400)
