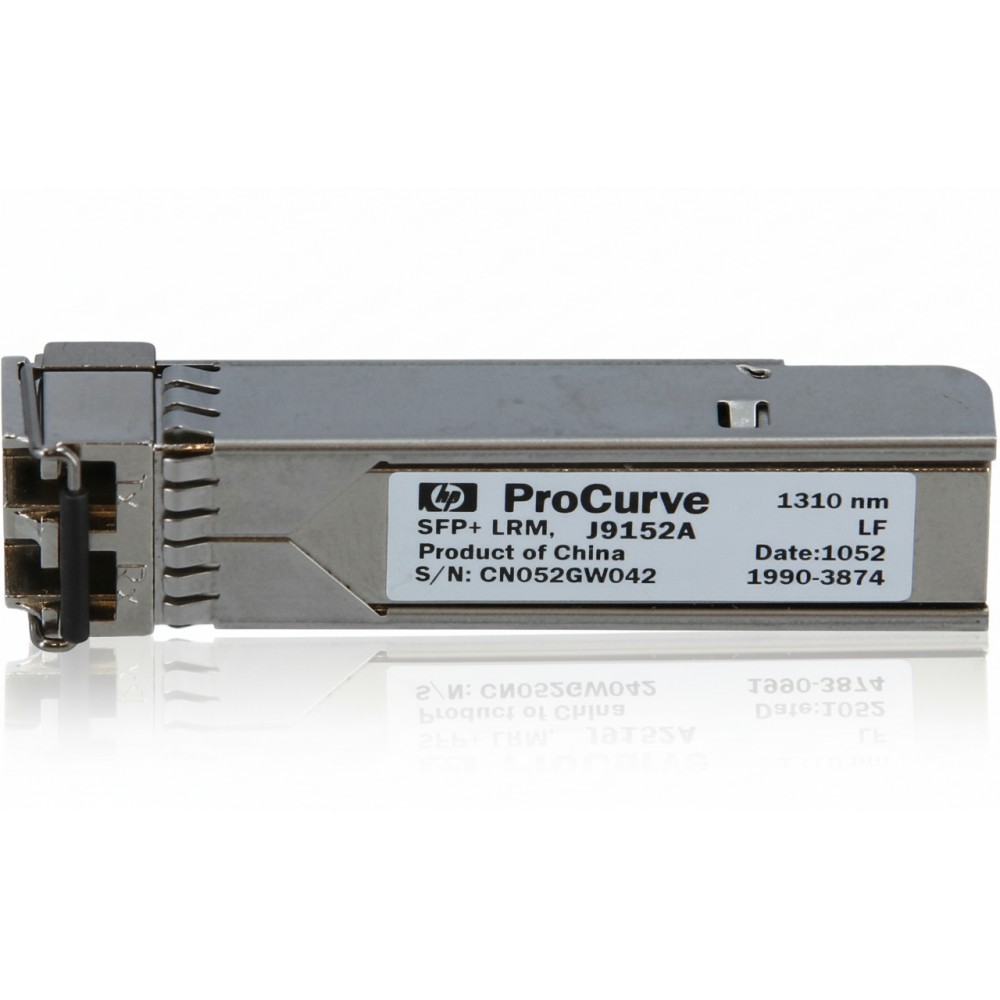

HP J9152A - 10G SFP+ LC LRM Transceiver
Overview :
This module is a 10 Gigabit Ethernet SFP+ transceiver designed for use by network engineers who require short-range multimode fibre connectivity over legacy installs. It supports the IEEE 802.3aq 10GBASE-LRM specification and allows full-duplex 10 Gb/s links up to approximately 220 m on 50/125 µm or 62.5/125 µm multimode fibre. It is suitable for data centre top-of-rack, wiring-closet aggregation and campus backbone segments where existing multimode fibre is present rather than single-mode. It plugs into standard SFP+ slots in switches, routers and transceivers that accept the form factor and enables reuse of multimode infrastructure rather than rewiring to single-mode fibre. Trained engineers appreciate its compatibility with LC duplex connectors and low power consumption.
Key Features
Supports IEEE 802.3aq 10GBASE-LRM up to ~220 m
Uses LC duplex connector for easy patch-panel integration
Hot-pluggable SFP+ form-factor for flexible deployment
Operating power consumption typically ≤ 1 W
Wavelength is 1310 nm, enabling legacy multimode fibre use
Technical Specifications
| Specification | Value |
|---|
| Brand | HP |
| Part Number | J9152A |
| Product Type | 10G SFP+ LC LRM Transceiver |
| Data rate | 10 Gb/s (supports 10.31 Gbps maximum) |
| Fibre mode | Multimode fibre (MMF) 50/125 µm or 62.5/125 µm |
| Maximum link length | Up to 220 m on 50/125 µm or 62.5/125 µm multimode fibre |
| Wavelength | 1310 nm |
| Connector type | Duplex LC |
| Form-factor | SFP+ (small form-factor pluggable, 10G) |
| Power consumption (typical) | ~0.7 W |
| Power consumption (maximum) | ~1.0 W |
| Operating temperature | 0 °C to +70 °C |
| Storage/Non-operating temperature | -40 °C to +85 °C |
| Weight | 0.04 lb (~0.02 kg) |
| Dimensions (D × W × H) | 2.19 in × 0.54 in × 0.47 in (≈ 5.57 cm × 1.38 cm × 1.19 cm) |
