Detailed Specifications

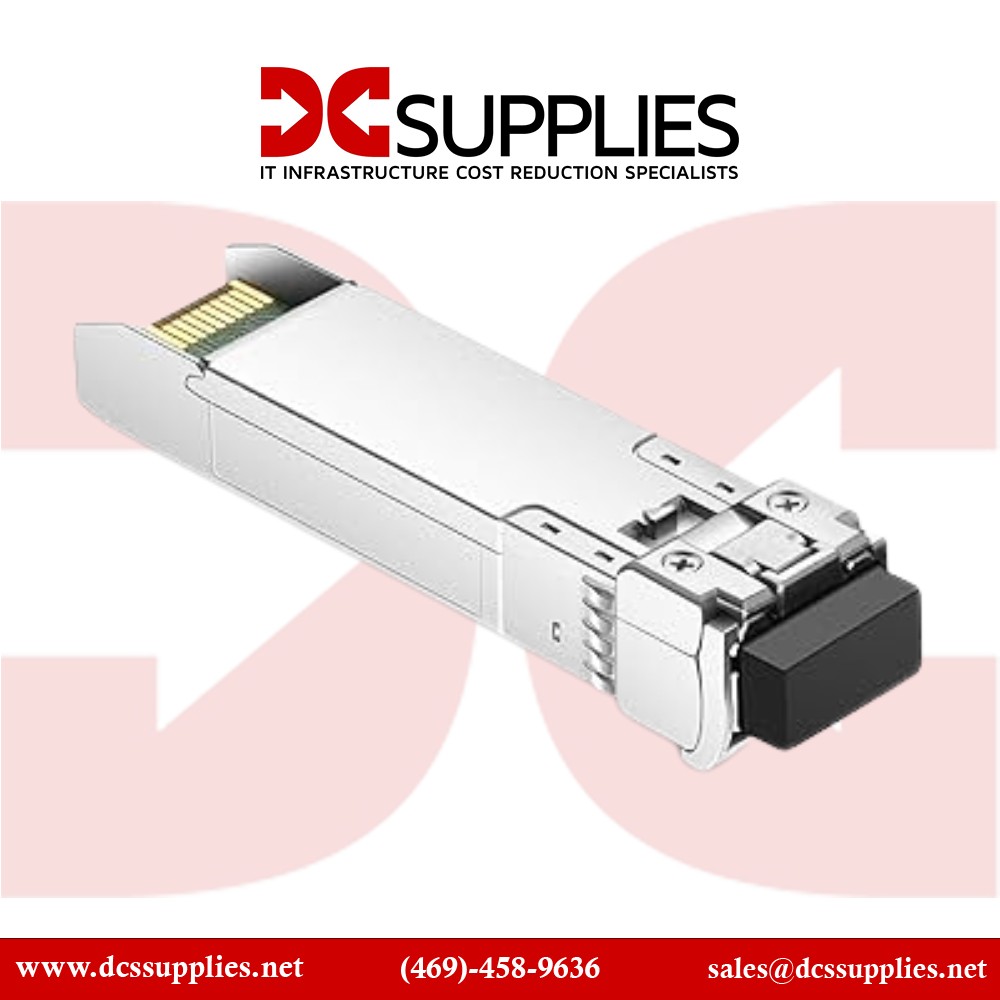

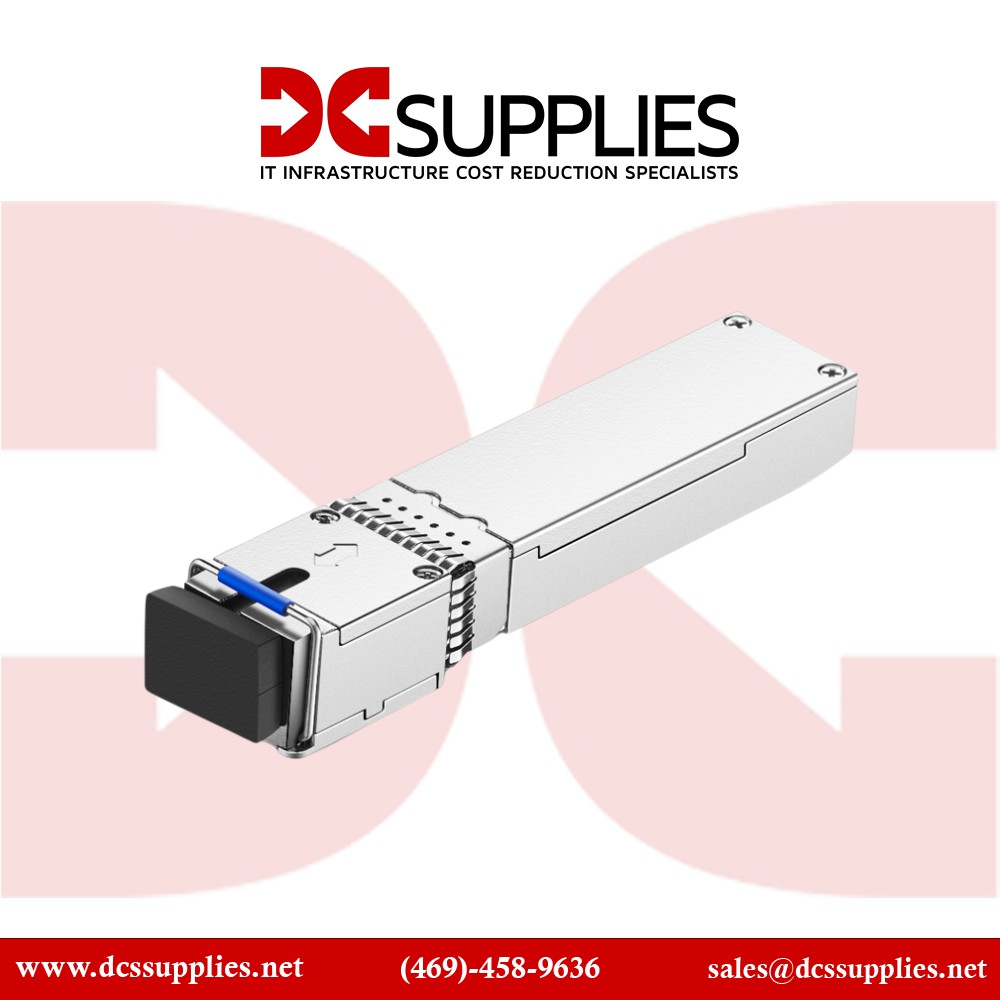

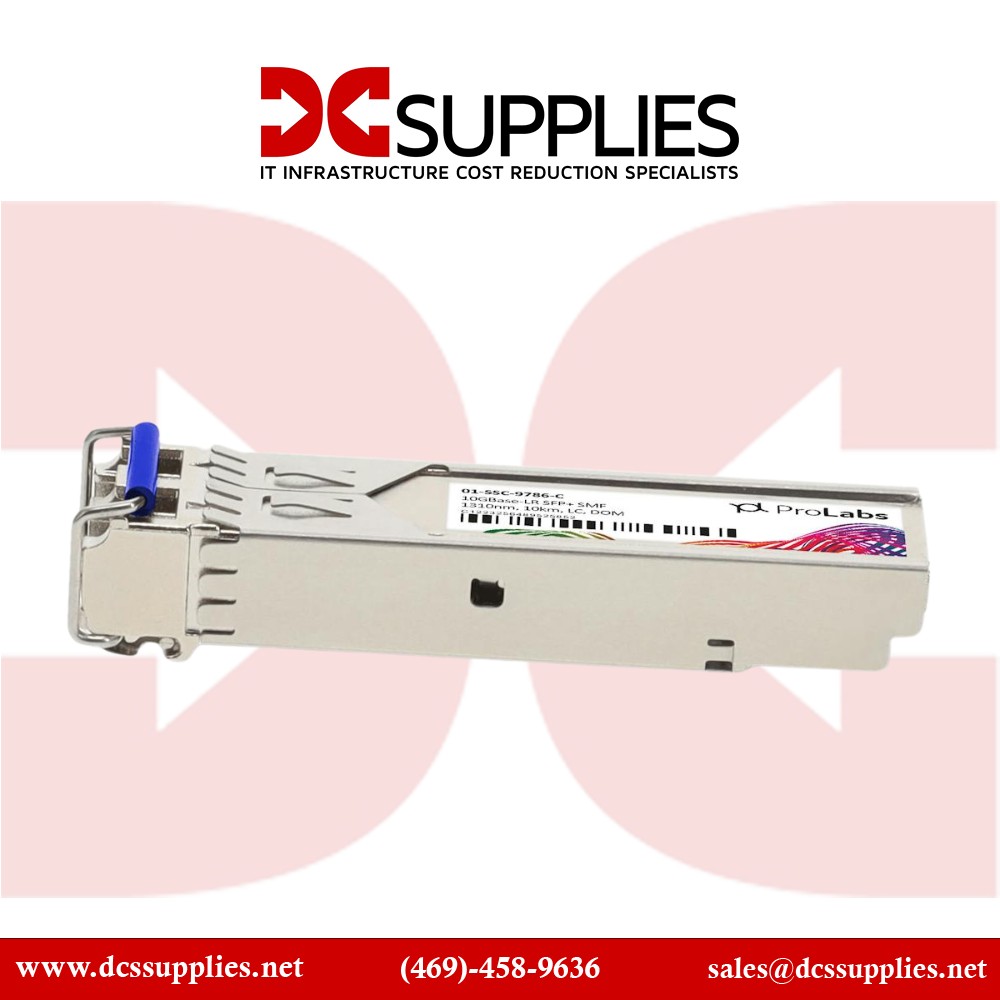

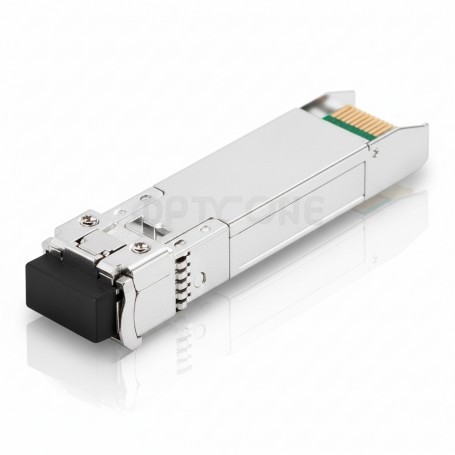

SonicWall 01-SSC-9786 - 10 Gb LR SFP+ Transceiver (10 km SMF, DOM)
Overview
The SonicWall 01-SSC-9786 is a 10G SFP+ transceiver designed to provide long-distance, high-performance fiber connectivity for SonicWall firewalls and network appliances. It operates over single-mode fiber (SMF) using a 1310 nm wavelength, and supports data transmission up to 10 km, making it ideal for connecting buildings, data center uplinks, or campus backbones.Engineered to meet SonicWall's compatibility standards, the module supports Digital Optical Monitoring (DOM), giving real-time diagnostics of parameters such as optical power, temperature, and voltage. It's hot-pluggable, so you can insert or replace it without powering down equipment.This LR module is supported on SonicWall devices like SuperMassive and NSa series firewalls that have SFP+ slots, enabling flexible deployment of long-haul fiber links with minimal latency and maximum reliability.
Key Features
10 Gbps SFP+ form factor × supports high-speed, high-capacity fiber links.
Single-mode fiber, 1310 nm × long-reach capability up to 10 km.
10 km reach × ideal for data center uplinks or building-to-building connections.
Digital Optical Monitoring (DOM) × real-time monitoring of power, temperature, and more.
Hot-pluggable design × easily install or replace without system downtime.
SonicWall compatible × listed as supported on SuperMassive, NSa, and other SonicWall platforms.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 01-SSC-9786 |
| Form Factor | SFP+ |
| Data Rate | 1.25-10.3 Gbps |
| Wavelength (Tx / Rx) | 1310 nm / 1310 nm |
| Fiber Type | Single-mode fiber (SMF) |
| Connector | Duplex LC |
| Max Reach | 10 km |
| DDM / DOM | Supported |
| Power Supply | +3.3 V |
| Power Consumption | ≤ 1.5 W (typical) |
| Operating Temperature | 0-70 °C |
| Compliance / Standards | SFF-8431, SFF-8432, IEEE 802.3ae, RoHS |
