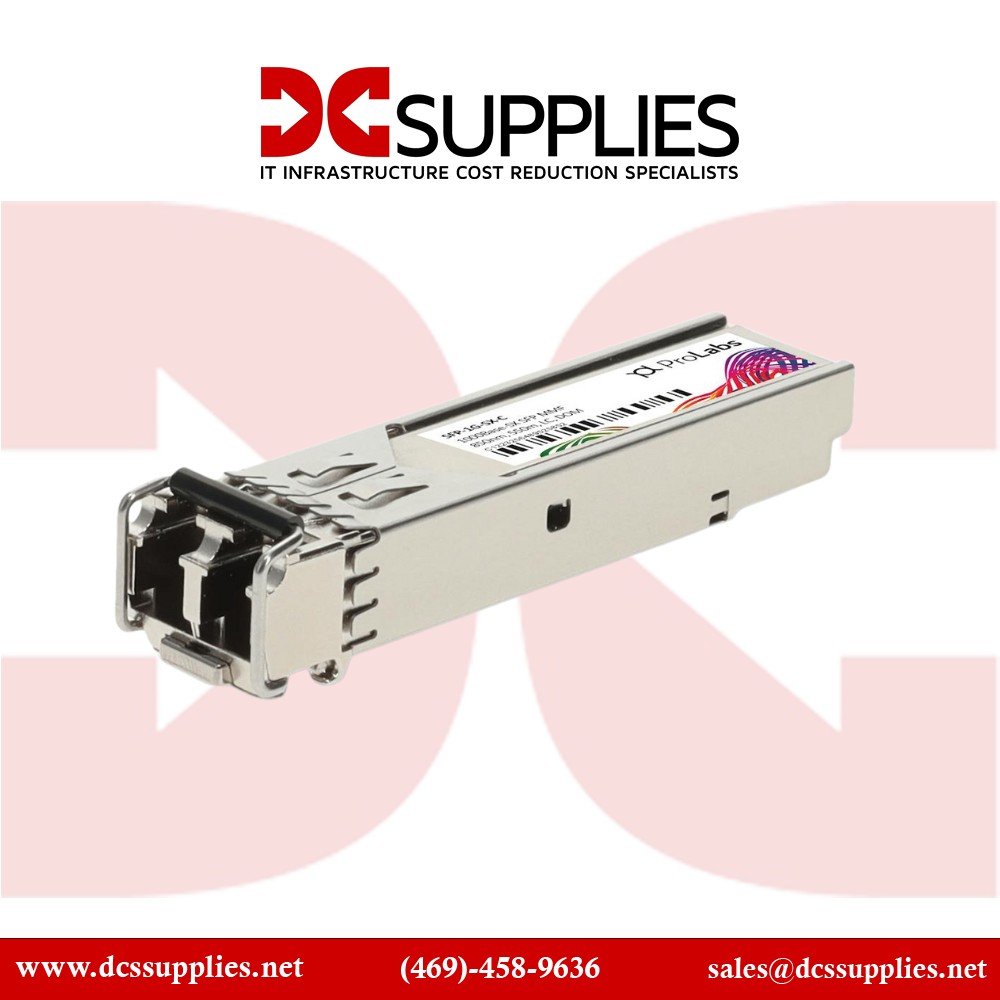

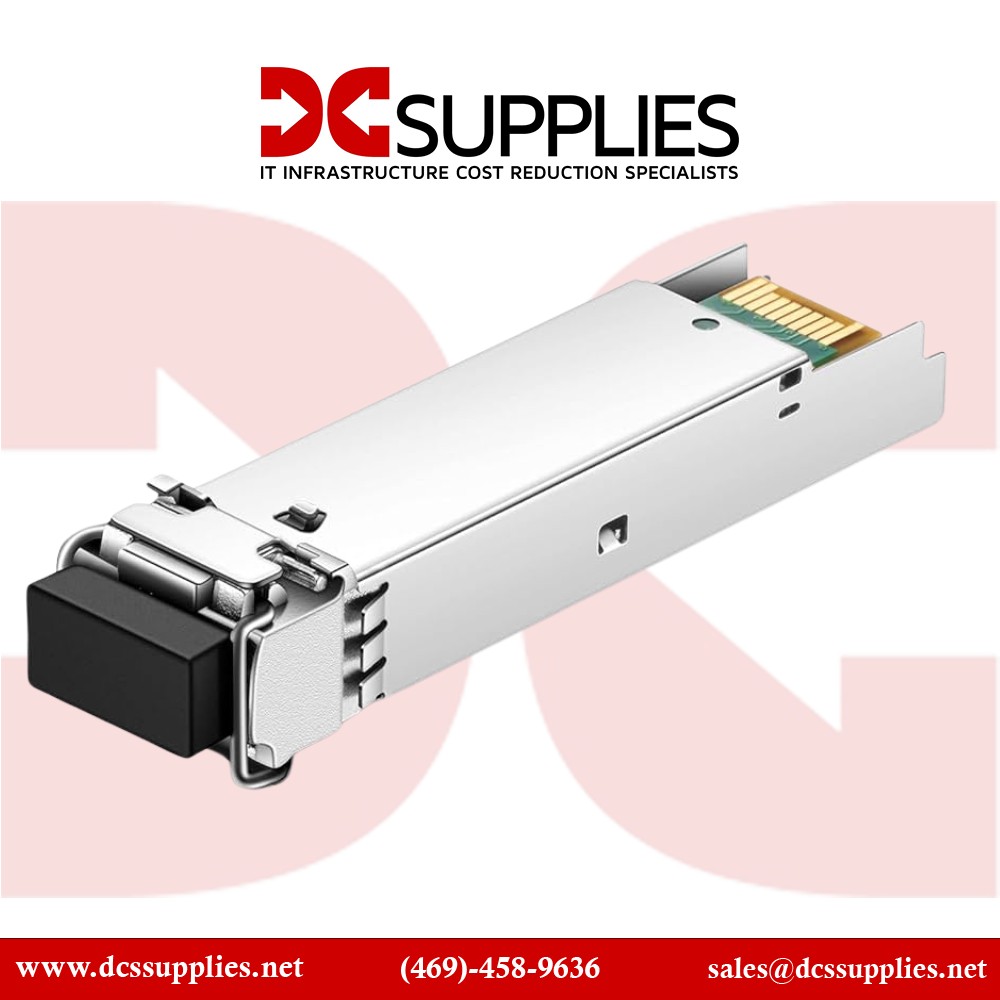

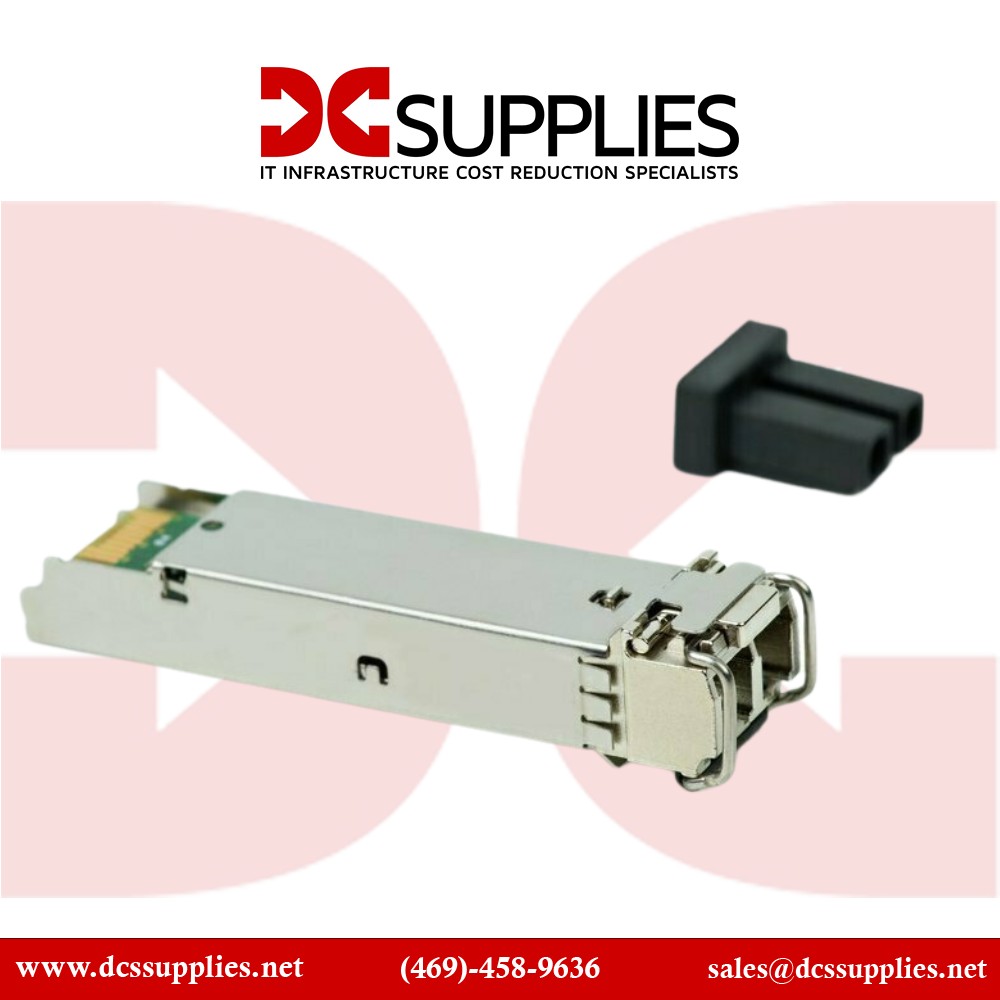

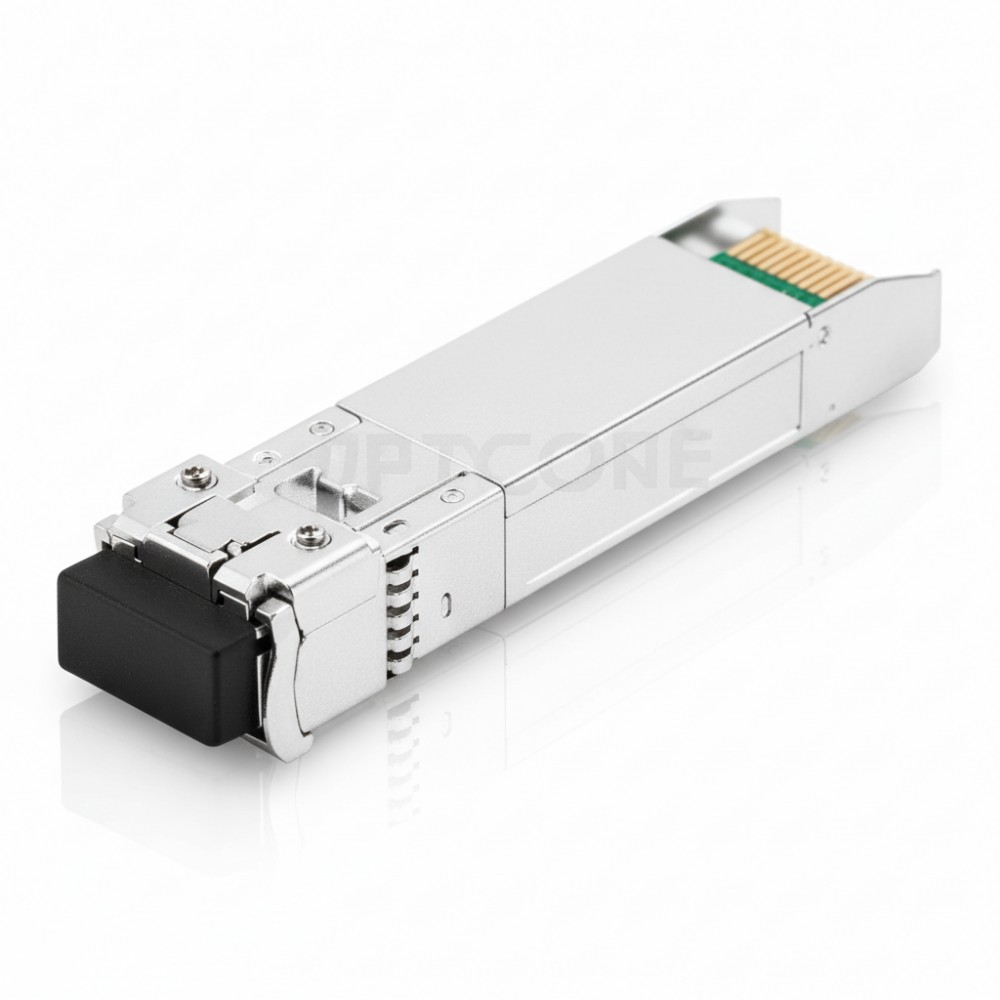

SonicWall 01-SSC-9785 10GB-SR SFP+ Transceiver

SonicWall 01‑SSC‑9785 – 10GBASE‑SR SFP+ Multimode Transceiver for 300 m Fiber Links

Overview

The SonicWall 01‑SSC‑9785 is a 10‑Gigabit SFP+ short‑reach (SR) transceiver designed for multimode fiber networks. Built to OEM standards, it supports data rates up to around 10.3 Gbps, making it a solid choice for high-speed backbone links that require reliable, low-latency optical connectivity. The part is compatible with various SonicWall appliances including SuperMassive firewalls, which support this module according to documented modules lists.It uses an 850 nm VCSEL transmitter and dual‑LC connectors, enabling duplex communication over multimode fiber (MMF). The transceiver supports DDM/DOM (Digital Optical Monitoring), allowing real‑time diagnostics of optical parameters like power and temperature—useful for maintenance and troubleshooting. It is hot-pluggable, which means you can install or replace it without powering down the device.With support for a reach up to 300 m on OM3 or OM4 multimode fiber, this module is well-suited for data center interconnects, switch-to-switch links, or high-speed uplinks inside buildings/campuses. The thermal spec covers typical data center ranges, operating from 0°C up to 70°C.

Key Features

• 10 Gbps SFP+ form factor — supports high-speed optical networking.

• 850 nm wavelength VCSEL — optimized for short-reach multimode fiber.

• 300 m reach on MMF — covers OM3/OM4 fiber applications.

• Dual‑LC connector — supports duplex fiber links.

• DDM/DOM support — provides real-time monitoring of optical parameters.

• Hot‑pluggable — easy to install or replace without powering down.

Technical Specifications
