Detailed Specifications
HPEQK724-63001

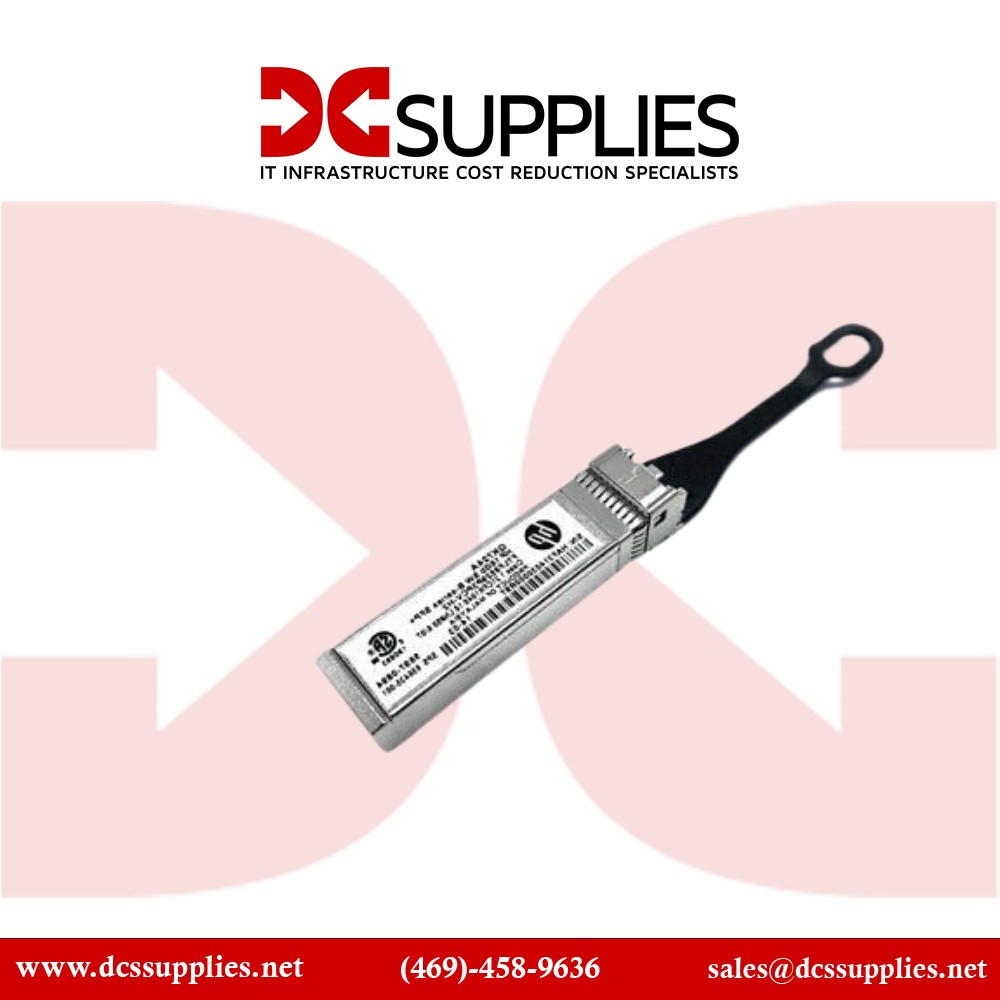

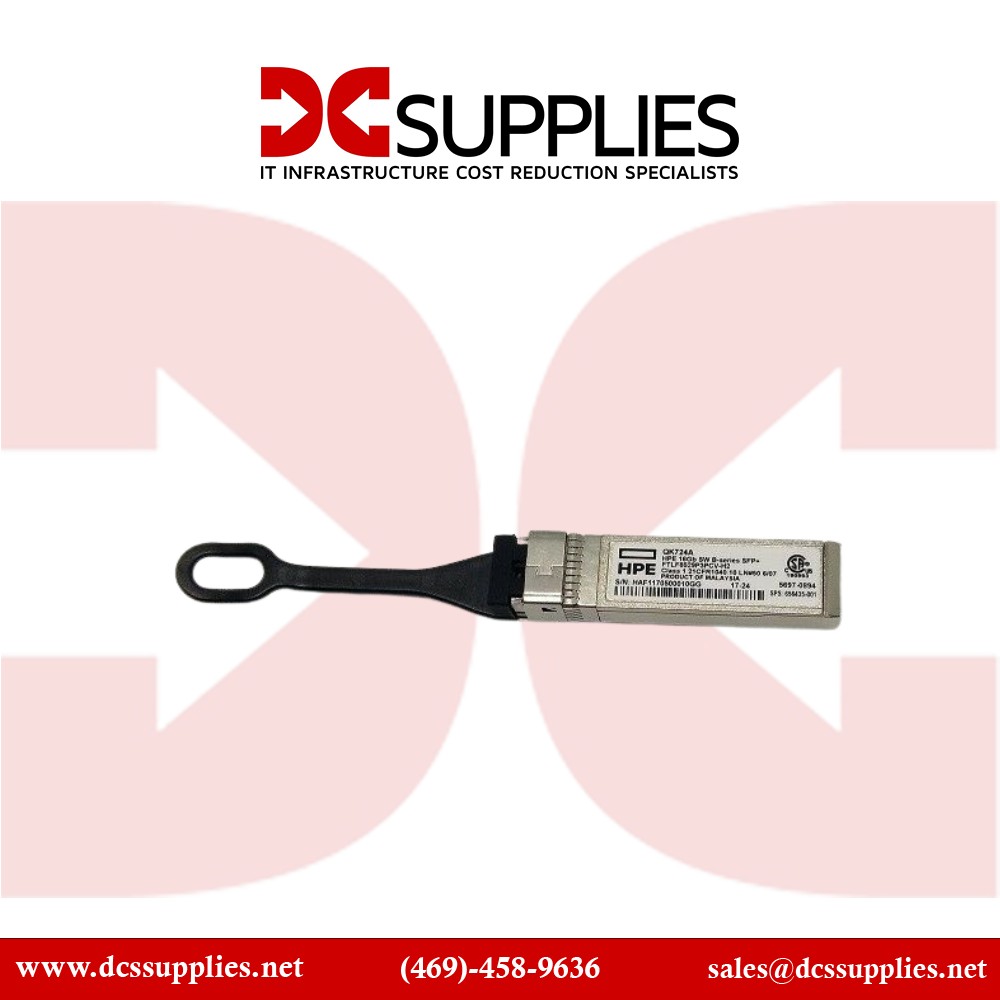

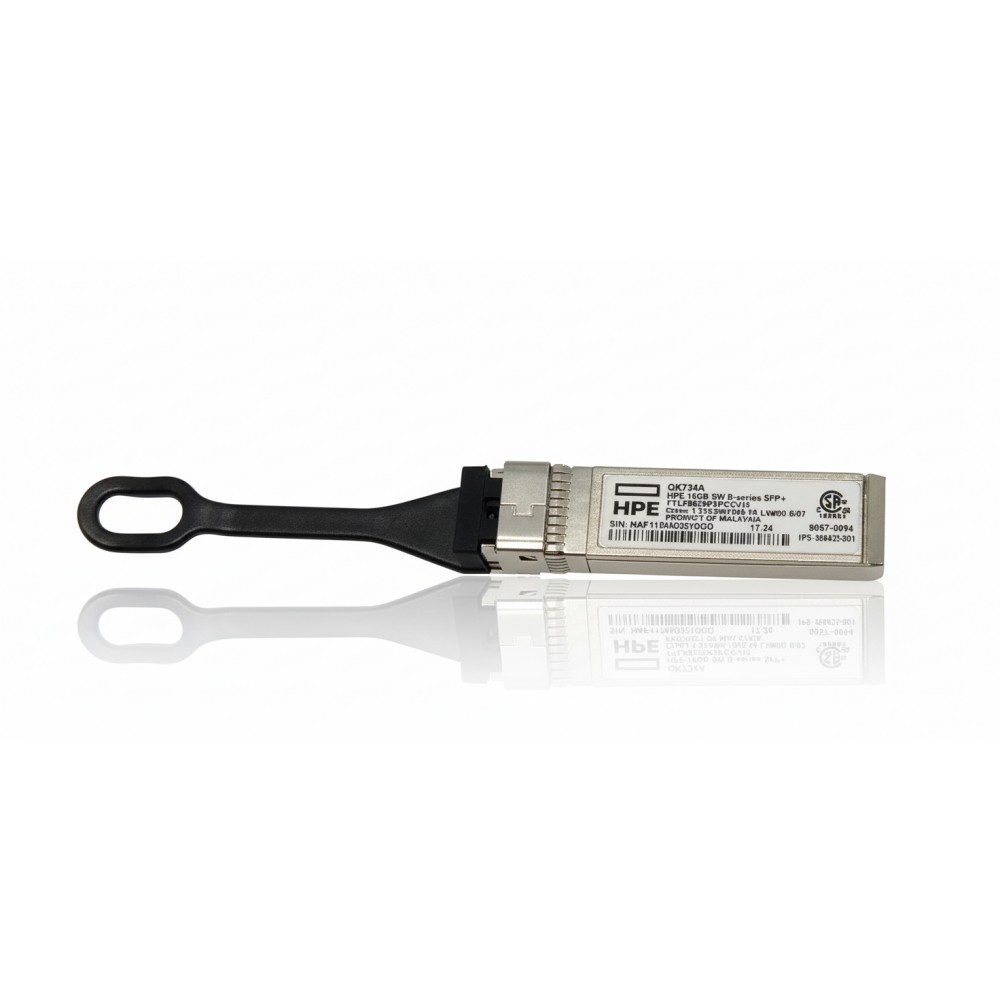

The HPEQK724-63001 is a 16Gb SFP+ shortwave Fibre Channel transceiver designed for enterprise storage networks. It enables high-speed, short-distance data transmission between Fibre Channel switches, servers, and storage systems with low latency and high reliability.
Features
Engineered for use in high-performance storage area networks (SANs), the QK724-63001 transceiver delivers 16Gbps bandwidth over multimode fiber, supporting key applications like data replication, backup, and enterprise virtualization. Its SFP+ form factor and LC duplex interface make it easy to install in compatible HPEFibre Channel switches and adapters.
Advanced Options
With support for distances of up to 125 meters on OM4 fiber, it provides a cost-effective and efficient solution for connecting core-to-edge devices in a data center. Backed by HPEreliability and compatibility assurance, it's ideal for demanding IT environments needing consistent throughput and performance.
Product Key Features
300GB enterprise-grade storage capacity
10,000 RPM for high-speed performance
SAS 6Gb/s interface ensures fast data transfer
Hot-swappable for zero-downtime maintenance
Compatible with HP ProLiant and enterprise servers
Durable, energy-efficient design for 24/7 uptime
Reliability & Performance
Built with robust optical components, the HPEQK724-63001 transceiver ensures signal integrity and reliable transmission across Fibre Channel fabrics. The module supports digital diagnostics monitoring (DDM) for real-time performance insights and includes a hot-swappable design to minimize downtime during servicing or upgrades.
Key Features :
16Gb Fibre Channel SFP+ shortwave transceiver
LC duplex connector, 850nm laser
Multimode fiber support (OM3/OM4)
Up to 100m (OM3), 125m (OM4)
Hot-swappable installation
Digital diagnostics monitoring (DDM)
Compatible with HPESAN switches and storage systems
Designed for high-density and virtualized environments
| Specification | Details |
|---|
| Model Number | QK724-63001 |
| Product Type | SFP+ Shortwave Fibre Channel Transceiver |
| Data Rate | 16Gbps |
| Form Factor | SFP+ |
| Connector Type | LC Duplex |
| Wavelength | 850nm |
| Max Distance | 100m (OM3), 125m (OM4) |
| Fiber Type | Multimode |
| Hot-Swappable | Yes |
| Digital Diagnostics | Supported (DDM) |
| Compatibility | HPEStorage, Fibre Channel Switches |
| Operating Temperature | 0°C to 70°C |
| Weight | Approx. 0.05 lb (23 g) |
