Detailed Specifications

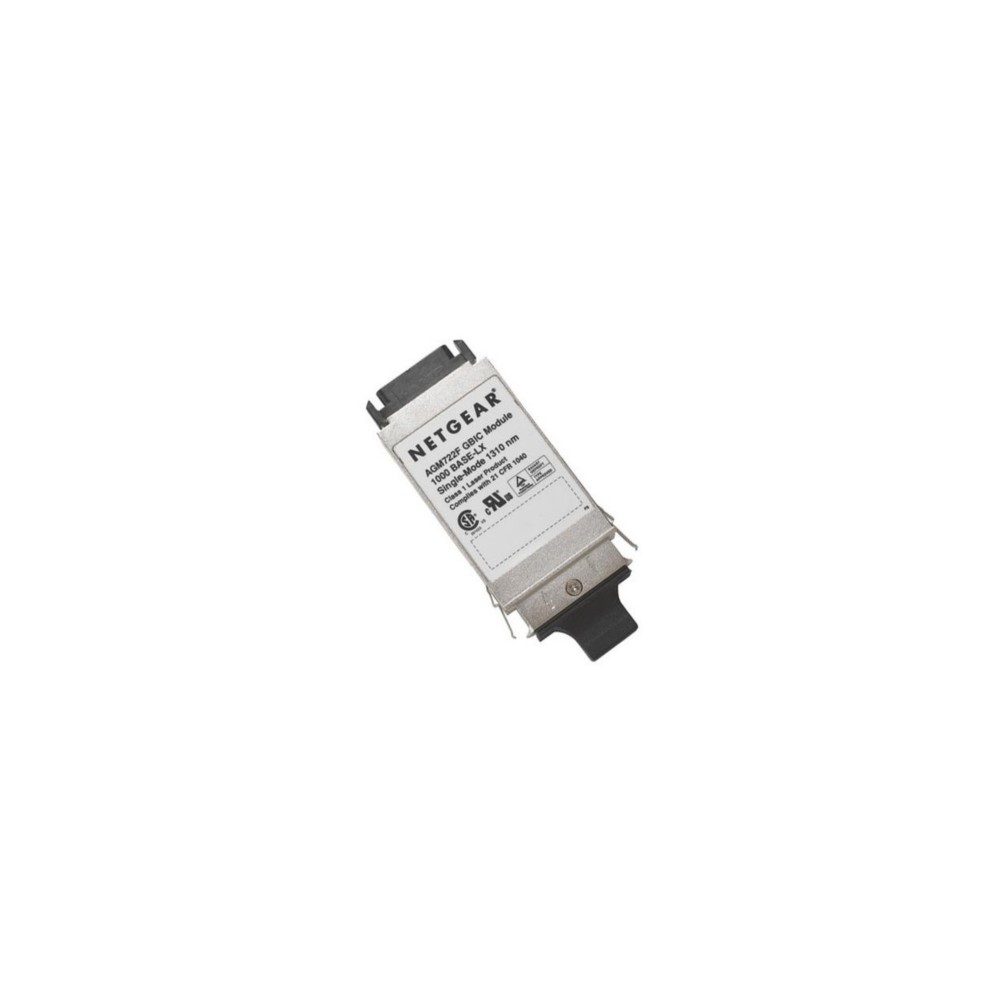

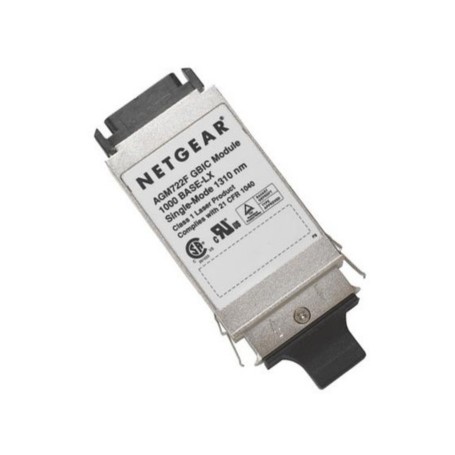

NETGEAR AGM722F 1000BASE-LX GBIC Fiber Module
Overview :
The NETGEAR AGM722F is a ProSafe Gigabit Interface Converter (GBIC) module providing 1000BASE-LX fiber connectivity for compatible NETGEAR managed switches. It uses an SC connector and 9 µm single-mode fiber.
The module supports 1 Gbps Gigabit Ethernet and a maximum operating distance of 10 km. NETGEAR specifies IEEE 802.3z and 1000BASE-LX operation with forced full-duplex mode.
It is intended for legacy NETGEAR equipment with compatible GBIC slots, including the FSM726, FSM726S, FSM750S, GSM712, and GSM712F. It should not be selected for modern SFP/SFP+ slots unless the host equipment specifically supports this GBIC form factor.
Key Features :
- 1GbE 1000BASE-LX connectivity over single-mode fiber
- SC connector supports 9 µm single-mode fiber cabling
- Provides fiber links up to 10 km for network uplinks
- GBIC form factor installs in compatible NETGEAR slots
- Designed for legacy ProSafe managed switch platforms
Specifications :
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | AGM722F |
| Product Type | GBIC Fiber Transceiver Module |
| Ethernet Standard | 1000BASE-LX |
| Data Rate | 1 Gbps |
| Connector | SC |
| Fiber Type | Single-mode |
| Fiber Core | 9 µm |
| Maximum Distance | 10 km |
| Duplex Mode | Full duplex |
| Form Factor | GBIC |
| Compatible Systems | FSM726, FSM726S, FSM750S, GSM712, GSM712F |
| Operating Temperature | 0-40°C |
| Power Consumption | 500 mW |
| MTBF | 2,093,232 hours |
