Detailed Specifications

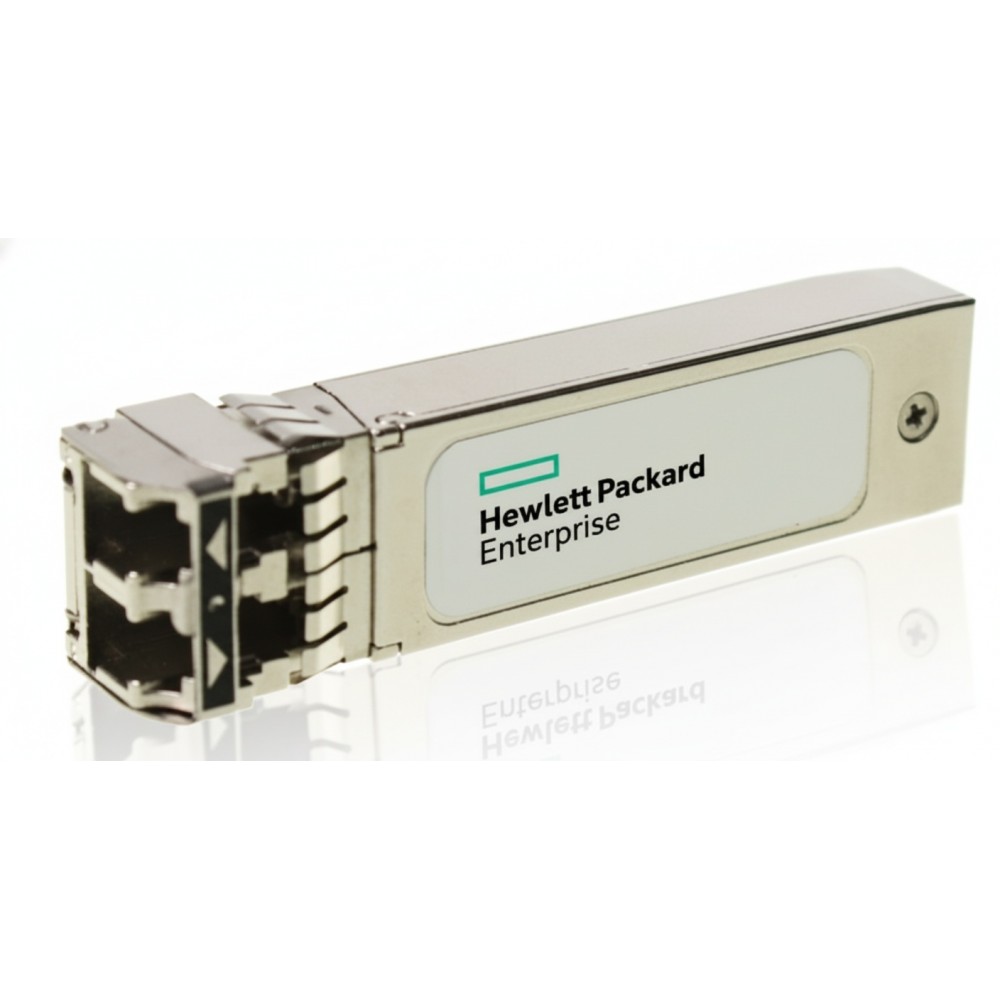

HPE Q6M30A 10GbE 300 m SFP+ SR Transceiver
Overview
The HPE Q6M30A is a 10 Gigabit SFP+ SR (short-range) transceiver, designed for multi-mode fiber environments. It operates at an 850 nm wavelength and supports link distances up to 300 meters on OM3 fiber and up to 375 meters on OM4. This module is widely used in data centers, campus networks, and high-speed server interconnects where 10 Gb Ethernet is required over MMF. It provides hot-pluggable connectivity and integrates with HPE networking hardware for high-speed uplink or switch-to-switch links.
Key Features
10 Gb/s data rate for high-speed Ethernet
850 nm VCSEL transmitter for SR multimode fiber
Duplex LC connector for fiber links
Digital Diagnostic Monitoring (DDM/DOM) support
SFP+ form factor for hot-swappable compatibility
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | Q6M30A |
| Product Type | 10 GbE SFP+ Transceiver |
| Data Rate | Up to 10.3125 Gb/s |
| Wavelength | 850 nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector | Duplex LC |
| Maximum Reach | 300 m (OM3), 375 m (OM4) |
| Power Consumption | < 1.8 W typical |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Voltage Supply | 3.3 V single-supply |
| Optical Budget | ~4.6 dB typical |
| Receiver Sensitivity | < -11.1 dBm |
| Transmitter Power | -6.5 to -1 dBm |
| Compliance | IEEE 802.3ae, SFF-8431, SFF-8432, RoHS |
| Diagnostics | DDM/DOM via I2C two-wire interface |
| Weight | ~20 g (0.044 lbs) |
