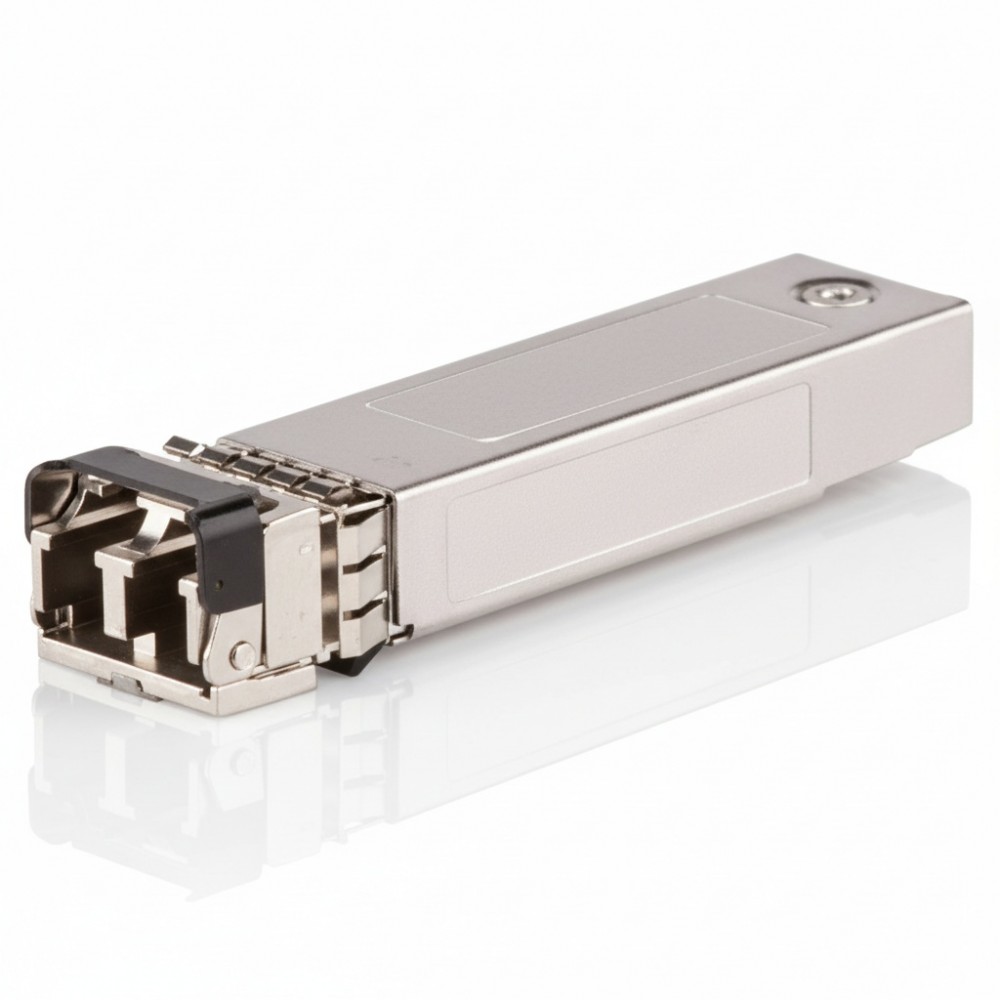

HPE 1990-4635 Aruba X132 10Gb/s 850nm 300m OM3 SFP+ Transceiver View larger

HPE 1990-4635 Aruba X132 10Gb/s 850nm SFP+ transceiver module

New

10 Gb/s multimode fibre SFP+ transceiver (up to ~300 m)
×




  • New

Detailed Specifications

HPE 1990-4635 10GBASE-SR SFP+ MMF Transceiver

Overview

The HPE 1990-4635 is a hot-pluggable SFP+ optical transceiver module designed for 10 Gigabit Ethernet links over multimode fibre. It operates with an 850 nm VCSEL laser and duplex LC connectors, making it suitable for server-to-switch and switch-to-switch uplinks in data-centre and campus networks. Rated for distances up to ~300 m over OM3 fibre, the module supports full line-rate 10 Gb/s with low latency and integrates seamlessly into HPE/Aruba networking platforms. It is ideal for high-density fibre deployments where rack-to-rack or row-to-row connectivity is required and where optical upgrades are preferred over copper cabling. With its standard SFP+ form-factor and optical compatibility, the module allows engineers to maintain full-bandwidth links while avoiding the complicating factors of active optics.

Key Features

  • 10 Gb/s link speed over multimode fibre (SFP+ form-factor)

  • 850 nm wavelength with duplex LC connectors for MMF

  • Reach up to ~300 m on OM3 multimode fibre

  • Hot-swappable SFP+ module for rapid deployment or replacement

Technical Specifications

SpecificationValue
Brand HPE
Part Number 1990-4635
Product Type 10GBASE-SR SFP+ Multimode Fibre Transceiver
Link Speed 10 Gb/s
Wavelength ~850 nm
Connector Type Duplex LC
Fibre Type Multimode fibre (50/125 µm)
Maximum Reach Up to ~300 m on OM3
Hot-Pluggable Yes
Compatible Platforms HPE/Aruba networking switches and equipment
Typical Power Consumption ≤1 W (typical)
Operating Temperature Range 0 °C to ~70 °C
Digital Diagnostics Monitoring Supported
Compliance Standards IEEE 802.3ae (10GBASE-SR)
Form Factor SFP+ module
Use Case Switch-to-switch or rack uplink via multimode fibre
