Detailed Specifications

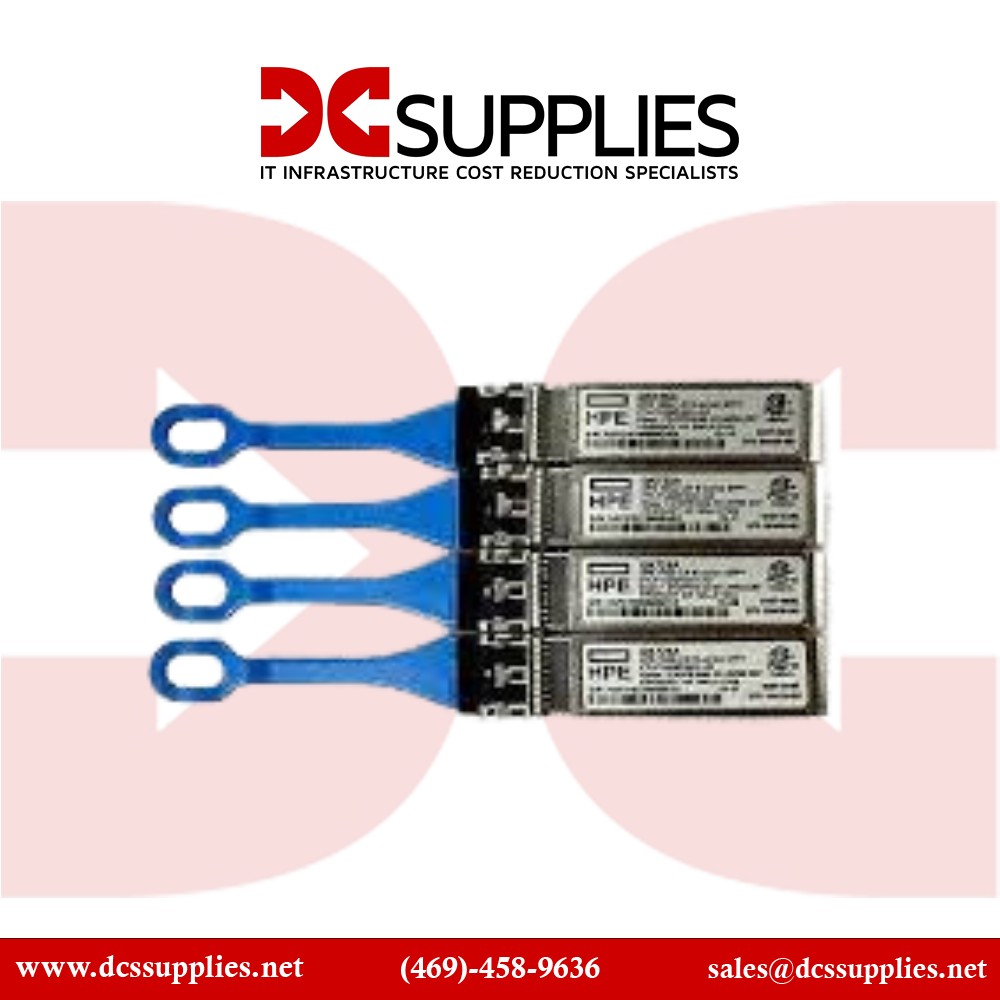

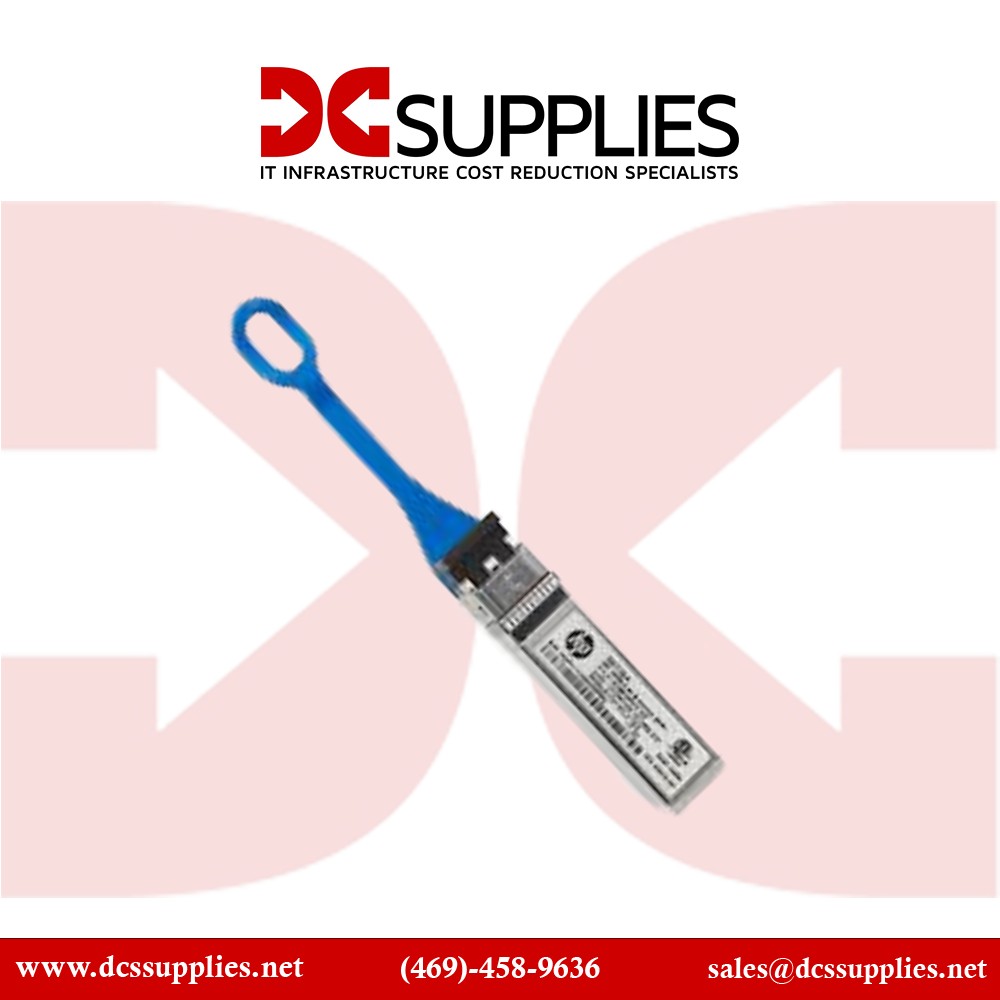

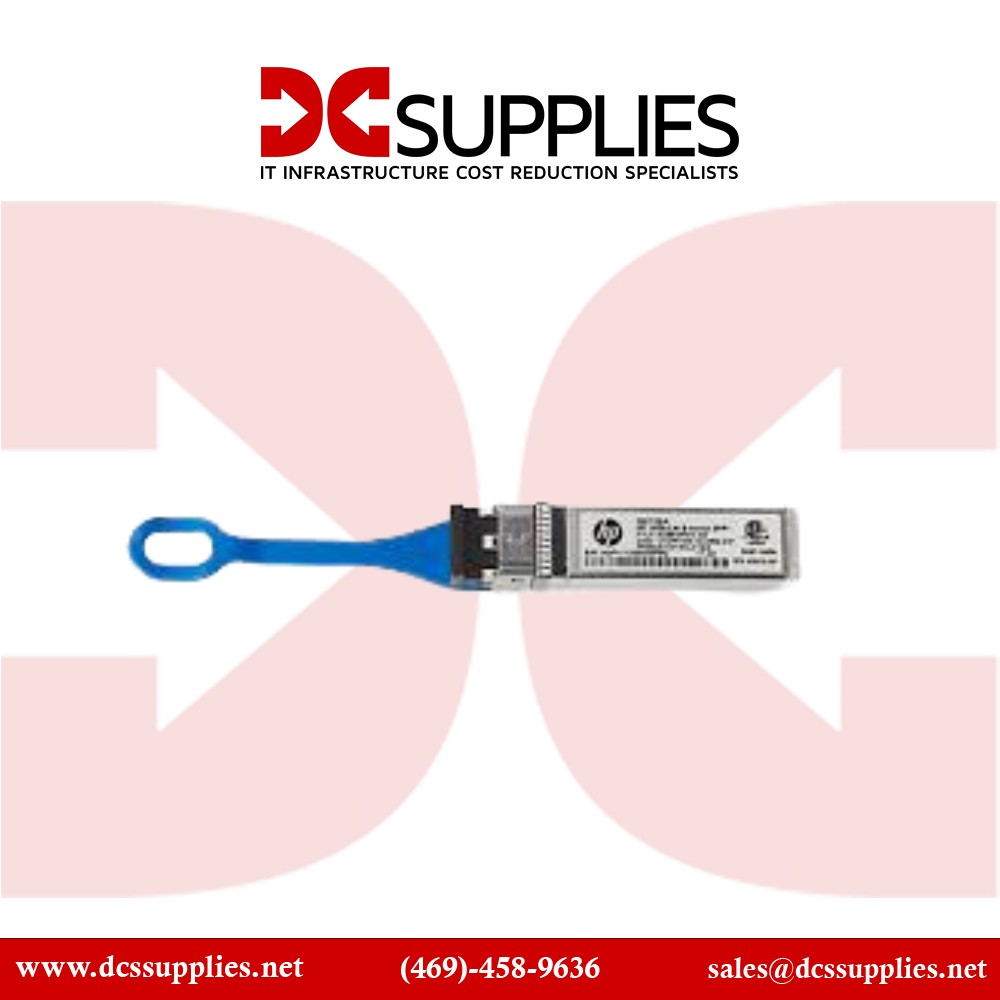

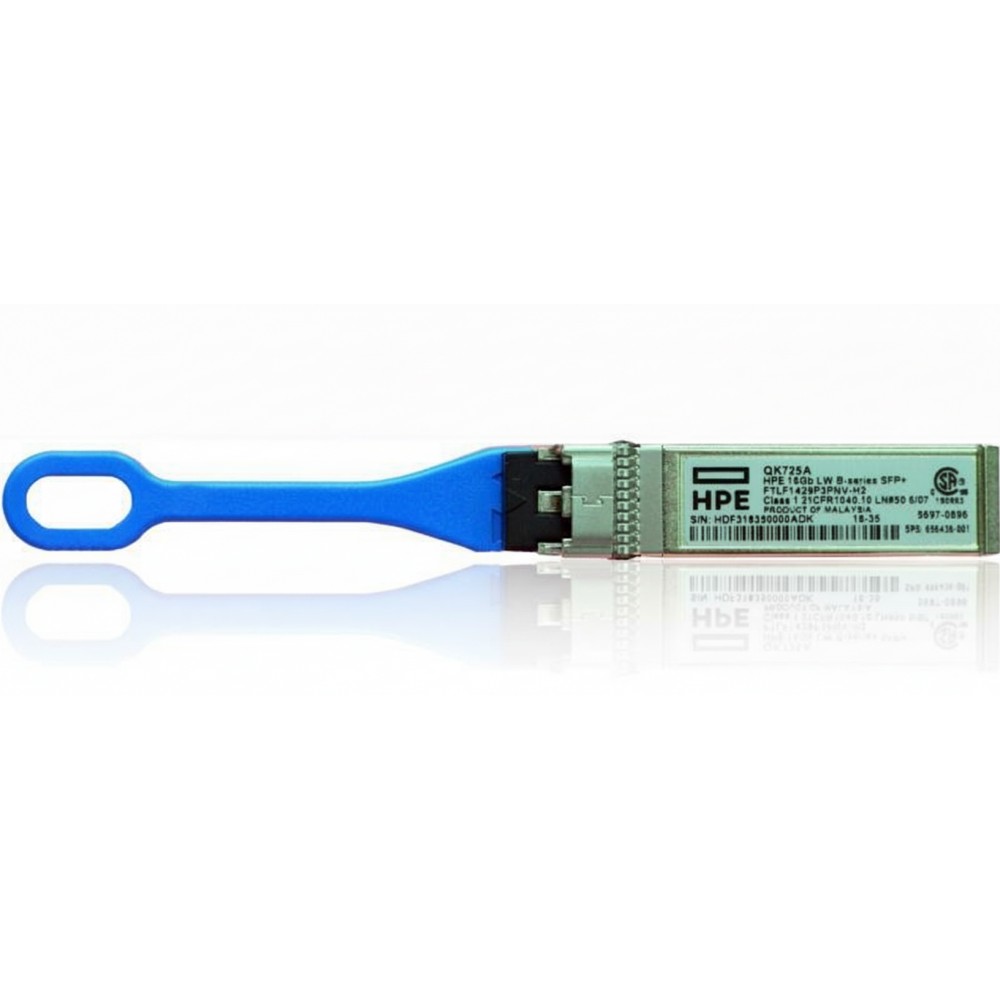

HPE QK725A - 16Gb SFP+ Long-Wave Transceiver 10 km
Overview :
The HPE QK725A is a pluggable SFP+ optical transceiver module designed for SAN and data-centre environments requiring Fibre Channel links up to 16 Gbps. It operates over single-mode fiber at a nominal wavelength of 1310 nm and supports distances up to 10 km, making it suitable for inter-rack or campus-link deployments. The module fits standard SFP+ slots and is compatible with HPE B-series switching/storage platforms, enabling straightforward upgrade paths in established infrastructures. The device also supports digital diagnostics (DOM) for real-time monitoring of optical parameters and runs in a commercial operating temperature range.
Key Features :
Supports up to 16 Gbps Fibre Channel data rate
Long-wave (1310 nm) single-mode fiber operation to 10 km
Duplex LC connector interface for industry-standard connectivity
Hot-pluggable SFP+ form factor for minimal downtime
Built-in DOM/diagnostics monitoring of optical parameters
Specifications :
| Parameter | Value |
|---|
| Brand | HPE |
| Part Number | QK725A |
| Product Type | 16 Gb SFP+ Long-Wave Transceiver |
| Nominal Wavelength | 1310 nm |
| Maximum Reach | 10 km over 9/125 µm SMF |
| Data Rates Supported | 4.25 Gbps, 8.5 Gbps, 14.025 Gbps (16 GbFC) |
| Connector Type | Duplex LC |
| Power Supply | +3.3 V DC |
| Operating Temperature | 0 °C to +70 °C |
| Optical Budget (min) | 7 dB |
| Receiver Sensitivity | ≤ 0.063 mW (~ -12 dBm) |
| Transmitter Output Power | -5 to +2 dBm (14.025 Gbps) |
| Height (H) | 0.33 in (8.5 mm) approx |
| Width (W) | 0.53 in (13.4 mm) approx |
| Depth (D) | 2.22 in (56.5 mm) approx |
| Weight | 0.044 lbs (20 g) approx |
