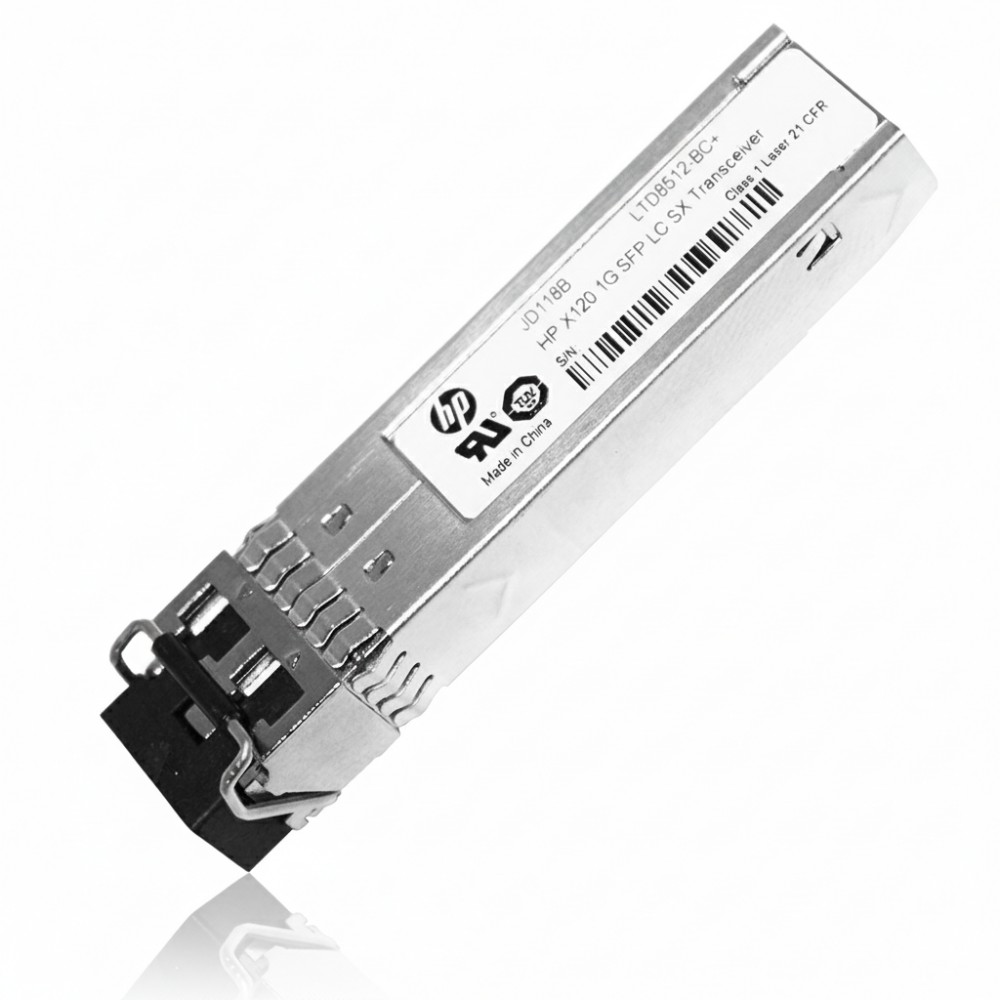

HPE JD118B X120 1G SFP LC SX network transceiver module View larger
Previous Next

HPE JD118B X120 1G SFP LC SX transceiver module

New

In Stock

×




$29.99

  • New

Detailed Specifications

HPE JD118B

X120 1G SFP LC SX Transceiver– 1 Gbps Multimode Fiber, LC Duplex

The JD118B is a 1000BASE‑SX SFP Transceiver Module engineered for Gigabit connectivity over multimode fiber.It operates at 850 nm wavelength and supports duplex LC connections for link distances up to 550 meters on OM4 fiber (275 m on OM1, 500 m on OM2), making it ideal for campus uplinks, server racks, and access-switch interconnects. With plug-and-play hot-swappability and standards-compliant operation, this module offers a compact and reliable solution for enterprise-grade fiber networks.

Features

This module integrates seamlessly into any standard SFP LC slot, delivering 1 Gbps full-duplex Ethernet over multimode fiber infrastructure. Compliant with IEEE 802.3z and SFF-8472, it includes built-in Digital Optical Monitoring (DOM) for temperature, voltage, and optical power diagnostics. Its low typical power consumption (~0.8 W max 1.0 W) ensures minimal heat output—ideal in dense fiber switch environments.

Advanced Options

Designed for enterprise environments, this module combines high signal integrity with cost-effective deployment. The DOM support enables real-time diagnostics for link health, facilitating proactive maintenance.

Product Key Features

    • 1 Gbps data rate (1000BASE‑SX over MMF)

    • Duplex LC fiber interface

    • 850 nm wavelength

    • Up to 550 m reach on OM4 fiber (275 m OM1, 500 m OM2)

    • Low power draw (~0.8 W typical, ≤1.0 W max)

    • DOM support for optical diagnostics

    • Hot-swappable SFP form factor

Reliability & Performance

 With a small lightweight form factor and plug-and-play design, it simplifies installation and replacement. Tested to meet OEM performance and compatibility standards, it offers dependable Gigabit fiber connectivity with minimal operational overhead.

Key Features :

  • 1000BASE‑SX SFP Transceiver

  • Duplex LC connector

  • 850 nm wavelength over multimode fiber

  • Reach up to 550 m (OM4), 500 m (OM2), 275 m (OM1)

  • Power consumption ~0.8 W typical, ≤1.0 W max

  • SFF‑8472 Digital Optical Monitoring supported

  • Hot-pluggable MSA-compliant module

SpecificationDetails
Model Number JD118B
Product Category 1 Gbps SFP SX SFP Transceiver Module
Data Rate 1 Gbps (1000BASE‑SX)
Wavelength 850 nm
Fiber Type Multimode Fiber (MMF)
Maximum Reach 275 m (OM1) / 500 m (OM2) / up to 550 m (OM4/MMF)
Connector Type Duplex LC
Power Consumption 0.8 W typical; ≤1.0 W max
DOM Support Yes, per SFF‑8472
Form Factor Hot-swappable SFP module
Standards Compliance IEEE 802.3z, SFF‑8472
Dimensions (DxWxH) ~55.1 mm × 15.2 mm × 11.7 mm
Weight Approx. 0.02 kg
Operating Temperature 0 °C to 70 °C
