Detailed Specifications

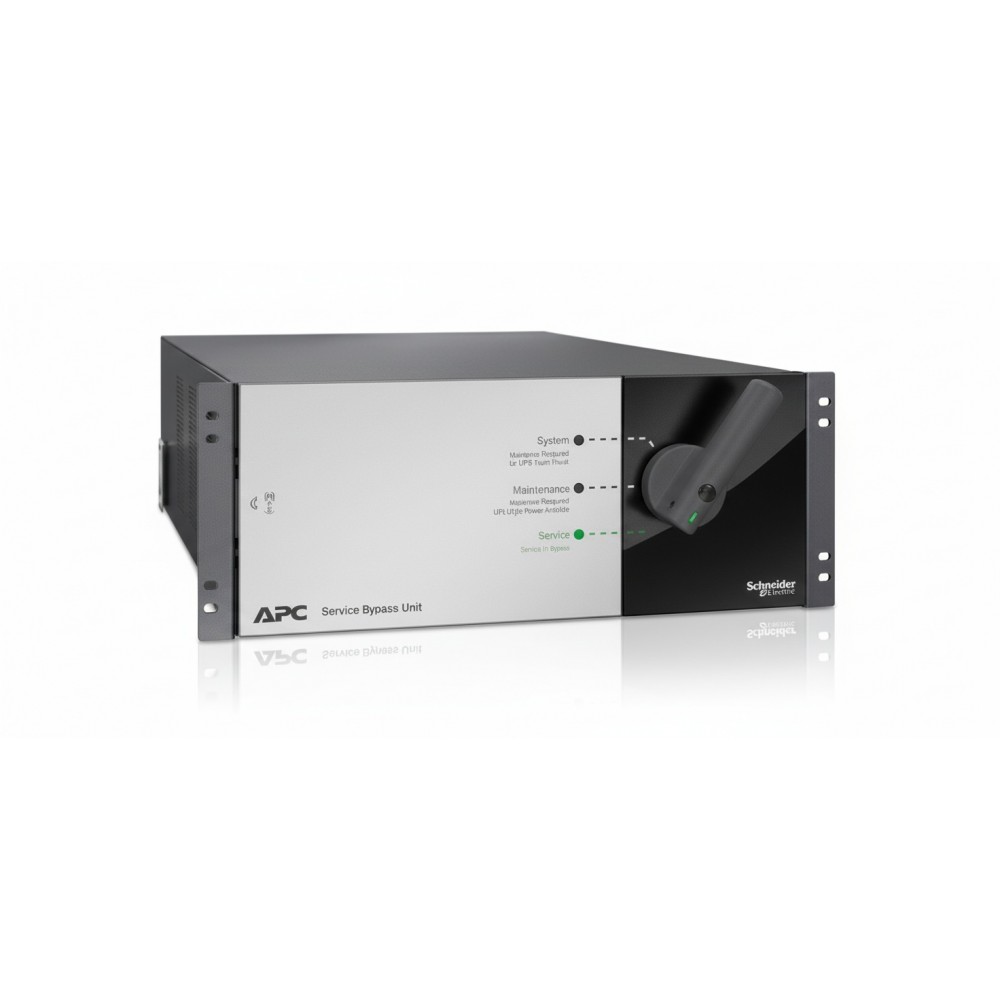

APC SRYLSBP20KP - Service Bypass Unit (200/208/230/240 V)
Overview :
The APC SRYLSBP20KP is a dedicated service bypass unit designed for insertion into a UPS system to allow uninterrupted service during maintenance. An engineer installs this unit so that the utility supply can bypass the UPS while the UPS is being serviced, thereby preventing downtime in critical power applications. It supports input and output voltage of 200/208/230/240 V and a maximum current of 125 A, enabling it to handle significant load levels found in data centre or enterprise-class modules. This module is suited for rack-mounted installation (4U height) within environments such as server rooms, network closets, or data centre enclosures, where the associated UPS system (e.g., Smart-UPS Modular Ultra) resides. It integrates seamlessly into the broader power infrastructure and leverages the OEM's enclosure and mounting architecture for consistent deployment across branch, campus, or full-scale data centre installations.
Key Features
Supports 200/208/230/240 V input and output voltage range
125 A maximum line current rating for heavy loads
Rack-mountable 4U form-factor for standard cabinets
Hardwire input/output configuration (MBB) for direct connection
Lock-out/tag-out (LOTO) provision to prevent unintended bypass
Technical Specifications
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRYLSBP20KP |
| Product Type | Service Bypass Unit |
| Input Voltage Range | 200 / 208 / 230 / 240 V AC |
| Rated Current | 125 A |
| Load Capacity | 20 kW (as referenced) |
| Rack Height | 4 U (6.9 in / 175 mm) |
| Width | 17.0 in / 432 mm |
| Depth | 29.7 in / 755 mm |
| Net Weight | 50.7 lbs (23 kg) |
| Operating Ambient Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature Range | -22 °F to 158 °F (-30 °C to 70 °C) |
| Operating Altitude | 0 to 9,842 ft (0 to 3,000 m) |
| Warranty Period | 5 years (repair or replace) |
