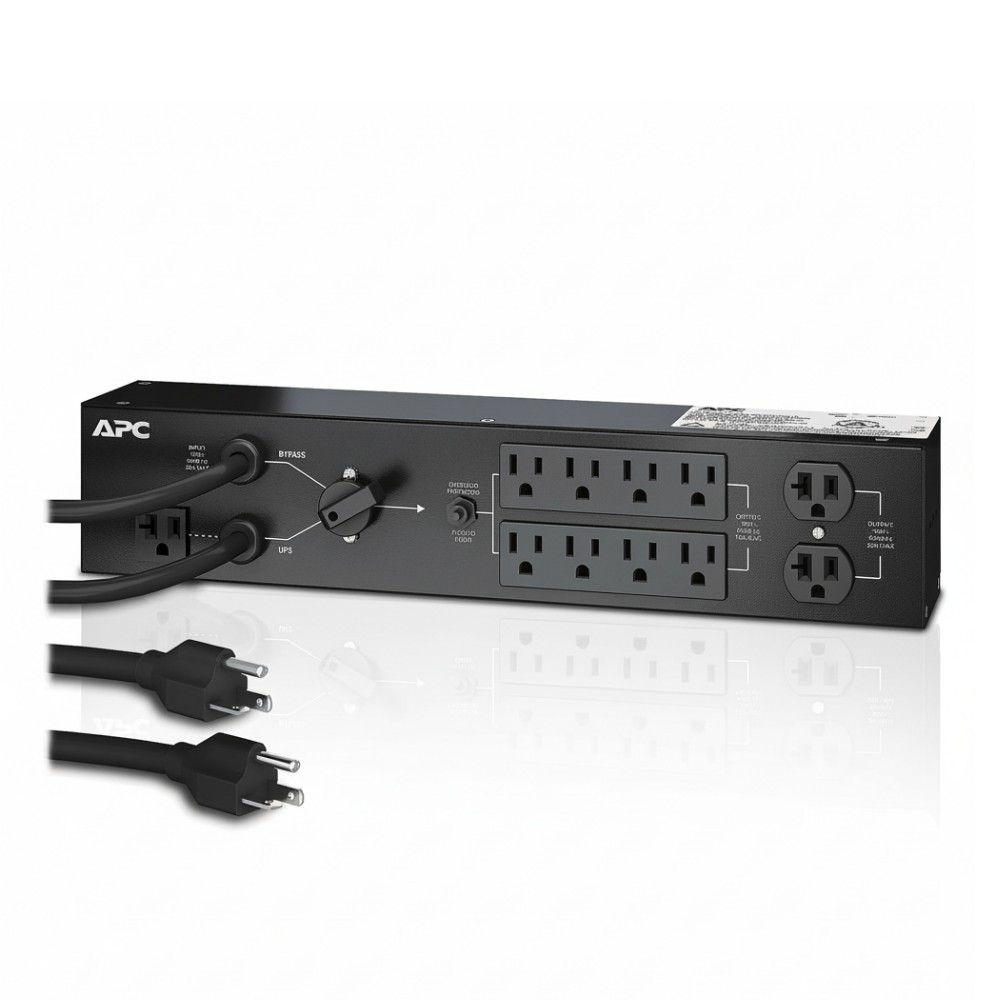

APC SBP2200RM Service Bypass Panel Bypass PDU

The APC SBP2200RM is a robust rack-mount service bypass Power Distribution Unit (PDU) engineered to ensure continuous power availability to critical IT infrastructure. This device allows for the complete isolation and servicing of an Uninterruptible Power Supply (UPS) without interrupting the power supply to connected equipment. It serves as an essential component for maintaining high availability in data centers, server rooms, and network closets where uptime is paramount.

Designed for seamless integration into existing rack environments, this service bypass panel is compatible with popular APC UPS products, including InfraStruXure® Type A, Smart-UPS, and Symmetra units. It features a 2U form factor, optimizing space within crowded racks while providing the critical functionality to perform routine UPS maintenance or replacement without downtime. The unit supports a 120V 20A input and distributes power through a combination of NEMA 5-15R and NEMA 5-20R outlets, catering to a variety of connected devices.

Deployment is straightforward, with standard rack-mounting brackets included for secure installation. The panel’s clear bypass/UPS switch simplifies power transfer, allowing IT staff to confidently switch the load between the UPS and the incoming utility supply for maintenance procedures. This ensures that operational continuity is preserved, making the SBP2200RM an invaluable tool for IT managers focused on maximizing system uptime and streamlining power infrastructure management.

• Allows UPS maintenance without interrupting connected loads.
• Provides 6 NEMA 5-15R and 2 NEMA 5-20R output outlets.
• Features 2U rack-mount design for easy integration.
• Manual transfer switch ensures continuous utility power supply.
• Integrated circuit breaker offers overload protection.
