| Type |
Server |
| Product Form Factor |
Rack-mountable - 2U |
| Built-in Devices |
Battery |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| CPU |
Intel Xeon Gold 5118 / 2.3 GHz |
| Max Turbo Speed |
3.2 GHz |
| Number of Cores |
12-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| CPU Upgradability |
Upgradable |
| Chipset Type |
Intel C621 |
| Installed Size |
L3 cache - 16.5 MB |
| Cache Per Processor |
16.5 MB |
| Technology |
DDR4 SDRAM |
| Effective Memory Speed |
2666 MHz |
| Rated Memory Speed |
2666 MHz |
| Memory Specification Compliance |
PC4-20800 |
| Form Factor |
DIMM 288-pin |
| Slots |
24 (total) |
| RAM Supported |
PC4-20800 3.072 TB Load-Reduced ¦ PC4-20800 768 GB registered |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
HPE Smart Array P408i-a |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size |
2 GB |
| Monitor Type |
None. |
| Video Interfaces |
VGA |
| Ethernet Ports |
4 x Gigabit Ethernet |
| Ethernet Controller |
HP 331i |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol |
SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller |
Integrated Lights-Out 5 |
| Features |
Wake on LAN (WoL), PXE support |
| Bays |
1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Interfaces |
1 x HP iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x H ... |
| Compliant Standards |
AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Nominal Voltage |
AC 120/230 V (50/60 Hz) |
| Power Provided |
800 Watt |
| OS Certified |
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server ... |
| Service & Support |
Limited warranty - parts and labor - 3 years - on-site |
| Width |
17.5 in |
| Depth |
26.7 in |
| Height |
3.4 in |
| Weight |
32.85 lbs |
| Min Operating Temperature |
50 °F |
| Max Operating Temperature |
95 °F |
| Humidity Range Operating |
8 - 90% (non-condensing) |
| Sound Emission |
31 dBA |
| Product Description |

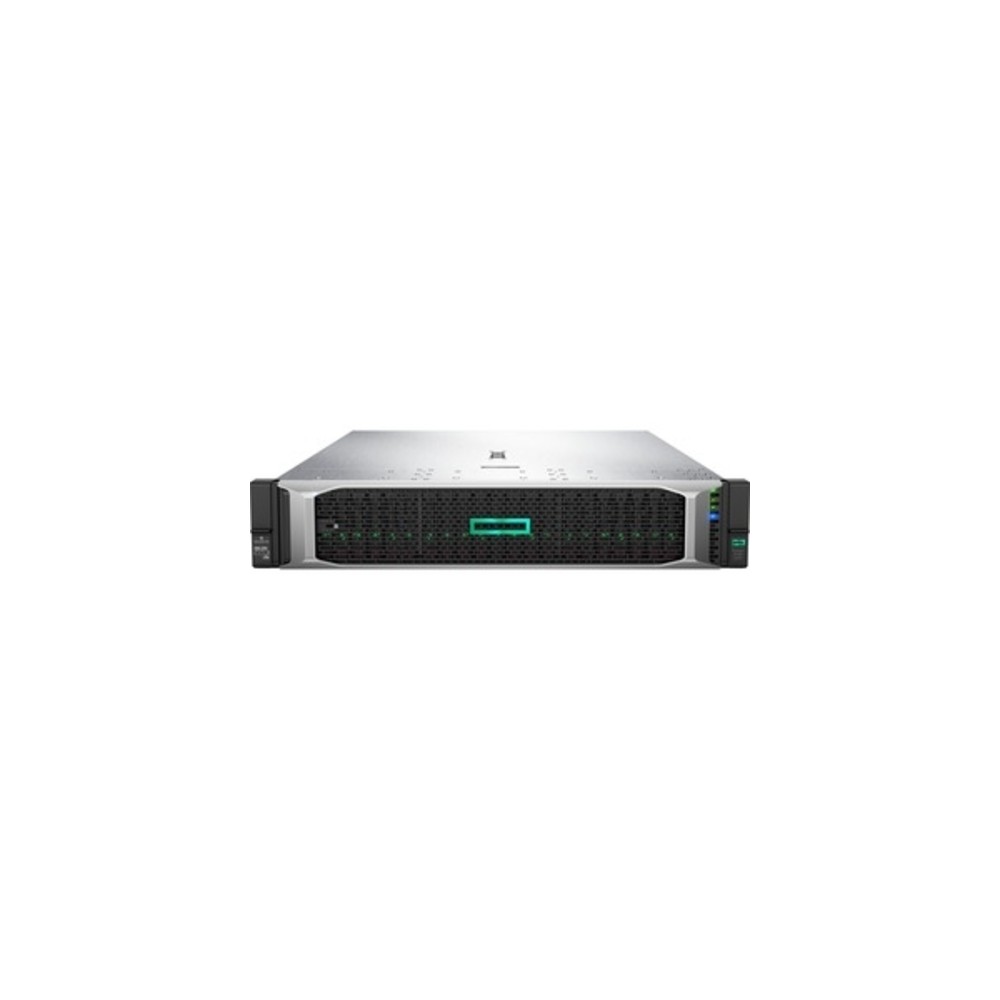

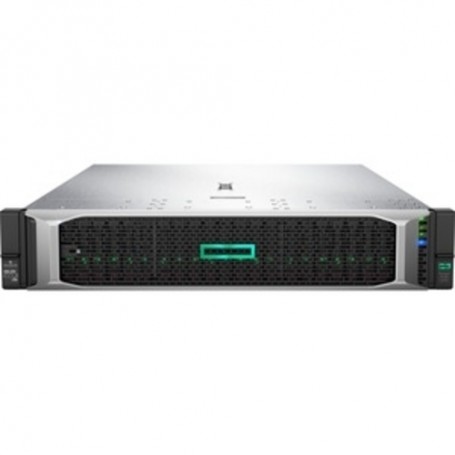

HPE ProLiant DL380 Gen10 Performance - rack-mountable - Xeon Gold 5118 2.3 GHz - 64 GB |
| Height (Rack Units) |
2U |
| Processor |
1 x Intel Xeon Gold 5118 / 2.3 GHz (3.2 GHz) (12-core) |
| Cache Memory |
16.5 MB L3 cache |
| RAM |
64 GB (installed) / 3 TB (max) DDR4 SDRAM - PC4-20800 |
| Storage Controller |
RAID (SATA 6Gb/s / SAS 12Gb/s) (HPE Smart Array P408i-a) |
| Server Storage Bays |
Hot-swap 2.5" |
| Hard Drive |
No HDD |
| Optical Storage |
No optical drive |
| Networking |
GigE |
| Power |
AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) |
17.5 in x 26.7 in x 3.4 in |
| Manufacturer Warranty |
Limited warranty - parts and labor - 3 years - on-site |
| manufacturer |
Hewlett Packard Enterprise |
| last_sync |
07/16/2020 |
| Processor Main Features |
Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket |
FCLGA3647 Socket |
| Configuration Features |
2 x 32 GB |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Processor Socket |
FCLGA3647 Socket |
