Detailed Specifications

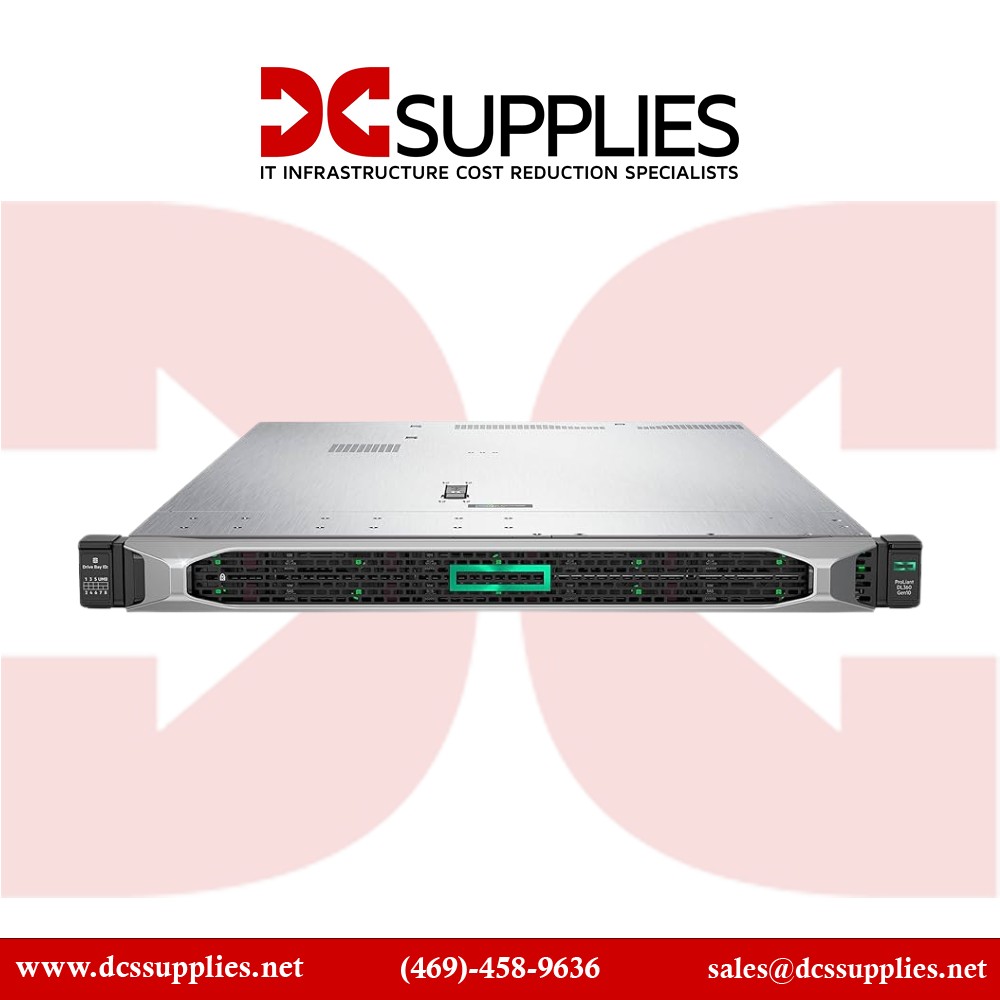

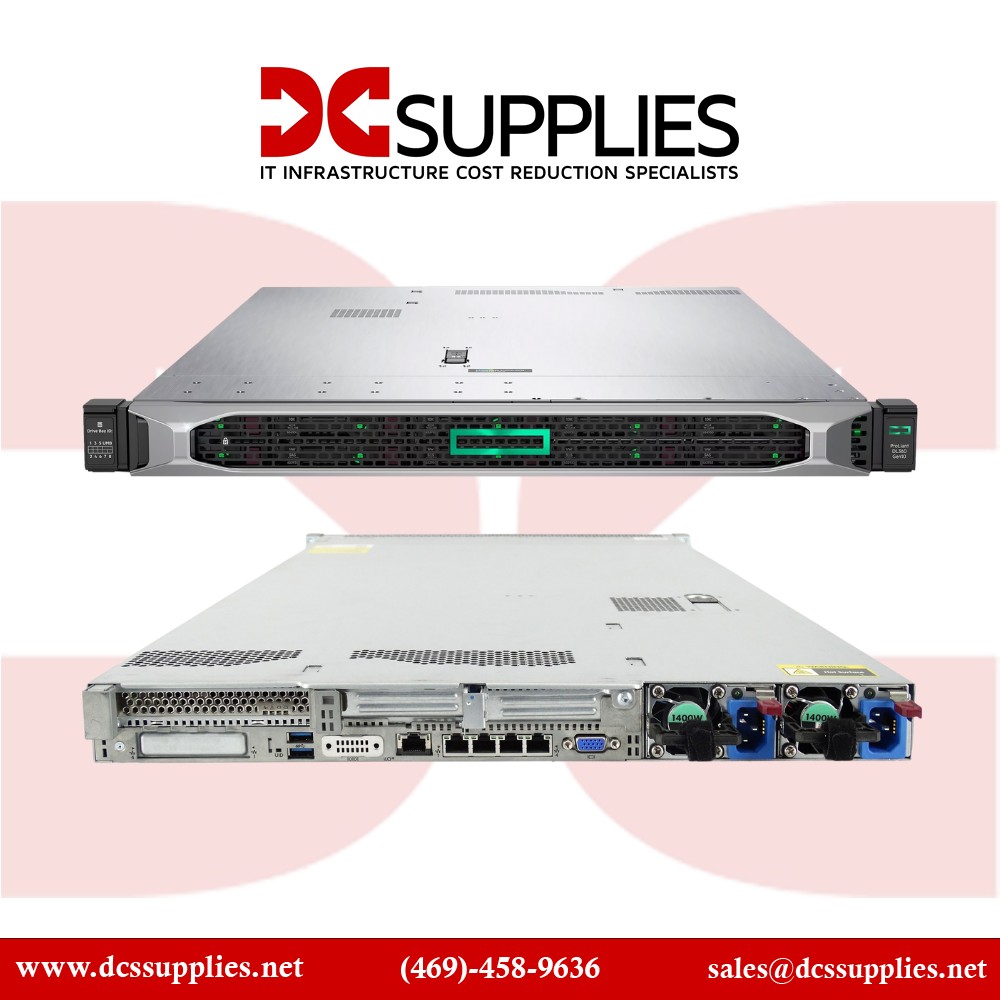

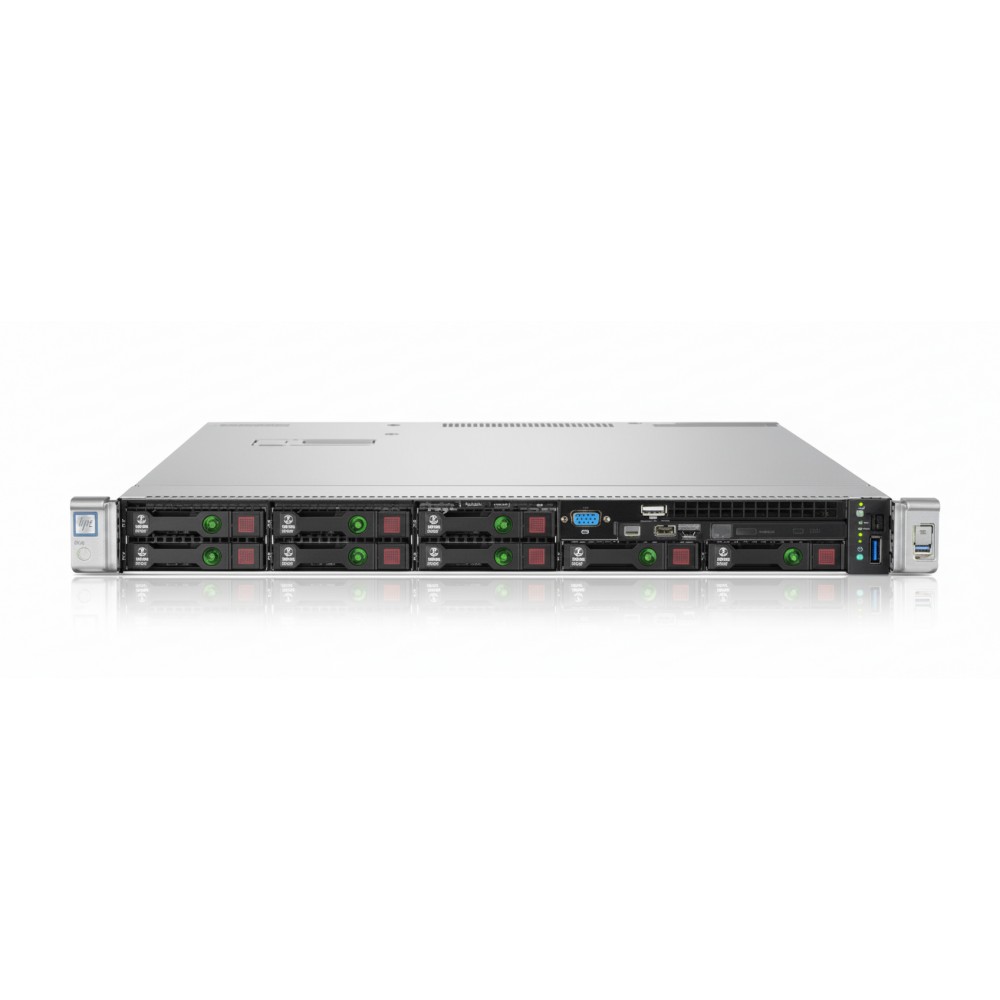

HPE 873831-S01 ProLiant DL360 Gen9 1U Server
Overview
The HPE 873831-S01 is a 1 U rack-mount server from the ProLiant DL360 Gen9 family, designed for infrastructure teams needing a compact general-purpose compute platform. It ships equipped with a single Intel Xeon E5-2609 v4 processor (8 cores at 1.7 GHz) and an 8 GB DDR4 memory module, providing a baseline entry point for virtualization, small-business or remote-office deployments. It supports up to two processors and a large memory capacity via 24 DIMM slots, enabling future expansion. The chassis includes eight 2.5-inch small form-factor hot-plug drive bays and is powered by a 500 W Flex Slot platinum-rated power supply, making it suitable for use in standard 19-inch rack environments, edge compute nodes or campus server rooms. Remote management is supported through integrated iLO and the platform can be integrated into broader HPE OneView systems for lifecycle and firmware control.
Key Features
Installed Intel Xeon E5-2609 v4 8-core processor at 1.7 GHz.
Eight hot-plug 2.5-inch SFF drive bays for SAS/SATA storage.
Smart Array P440ar controller with 12 Gb/s SAS and 6 Gb/s SATA support.
Supports up to 24 DIMM slots of DDR4 SmartMemory for large-memory configurations.
500 W Flex Slot Platinum hot-plug power supply and standard iLO remote management.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 873831-S01 |
| Product Type | ProLiant DL360 Gen9 1U Rack Server |
| Installed Processor | Intel Xeon E5-2609 v4 (1.7 GHz, 8-core) |
| Maximum Processors Supported | Up to 2 sockets |
| Memory Slots | 24 DIMM slots |
| Maximum Memory Supported | Up to 1.5 TB DDR4 |
| Drive Bays | 8 × 2.5-inch SFF hot-plug |
| Storage Controller | Smart Array P440ar (2 GB FBWC) |
| Embedded Network | 4 × 1 Gb Ethernet (331i) |
| Form Factor (H×W×D) | 1.7 in × 17.1 in × 27.5 in |
| Weight (approximate) | ~27 lbs |
| Power Supply | 500 W Flex Slot Platinum hot-plug |
| Rack Units | 1U |
| Factory Memory (included) | 8 GB DDR4 |
