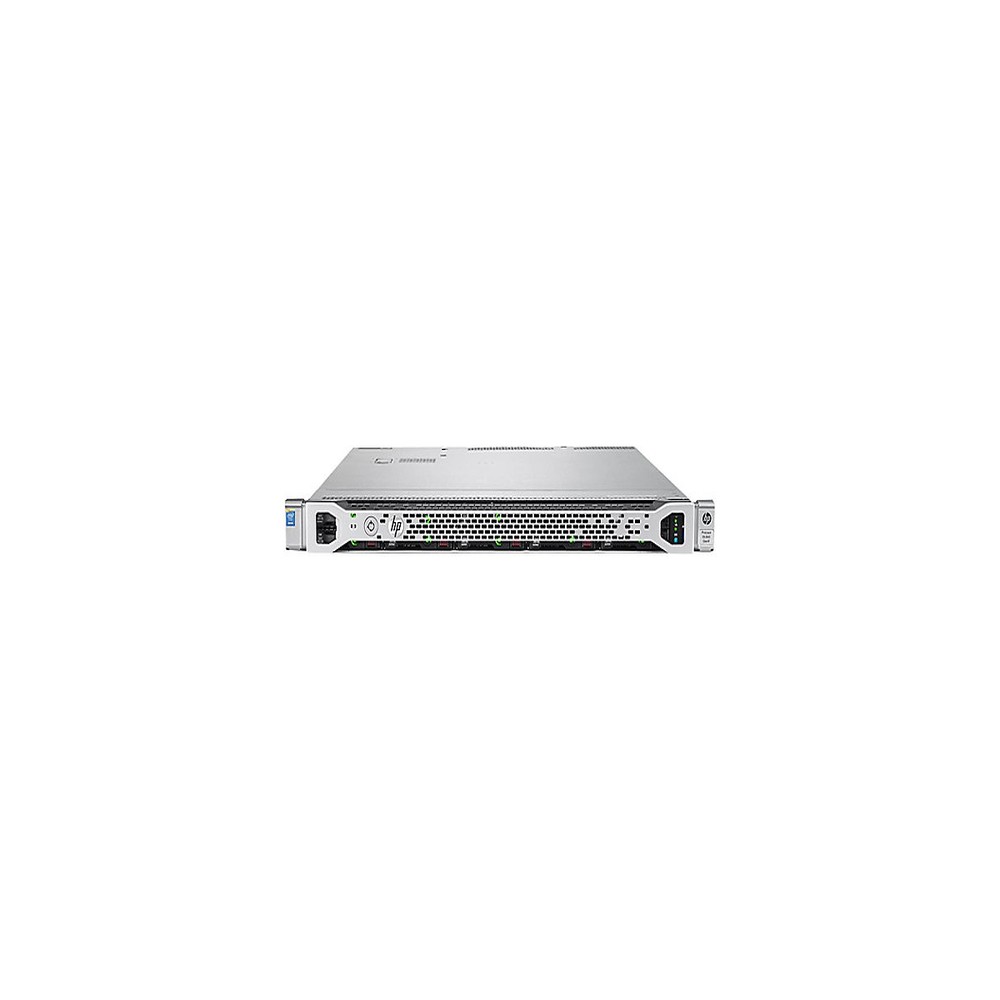

HPE ProLiant DL360 Gen9 - rack-mountable - Xeon E5-2620V4 2.1 GHz - 16 GB - View larger

HPE ProLiant 849455-S01 DL360 Gen9 Server

849455-S01

Refurbished

In Stock

HPE ProLiant 849455-S01 DL360 Gen9 Rack Mountable Server
×




HP, HPE Server, Hewlett Packard Enterprise, HPE ProLiant DL360 Gen9, Matrox G200, 849455-S01, HP Xeon E5-2620V4, HPE Xeon E5-2620V4, Xeon E5-2620V4, E5-2620V4, HP 849455-S01, Hpe 849455-S01, DL360 849455-S01, Gen9 849455-S01, Rack 849455-S01, Mountable 849455-S01, Xeon 849455-S01, 2.1GHZ 849455-S01, 16GB 849455-S01, Hpe Proliant 849455-S01, Hpe DL360 849455-S01, Hpe Gen 9 849455-S01, Hpe Rack 849455-S01, Hpe Mountable 849455-S01, Hpe Xeon 849455-S01

$2,290.00

Detailed Specifications

HPE ProLiant 849455-S01 DL360 Gen9 Rack Mountable Xeon E5-2620V4 2.1 GHz - 16 GB

849455-S01 Overview

Does your data center need a performance-driven dense 1U server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant 849455-S01 DL360 Gen9 Server delivers a 1U chassis with up to two processors, delivering an optimal unit that combines high performance, low energy consumption, improved uptime, and increased density. Leveraging Intel's latest 849455-S01 E5-2600 v4 processors with a 21% performance gain, plus the latest 2400 MHz HPE DDR4 SmartMemory supporting up to 3 TB and up to 23% performance increase. Manage your DL360 849455-S01 Gen9 Server in any IT environment by automating the most essential server lifecycle management tasks with HPE OneView and HPE Integrated Lights-Out: deploy, update, monitor, and maintain with ease.

849455-S01 Specifications

Main Features 849455-S01
  • Server 849455-S01
  • rack-mountable 849455-S01
  • 1U
  • 2-way 849455-S01
  • 1 x Xeon E5-2620V4 / 2.1 GHz
  • RAM 16 GB
  • SAS
  • hot-swap 2.5"
  • no HDD
  • Matrox G200
  • GigE
  • monitor: none
  • HPE Smart Buy
Intel® Xeon® 849455-S01 E5-2600 v4 Processors with 21%1 performance gain and up to 22 cores
2400MHz 849455-S01 DDR4 memory offering up to 23%2 performance gain and 3.0 TB max capacity with 128GB LRDIMMs
HPE 25Gb Ethernet Adapters to help improve performance with latency-sensitive applications
Industry-leading NVMe PCIe SFF 849455-S01 SSDs up to 2.0 TB for low latency and top performance
Directly connect up to 16 drives with HPE Smart Array P840ar Controller
Build a fully functional server with ClearOS that is just right for you at no upfront cost. For more information, check the ClearOS link on the right.

Dense and Flexible High-Performance Compute Power

  • The HPE ProLiant 849455-S01 DL360 Gen9 Server has up to 24 HPE DDR4 SmartMemory DIMM slots with up to 3 TB max memory, and built-in intelligence to improve performance and reduce downtime and energy costs resulting in up to 23% better throughput performance.2
  • You have a choice of Embedded 4x1GbE, HPE FlexibleLOM, PCIe standup 1GbE to 10/25GbE to 40GbE adapters which provides the flexibility of networking bandwidth and fabric so you can adapt and grow to change business needs.
  • Achieve greater capacity with flexible drive configuration options with up to ten SFF 849455-S01, four LFF drive along with the option to support up to six NVMe PCIe SSDs delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
  • HPE Persistent Memory, the world’s first Non-volatile DIMM (NVDIMM) optimized on ProLiant, offers unprecedented levels of performance for databases and analytic workloads.

Industry-Leading Energy Efficiency for a Quicker Return on Your Investment

  • The HPE ProLiant 849455-S01 DL360 Gen9 Server supports industry-standard 849455-S01 Intel® Xeon® E5-2600 v3 and E5-2600 v4 processors with up to 22 cores and 3 TB of HPE DDR4 SmartMemory.
  • The HPE ProLiant DL360 Gen9 Server supports improved ambient temperature standards with HPE Extended Ambient Operating Support (ASHRAE A3 and A4) helping to reduce your cooling expenses.3
  • High-efficiency redundant HPE 849455-S01 Flexible Slot Power Supplies provide up to 96% efficiency (Titanium), HPE Flexible Slot Battery Backup module, and support for the HPE Power Discovery Services offering.
  • ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.

Agile Infrastructure Management for Accelerating IT Service Delivery

  • With the HPE ProLiant 849455-S01 DL360 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage, and networking.
  • Online personalized dashboard for Converged Infrastructure health monitoring and support management with HPE Insight Online.
  • Embedded management to deploy, monitor and support your DL360 Gen9 Server remotely, out of band with HPE iLO.
  • Configure in Unified Extensible Firmware Interface (UEFI) boot mode to provision local and remote servers with HPE ILO with Intelligent Provisioning and Scripting Toolkits.
  • Optimize firmware and driver updates and reduce downtime with Smart Update Solution, consisting of Smart Update Manager (SUM) and Service Pack for ProLiant (SPP).

Industry Leading Serviceability

  • The HPE ProLiant DL360 Gen9 Server comes with a complete set of Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability. HPE provides consulting to transform your infrastructure; services to deploy, migrate and support your new ProLiant Servers.
  • HPE provides consulting advice to transform and modernize your infrastructure; services to deploy, migrate and support your new ProLiant servers and education to help you succeed quickly
  • Worldwide availability, service, and support for customers who have multiple data centers in multiple countries.

849455-S01 Specifications

technical specifications 849455-S01
Processor Intel® 849455-S01 Xeon® E5-2620 v4 (8 core, 2.1 GHz, 20 MB, 85W)
Number of processors 1 or 2
Processor number 1
Processor cache 20 MB L3 849455-S01
Processor core available 8
Processor speed 2.1 GHz
Memory type HPE DDR4 SmartMemory 849455-S01
Memory, standard 16 GB (2x 8 GB) RDIMM
Drive description (4) LFF SAS/SATA/SSD
(8) SFF SAS/SATA/SSD or
(10) SFF SAS/SATA/SSD
(6) SFF NVMe (optional)
NVMe support via Express Bay will limit max drive capacity
Optical drive type None included
Network controller 1 embedded HPE 1 Gb Ethernet 331i adapter 4 ports
Storage controller HPE H240ar Smart Host Bus Adapter
Expansion slots 2 PCIe 3.0, 1 full-height/three-quarter length and 1 low profile
System fan features 5 standard hot plug fans, redundant
Power supply type 1 HPE 500W Flex Slot Platinum power supply
Form factor chassis Rack 849455-S01
Form factor (fully configured) 1U
Form factor 1U
Included hard drives None included, 8 SFF drives supported
Infrastructure management Standard: HPE iLO Management with Intelligent Provisioning Optional: HPE iLO Advanced, HPE Insight Control, and HPE OneView
Product dimensions (H x W x D) 1.7 x 17.1 x 27.5 in
Weight 27 lb
TechnicalSpecificationsSeries 849455-S01
Memory slots 24 DIMM slots
Maximum memory 3.0TB 849455-S01

Footnotes 849455-S01

footnote1 Intel performance testing, http://www.intel.com/performance, comparing measurements on platform with two E5-2600 v3 vs E5-2600 v4. November 2015.
footnote2 up to 23% better performance is based on similar capacity DIMM running on HPE server compared to a non HPE server with DDR4. HPE internal labs estimate, March 2016.
footnote3 Please see www.hp.com/servers/ASHRAE for details.

  • Hard Drive (4th)
  • None

  • Processor
  • Xeon
  • 1
  • 2
  • Intel
  • 2.1 GHz
  • Upgradable
  • Hyper-Threading Technology, Intel Turbo Boost Technology 2
  • E5-2620V4
  • 8-core
  • 2-way
  • 3 GHz

  • Bay Provided
  • 2.5" SFF
  • 8
  • 8
  • 1
  • 1

  • Cache Memory
  • 20 MB
  • 20 MB

  • Display
  • None.

  • Environmental Parameters
  • 50 °F
  • 95 °F
  • 8 - 90% (non-condensing)

  • Header
  • PC
  • United States
  • Hewlett-Packard
  • 1
  • HPE ProLiant
  • DL360 Gen9
  • HPE

  • Interface Provided
  • 1
  • VGA
  • 4
  • LAN (Gigabit Ethernet)
  • 5
  • 1 front, 2 rear, 2 internal
  • USB 3.0
  • HP iLO
  • Serial

  • Miscellaneous
  • ACPI 2.0b, ASHRAE, CISPR 22, CNS 13438, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, FCC Class A certified, GB 9254, ICES-003, IEC 60950-1, WEEE
  • 1
  • HPE Easy Install Rails
  • HPE Smart Buy
  • Silver

  • Networking
  • Ethernet, Fast Ethernet, Gigabit Ethernet
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • PXE support, Wake on LAN (WoL)
  • HP 331i
  • 4 x Gigabit Ethernet
  • Integrated Lights-Out 4

  • Power Device
  • Power supply - hot-plug
  • 50/60 Hz
  • 500 Watt
  • 1
  • 2
  • AC 120/230 V
  • Optional
  • 1+1
  • 80 PLUS Platinum

  • Printer
  • None

  • RAM
  • 16 GB
  • 384 GB
  • DDR4 SDRAM
  • Advanced ECC
  • DIMM 288-pin
  • 2133 MHz
  • HP SmartMemory, Online Spare Memory, Quad channel memory architecture, Registered
  • PC4-19200
  • 2 x 8 GB
  • 22
  • 24
  • 2400 MHz

  • Service
  • Limited warranty
  • Parts and labor
  • On-site
  • 3 years

  • Slot Provided
  • 1
  • 2
  • 1
  • 24
  • 22

  • Optical Storage (2nd)
  • None
  • No optical drive

  • Storage Controller
  • RAID
  • PCI Express 3.0 x8
  • RAID 0, RAID 1, RAID 10, RAID 5
  • Serial ATA-600 / SAS 3.0
  • 8
  • 1
  • HP H240ar Smart Host Bus Adapter

  • Storage Removable
  • None

  • System
  • Server
  • Canonical Ubuntu, Citrix XenServer, Microsoft Windows Server, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
  • Trusted Platform Module (TPM 1.2) Security Chip
  • 0 GB

  • Video Output
  • Matrox G200
  • VGA
  • Matrox G200

  • Dimensions & Weight
  • 17.1 in
  • 27.5 in
  • 1.7 in
  • 27.01 lbs

  • Service & Support
  • 3 years warranty
  • On-site

  • Chassis
  • Rack-mountable
  • Rack-mountable
  • 1
  • 8
  • Hot-swap
  • SAS
  • 2.5"
  • 6.4 cm

  • Expansion Bays
  • 6.4 cm SFF
  • Hot-swap
  • External

  • Expansion Slots
  • CPU
  • DIMM 288-pin
  • FlexibleLOM
  • microSD Card (internal)
  • PCIe 3.0 x16
  • Three-quarter-length, full-height
  • PCIe 3.0 x8
  • Low-profile

  • Hard Drive
  • No HDD

  • Hard Drive (2nd)
  • None

  • Hard Drive (3rd)
  • None

  • Optical Storage
  • None
  • No optical drive

  • RAM Supported
  • 384 GB
  • Registered
  • 768 GB
  • PC4-17000
  • Load-Reduced
