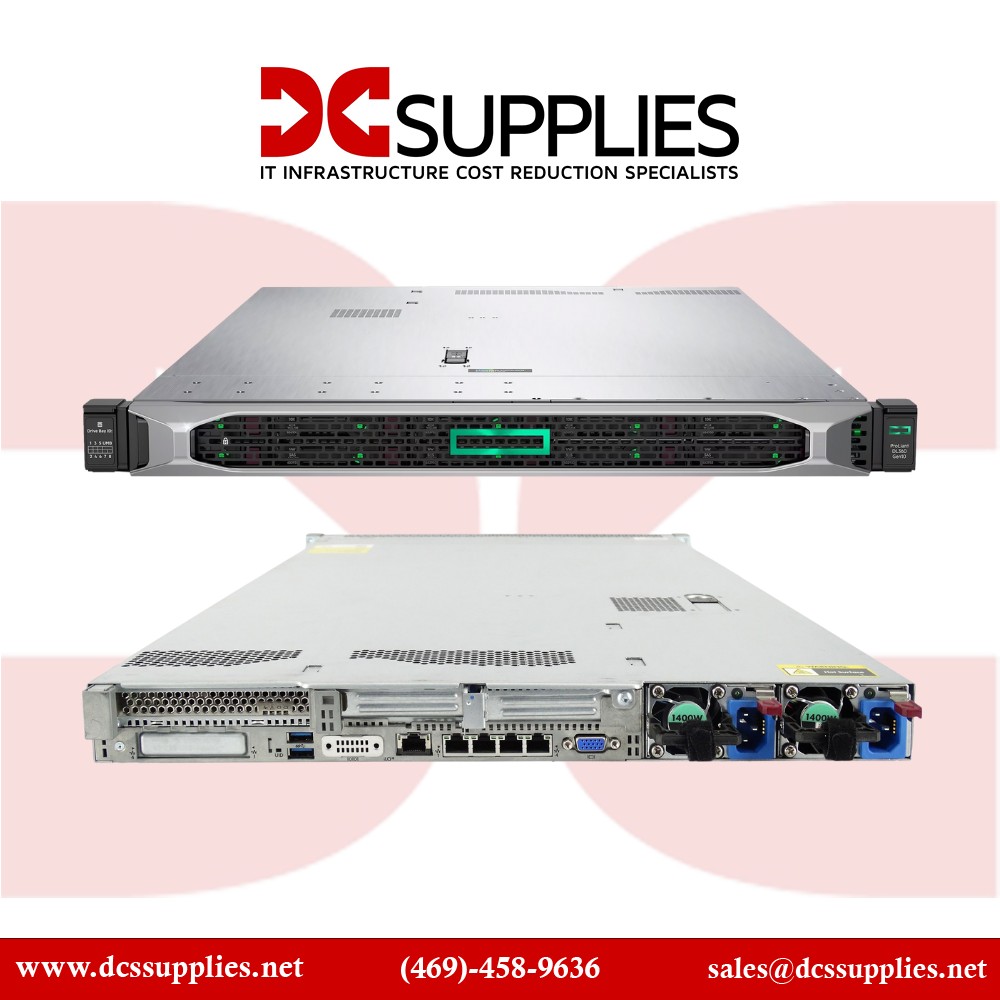

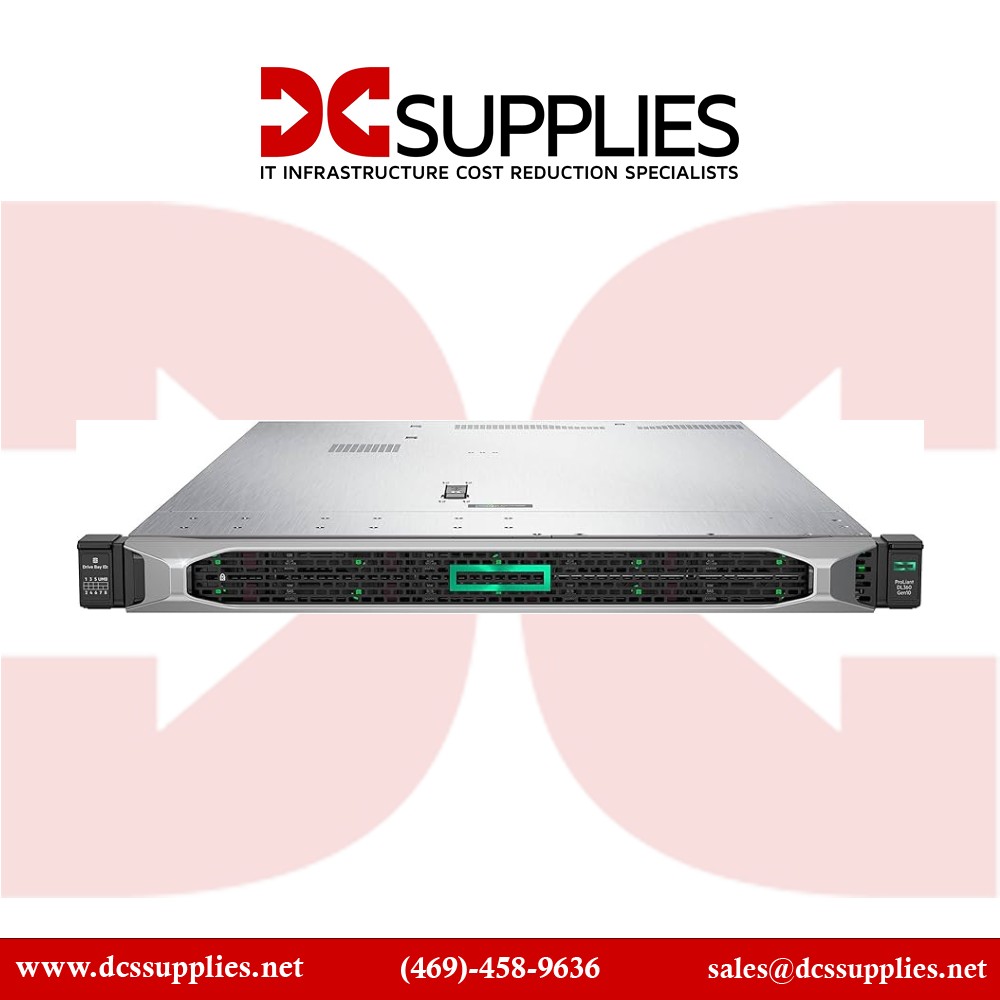

The HPE 867964‑B21 DL360 Gen10 combines dual Xeon Gold 6130 CPUs, 64 GB of ECC memory, and a 10 bay NVMe-ready chassis to deliver exceptional compute and storage density in a 1 U rack form factor—ideal for virtualization database, and mission-critical workloads demanding fast storage and reliability.
Built on the Intel C621 platform, the DL360 packs two 16‑core Xeon Gold 6130 processors with Turbo up to 3.7 GHz Its premium 10 NVMe chassis allows installation of high-speed PCIe SSDs, supporting mixed NVMe and SAS/SATA configurations for intensive IOPS workloads.
The P408i‑a RAID controller with 2 GB cache facilitates enterprise RAID setups. Networking includes embedded quad 1 GbE plus a 2‑port 25 GbE FlexibleLOM, ensuring broad connectivity. iLO 5 offers secure remote provisioning and monitoring.
Designed for 24/7 operations, this server employs redundant cooling, hot‑swappable drives, fans, and PSUs. Certified for Energy Star 2.1 and ASHRAE A3/A4, it's efficient under heavy loads . Memory support scales to 3 TB LRDIMM or 192 GB NVDIMM for persistent memory, and chassis supports up to 12 NVDIMMs Security is enhanced with iLO 5's Silicon Root of Trust and runtime firmware verification.
Dual Intel Xeon Gold 6130 CPUs (16C/32T; 2.1 GHz / 3.7 GHz Turbo)
64 GB DDR4‑2666 ECC RDIMM (2×32 GB); scalable to 3 TB LRDIMM
HPE Smart Array P408i‑a RAID (2 GB FBWC)
Premium 10 NVMe SFF backplane
Embedded 4×1 GbE LOM + 25 GbE FlexibleLOM
Dual 800 W Platinum PSUs, 7 fans, iLO 5
Specification | Details |
---|---|
Model Number | 867964‑B21 |
Chassis | DL360 Gen10 High Performance, 1U Rack, Premium 10‑NVMe backplane |
CPUs Installed | 2× Intel Xeon Gold 6130 (16 cores/32 threads each) |
Base / Turbo Clock | 2.1 GHz / up to 3.7 GHz |
L3 Cache | 22 MB per CPU (44 MB total) |
Memory Installed | 64 GB (2×32 GB DDR4‑2666 ECC RDIMM) |
Max Memory Capacity | Up to 3 TB LRDIMM; supports NVDIMM |
Storage Controller | Smart Array P408i‑a with 2 GB FBWC |
Drive Bays | 10× hot-swap 2.5″ SFF (NVMe/SAS/SATA mix supported) |
Networking | 4×1 GbE LOM + 2‑port 25 GbE FlexibleLOM (640FLR‑SFP28) |
Remote Management | HPE iLO 5 with advanced security features |
Power Supplies | 2× 800 W Platinum hot-plug (redundant) |
Cooling Fans | 7× high-performance, hot-swappable |
PCIe Slots | 1× x16 FH + 1× x8 LP + FlexibleLOM slot available |
Weight | ~35.9 lb (16.3 kg) |
Compliance | Energy Star 2.1, ASHRAE A3/A4, RoHS, WEEE, AES, TLS v1.2 Certified |
