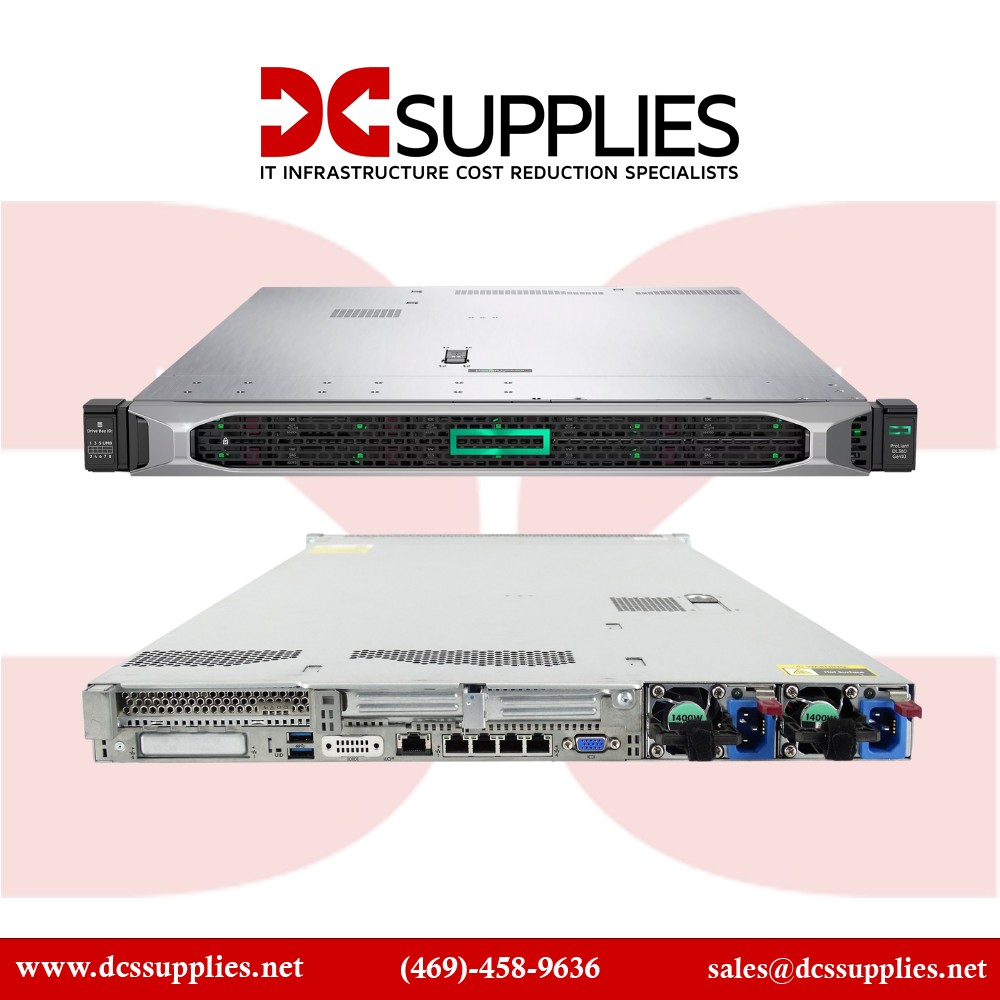

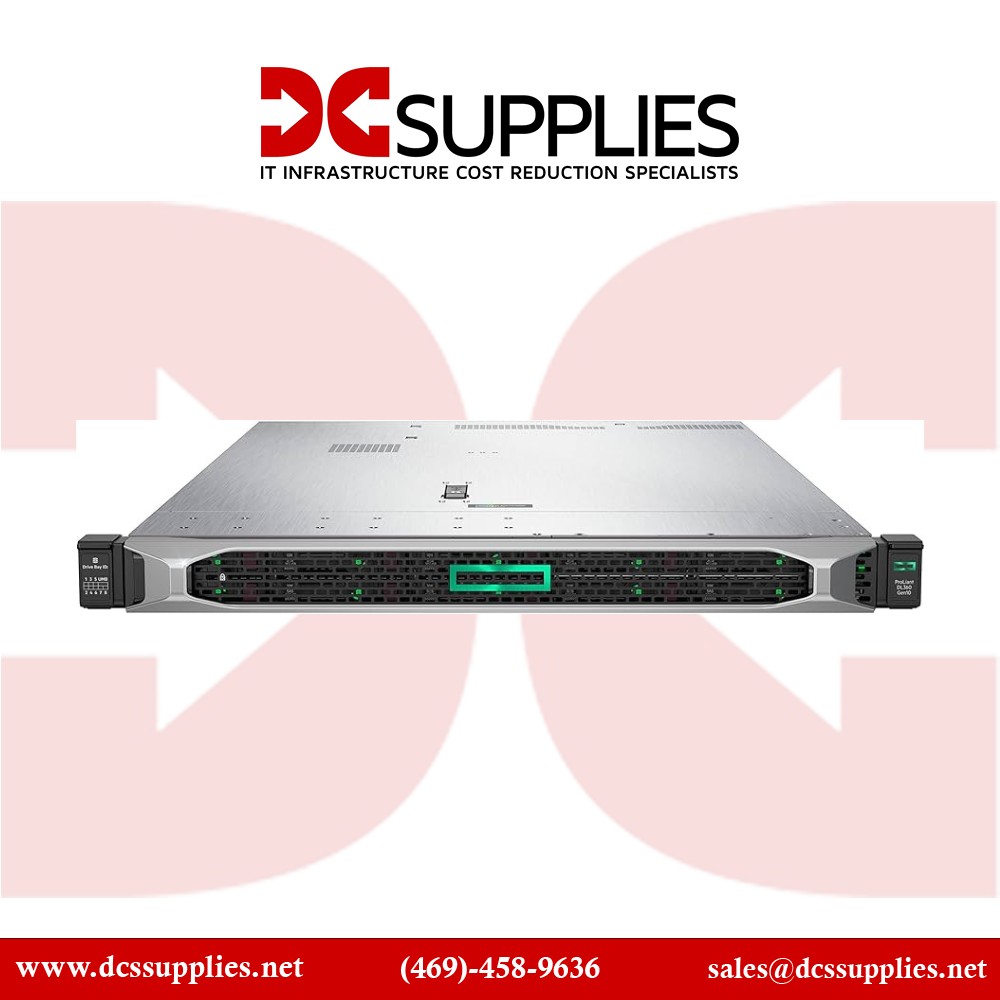

HPE 867963-B21 ProLiant DL360 G10 1U Rack Server

New

HPE 867963-B21 ProLiant DL360 G10 1U Rack Server -...

×




  • New

Detailed Specifications

HPE 867963-B21

ProLiant DL360 Gen10 1U Rack Server (2× Xeon Gold 5118, 32 GB RAM)

The HPE 867963‑B21 DL360 Gen10 is a high-performance, densely packed 1U server, equipped with dual Xeon Gold 5118 processors and 32 GB of ECC memory. It's designed for virtualization, database, and compute-intensive workloads, offering enterprise-grade reliability in a compact form factor.

Features

Powered by two 12-core Xeon Gold 5118 CPUs (2.3 GHz base; up to 3.2 GHz Turbo), this configuration delivers strong multiprocessing performance on the Intel C621 platform . Memory is installed as 2×16 GB RDIMMs-2666 MT/s and scales up to 3 TB using Load‑Reduced modules, with eight hot-swap SFF drive bays managed by the integrated P408i‑a controller

Advanced Options

Networking is extensive, including quad GbE and a 10/25 GbE FlexibleLOM adapter. Ideal for data-center workloads, the server also supports NVDIMM and NVMe, enabling low-latency storage and persistent memory performance iLO 5 offers robust remote admin capabilities.

Product Key Features

  • Dual Intel Xeon Gold 5118 CPUs – 12 cores/24 threads each @ 2.3 GHz (Turbo to 3.2 GHz)10,000 RPM for high-speed performance

  • DDR4‑2666 MHz ECC RDIMM (2×16 GB; supports up to 3 TB Load‑Reduced)Hot-swappable for zero-downtime maintenance

  • HPE Smart Array P408i‑a RAID controller with 2 GB FBWC and 8× 2.5″ SFF baysDurable, energy-efficient design for 24/7 uptime

  • Embedded 4×1 GbE + 10/25 GbE FlexibleLOM – includes 2‑port 640FLR‑SFP28 adapter

Reliability & Performance

This server meets enterprise-grade resilience standards: redundant hot-plug PSUs, drives, fans, and DIMMs minimize downtime. Certified for Energy Star 2.1 and ASHRAE A3/A4 temperature ranges, it ensures efficient operation. Enhanced security includes Silicon Root of Trust. Dual Xeon Gold and modular chassis make it future-proof and scalable

Key Features (Bullet List)

    • Dual Xeon Gold 5118 (12C/24T; 2.3 GHz / 3.2 GHz Turbo)

    • 32 GB DDR4‑2666 ECC RDIMM (2×16 GB); up to 3 TB supported

    • HPE Smart Array P408i‑a RAID controller (2 GB FBWC)

    • 8× hot-swap 2.5″ SFF bays (SAS/SATA/NVMe)

    • 4×1 GbE LOM + 10/25 GbE FlexibleLOM adapter

    • iLO 5 remote management; dual 800 W Platinum hot-plug PSUs

    • Support for NVDIMM, NVMe, and persistent memory

SpecificationDetails
Model Number 867963‑B21
Chassis HPE ProLiant DL360 Gen10, 1U rack
CPUs Installed 2× Intel Xeon Gold 5118 (12 cores/24 threads each; 105 W TDP)
CPU Base / Turbo 2.3 GHz / up to 3.2 GHz
L3 Cache 16.5 MB per CPU (33 MB total)
Memory Installed 32 GB (2×16 GB DDR4‑2666 ECC RDIMM)
Max Memory Capacity Up to 3 TB LRDIMM, 768 GB RDIMM
Memory Slots 24 DIMM slots
Storage Controller Smart Array P408i‑a with 2 GB FBWC
Drive Bays 8× hot-swap 2.5″ SFF (SAS/SATA/NVMe)
Networking 4×1 GbE LOM + 2‑port 10/25 GbE FlexibleLOM
Expansion Slots 3 PCIe 3.0 slots + FlexibleLOM slot
Remote Management HPE Integrated Lights-Out 5 (iLO 5)
Power Supplies 2× 800 W Platinum hot-plug, redundant
NVDIMM / NVMe Support Yes, up to 12 NVDIMMs & 10 NVMe drives
Dimensions (H×W×D) 1.69″ × 17.11″ × 27.83″
Weight 28.74 lb (13.04 kg)
Compliance ENERGY STAR 2.1, ASHRAE A3/A4, RoHS, WEEE
