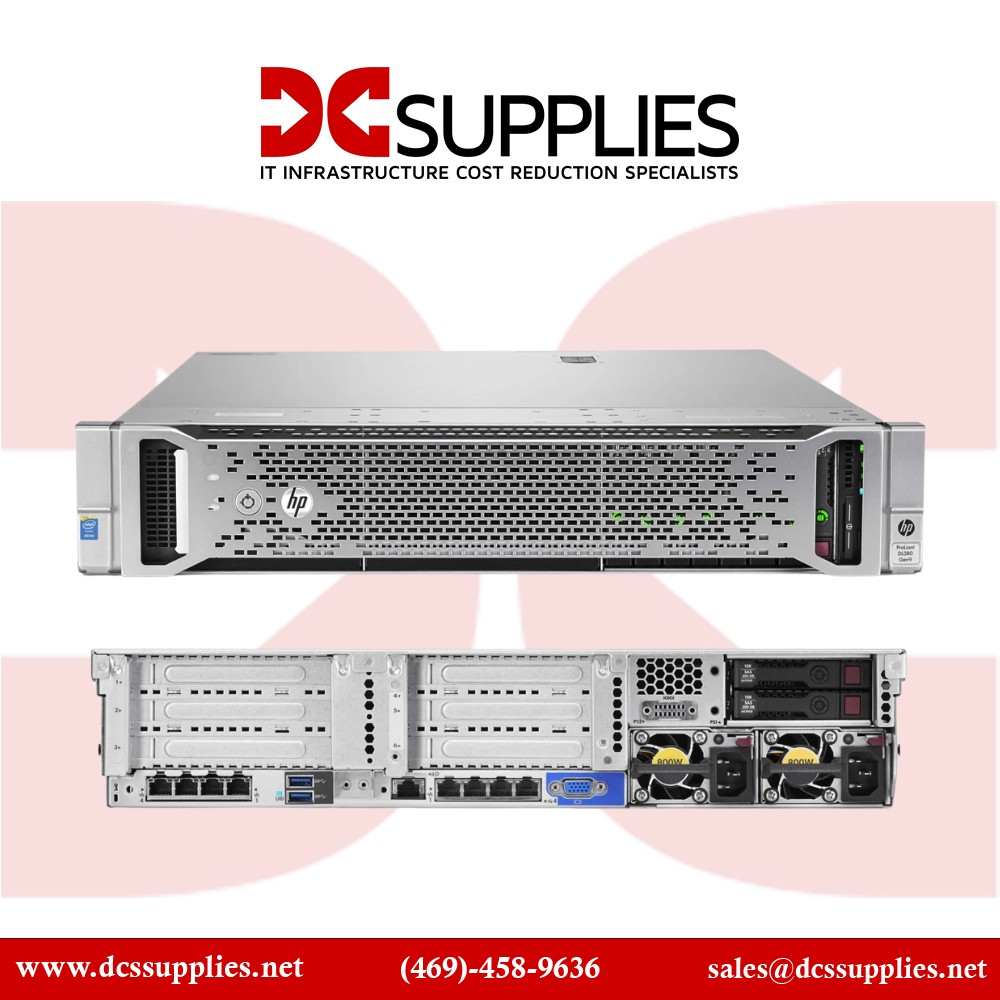

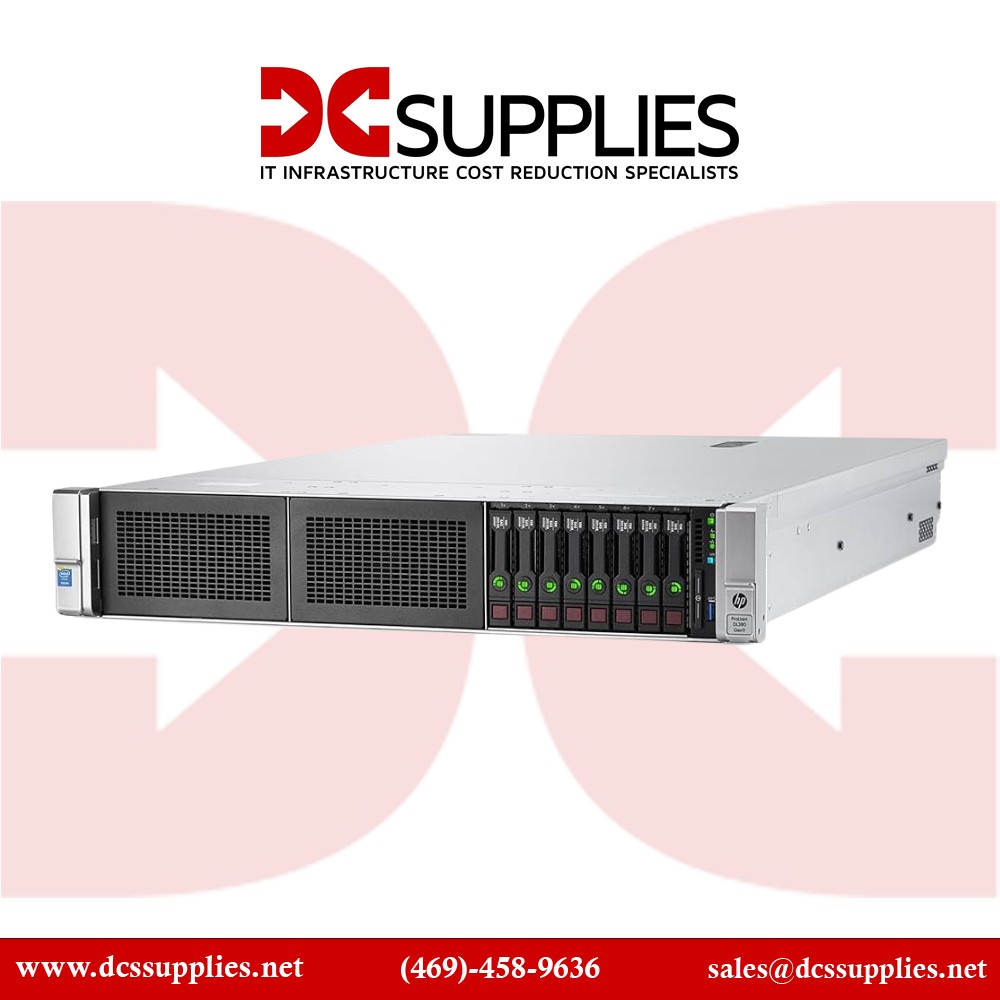

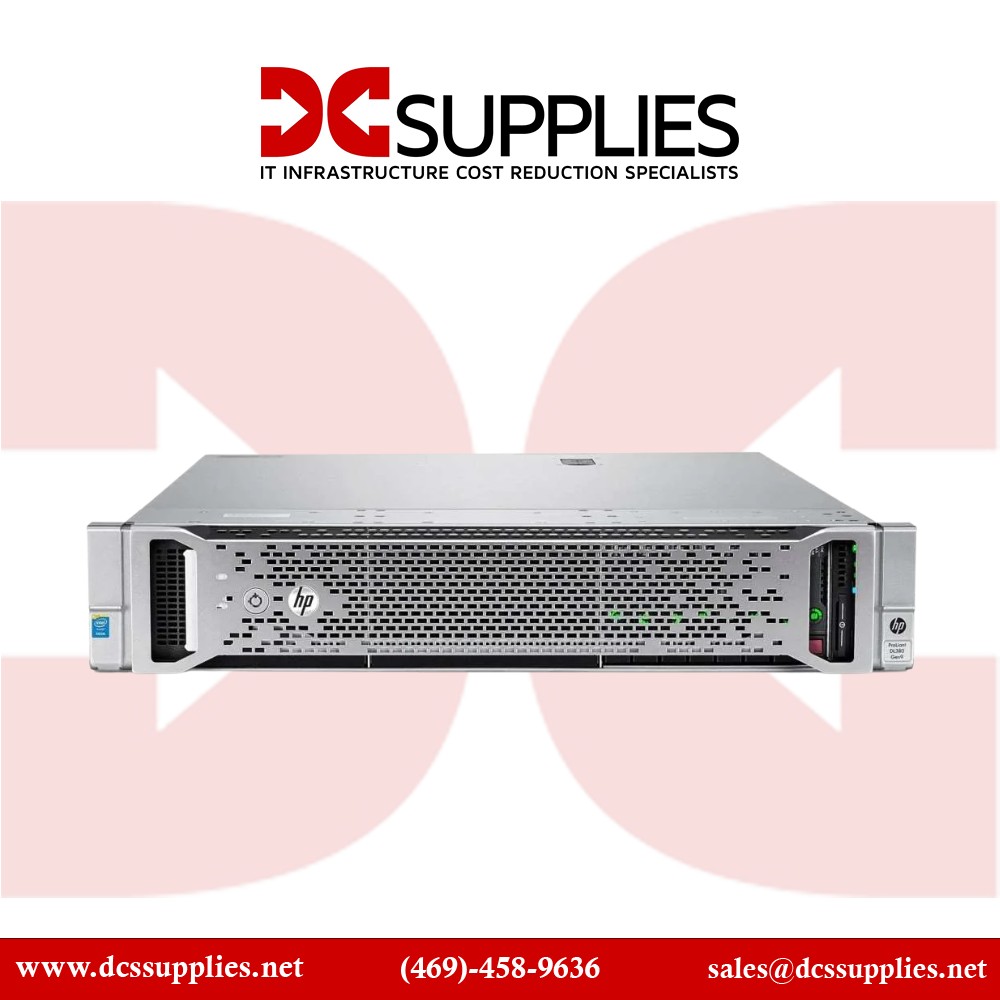

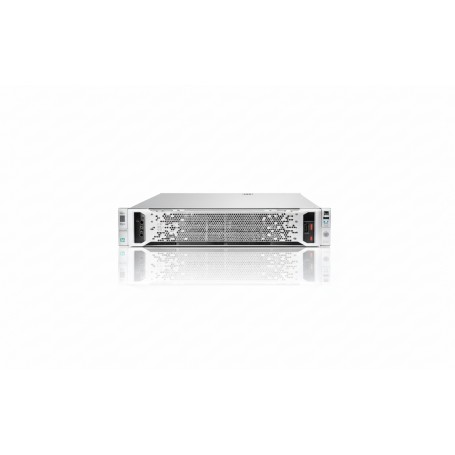

HPE ProLiant 777336-S01 DL380 Gen9 E5-2609v3 1P 8GB-R 8SFF 500W PS Server View larger
Previous Next

HPE 777336-S01 ProLiant DL380 Gen9 E5-2609v3 1P 8GB-R 8SFF 500W PS Server Power Supply

New

In Stock

HPE 777336-S01 ProLiant...

×




$2,848.90

  • New

Detailed Specifications

HPE 777336-S01

ProLiant DL380 Gen9 (777336‑S01) – Single‑Processor Server (E5‑2609 v3, 8 GB DIN‑RAM, 8×SFF, 500 W PSU)

The HPE ProLiant DL380 Gen9 (777336‑S01) is a versatile single-socket 2U rack server. With its Xeon E5-2609 v3 processor and 8 GB DDR4 memory,

Features

it's ideal for entry to mid-level business applications including file services, virtualization hosts, and light database workloads. This configuration includes eight hot-swap SFF drive bays, enabling flexible storage setups using SAS or SATA drives

Advanced Options

 The integrated H240ar RAID controller provides onboard RAID 0/1/5 support. Optional upgrades like additional DIMMs, PCIe storage, or 10/25 GbE NICs make it a scalable platform for growing performance demands Equipped with a high-efficiency 500 W Flex Slot PSU and redundancy options like hot-swappable power and cooling,

Product Key Features

    •  Intel Xeon E5-2609 v3 (6‑core, 1.9 GHz) – Efficient entry-level performance for general workloads

    •  8 GB DDR4 Registered Memory (1×8 GB) – Expandable up to 384 GB

    •  8× Hot-Swap 2.5″ Drive Bays – Flexible for SAS/SATA drives and hot-swappable access

    •  HPE H240ar RAID Controller – 12 Gb/s SAS, integrated storage performance

    •  500 W Platinum Flex Slot PSU – High efficiency with hot-swap capability

    •  Enhanced Networking Support – Multiple PCIe slots available for add-on NICs or storage controllers

Reliability & Performance

this server supports uninterrupted uptime while staying cost-effective for budget-conscious deployments The chassis design includes hot-swap fans and a modular Flex Slot PSU for easy maintenance. The Xeon E5-2609 v3 provides reliable compute within a modest TDP, while the RAID controller ensures data integrity. Supports ASHRAE A3 ambient temperatures, suitable for standard-ish data center environments .

Key Features (Bullet List)

  • Intel Xeon E5-2609 v3 CPU

  • 8 GB DDR4 registered memory (expandable)

  • 8× hot-swap 2.5″ drive bays

  • HPE H240ar 12 Gb/s RAID controller

  • 500 W Platinum Flex Slot PSU (hot-swap)

  • Support for additional PCIe NICs or storage

Specification :

SpecificationDetails
Model Number 777336‑S01
Server Type HPE ProLiant DL380 Gen9, 2U Rack
Processor 1× Intel Xeon E5‑2609 v3 (6 cores, 1.9 GHz, 15 MB L3 cache, 85 W)
Memory Installed 8 GB DDR4 Registered (1×8 GB, 2133 MHz)
Max Memory Up to 384 GB RDIMM across 24 DIMM slots
Drive Bays 8× hot-swap 2.5″ SAS/SATA (SFF)
RAID Controller HPE H240ar 12 Gb/s SAS HBA with RAID 0/1/5
Expansion Slots 3× PCIe 3.0 slots for NIC or storage expansion
Power Supply 1× 500 W Platinum Flex Slot PSU, hot-swap (~94% efficiency)
Cooling Hot-swappable fans; supports extended ambient operation
Form Factor 2U rack (17.5" W × 26.7" D × 3.4" H)
Onboard Graphics Matrox G200eH2 (up to 16 MB VRAM)
Networking Onboard NIC; PCIe NIC options available (vendor-specific)
Weight ~14.8 kg / 32.7 lb
Management HPE iLO with Intelligent Provisioning
Warranty Options 1–3 years parts/labor/onsite (varies by vendor)
