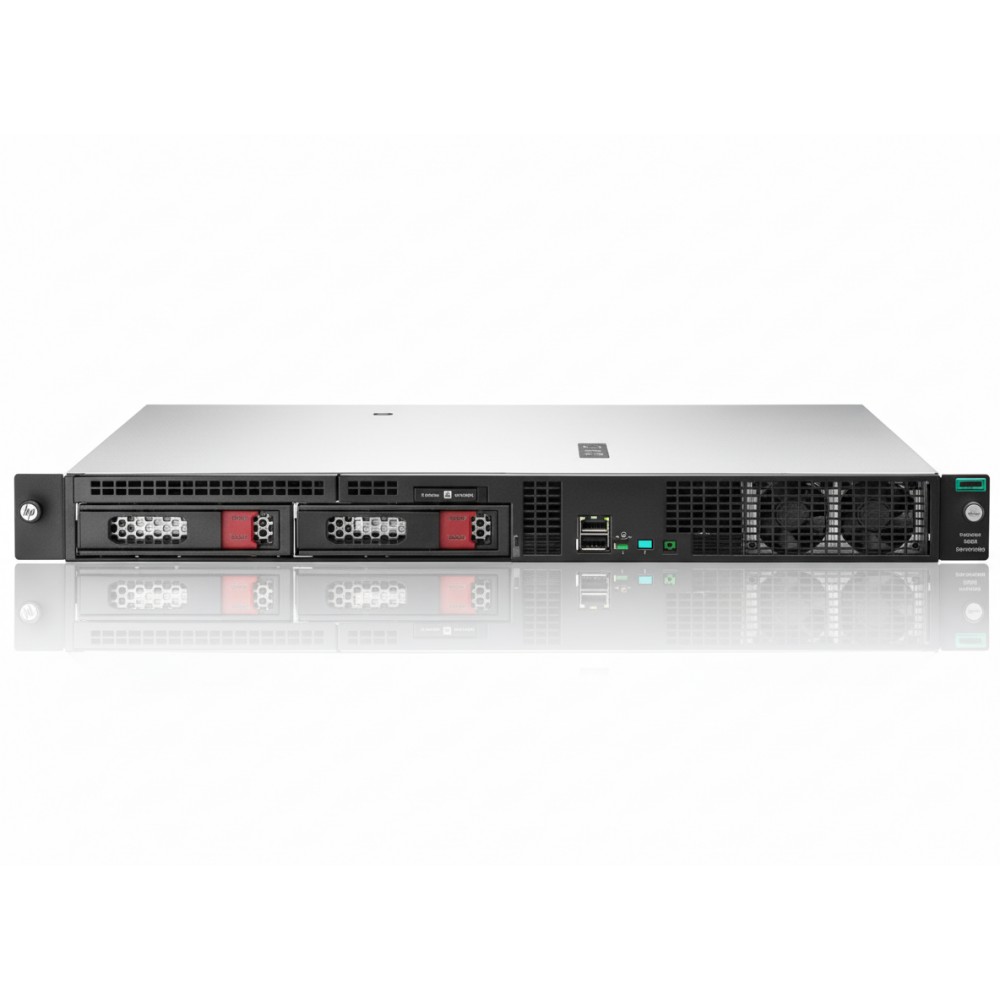

HPE Proliant DL20 Gen10+ Xeon E-2314 Quad-Core 8GB 2LFF VROC 290W View larger

HPE P44112-B21 Proliant DL20 Gen10+ Xeon E-2314 Quad-Core 8GB 2LFF VROC 290W

New

P44112-B21 Proliant DL20 Gen10+ Xeon E-2314 Quad-Core 8GB

×




  • New

Detailed Specifications

HPE ProLiant DL20 Gen10 Plus Server

Overview

The HPE ProLiant DL20 Gen10 Plus is a dense and compact 1U rack server, engineered to deliver a unique blend of enterprise-class capabilities and exceptional value for small to medium-sized businesses, service providers, and branch offices. It directly addresses the need for a versatile, short-depth server that can be deployed in space-constrained environments without compromising on performance or reliability. This platform provides a powerful yet affordable solution for running a wide variety of workloads, from basic infrastructure and web serving to more demanding point-of-sale or light business applications. At its core, this entry-level configuration is powered by an Intel Xeon E-2314 processor, providing a solid foundation of quad-core performance for essential business tasks. The architecture supports up to 128 GB of DDR4 ECC memory, ensuring data integrity and the capacity to handle growing application demands. With support for PCIe 4.0, the server offers enhanced I/O bandwidth for modern network adapters and storage controllers, future-proofing the investment and eliminating potential data bottlenecks as business needs evolve. Designed for maximum deployment flexibility, its short-depth chassis of just over 15 inches allows for installation in shallow racks or non-traditional IT spaces. Management is streamlined through HPE iLO 5, which provides embedded, secure server management capabilities from remote monitoring to firmware updates, reducing administrative overhead. This combination of a compact form factor, robust performance, and simplified management makes it an ideal first server for growing organizations or a dependable edge device for distributed enterprises.

Key Features

  • Compact 15-inch short-depth 1U rack chassis
  • Intel Xeon E-2314 4-core 2.8 GHz processor
  • Supports up to 128 GB of DDR4 ECC memory
  • Embedded dual-port 1GbE network adapter
  • Two PCIe 4.0 slots for greater I/O bandwidth

Specifications

SpecificationValue
Brand HPE
Part Number P44112-B21
Product Type 1U Rack Server
Processor Intel Xeon E-2314 (4-core, 2.8 GHz, 8MB Cache)
Memory 8 GB DDR4 UDIMM (Max 128 GB)
Storage Controller Embedded Intel VROC SATA SW RAID
Drive Bays 2 LFF (3.5") Non-Hot-Plug
Network Controller Embedded Broadcom BCM5720 2x 1GbE
Power Supply 290W Non-Redundant
Form Factor 1U Rack, Short Depth
Dimensions (in) 1.7 x 17.11 x 15.05
Weight (lbs) 13.18 (minimum)
Operating Temperature (°C) 10° to 35°
Management HPE iLO 5 Standard
Expansion Slots 2x PCIe 4.0
