Detailed Specifications

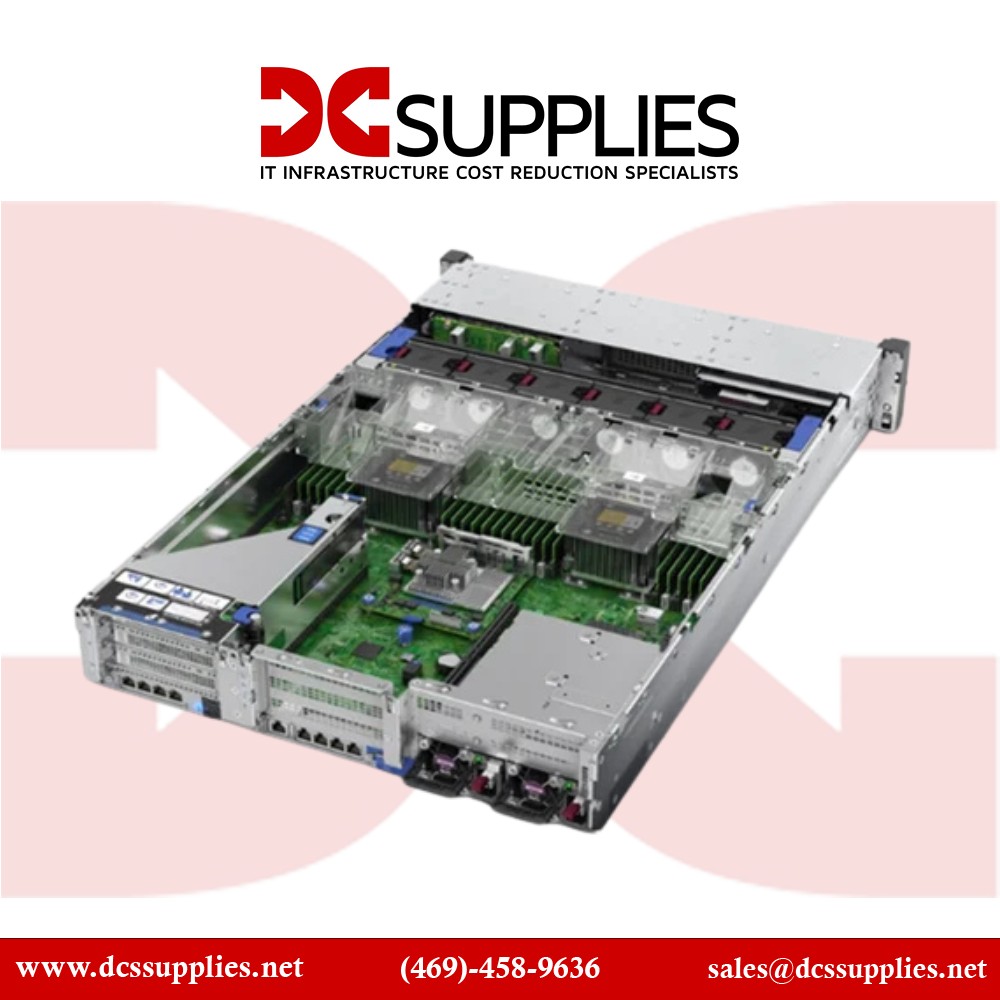

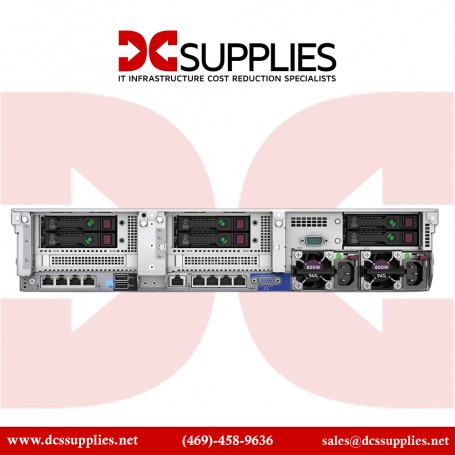

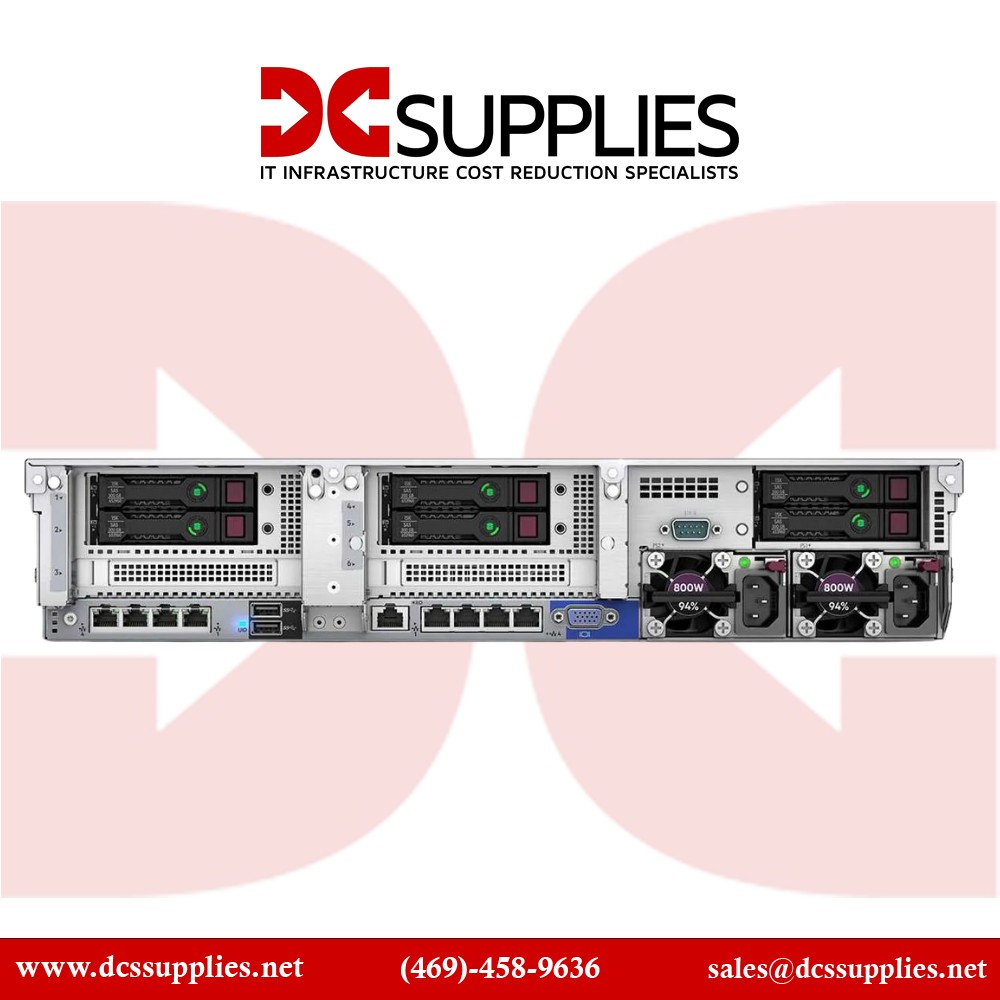

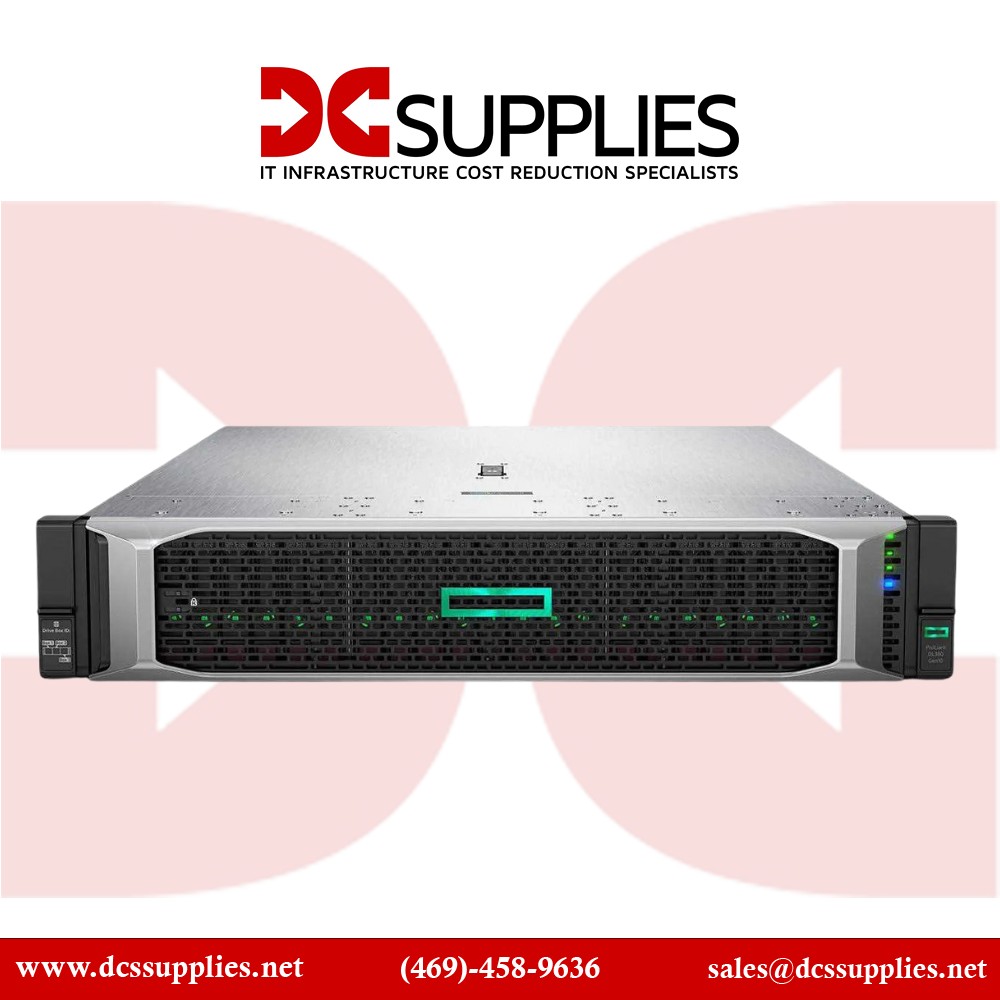

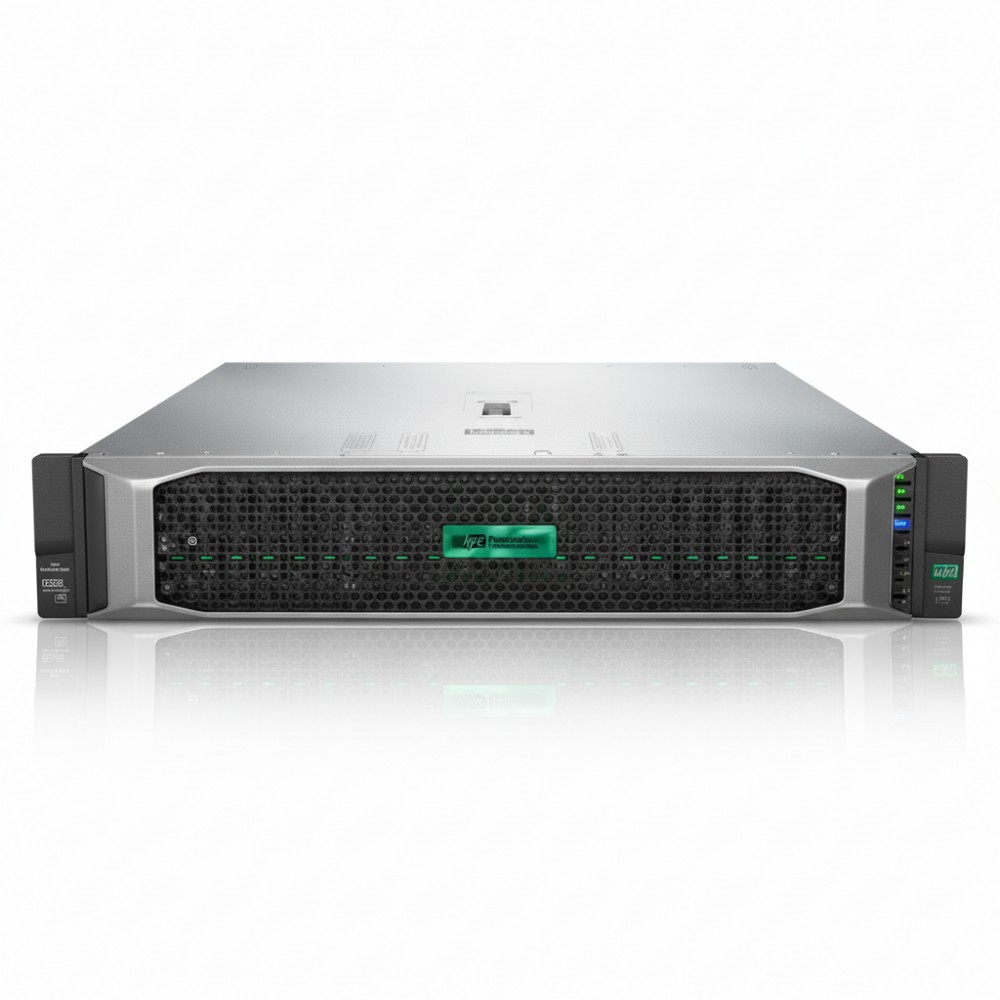

HPE P56962-B21 - ProLiant DL380 Gen10 2U Rack Server
Overview
The HPE P56962-B21 is a 2-rack-unit (2U) server based on the HPE ProLiant DL380 Gen10 platform, aimed at general-purpose computing in data centres, branch server rooms or virtualised environments. It ships with one Intel Xeon Gold 5218 processor (16 cores, 2.3 GHz) along with 32 GB of registered DDR4 memory and supports eight small form factor (SFF) drive bays in the front. This configuration is ideal when you need a flexible server that can handle mixed workloads × from virtual machines to database front-ends × without moving up to a larger chassis. It supports HPE's Smart Array controllers, remote management via HPE's iLO interface and redundant power supply options for increased uptime.
Key Features
Equipped with a single Intel Xeon Gold 5218 16-core CPU (2.3 GHz base) which gives strong compute for consolidation, virtualisation or moderate batch tasks.
Comes with 8 front hot-plug SFF drive bays providing a compact storage footprint with expansion potential (supports SAS/SATA).
Includes an 800W Flex Slot Platinum hot-plug low-halogen power supply enabling redundancy and efficient power provisioning in rack installations.
Supports HPE iLO management out of the box and infrastructure-ready features (trusted platform, firmware rollback, security features), making it suitable for enterprise-grade deployment.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | P56962-B21 |
| Product Type | Rack Server (2U, General-Purpose) |
| CPU | 1 × Intel Xeon Gold 5218 (16 cores, 2.3 GHz) |
| Memory | 32 GB DDR4 Registered (installed) |
| Drive Bays | 8 × Small Form Factor (SFF) hot-plug bays |
| Network Adapter | 10 Gb Ethernet FLR-T 2-port adapter (as shipped) |
| Power Supply | 1 × 800 W Flex Slot Platinum Hot Plug |
| Form Factor & Chassis | 2U rack mount, ~17.5″ width, ~28.8″ depth |
| Warranty | Standard hardware warranty (3-year parts/labour recommended) |
