Detailed Specifications

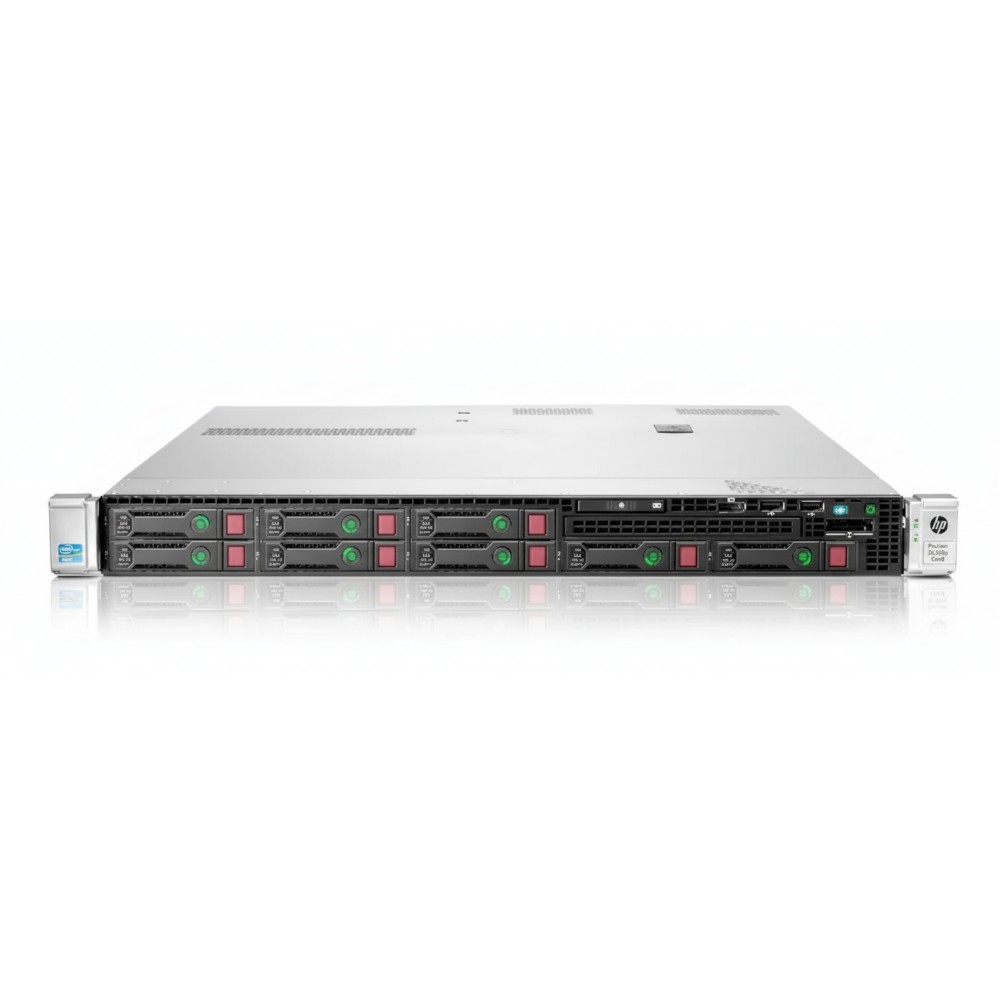

HPE 654081-B21 ProLiant DL360p Gen8 1U Rack Server (8 SFF Drive Bays)
Overview
The HPE 654081-B21 is a configure-to-order variant of the ProLiant DL360p Gen8 series built for enterprise datacentres where rack-density and flexible storage matter. It accepts up to two Intel Xeon E5-2600 v2 family processors, supports up to 24 DIMM slots of DDR3 memory, and features eight hot-plug 2.5″ SFF drive bays. With a 1U rack form factor (17.1″ W × 27.5″ D × 1.7″ H) the server can be deployed in dense rack rows, and thanks to HPE's iLO remote management it is suited for lights-out operations and multi-node orchestration.Because it supports dual sockets, high memory capacity and enterprise-grade I/O (including FlexibleLOM networking and PCIe 3.0 slots), this model is a capable platform for virtualization, mixed compute/data workloads, or consolidation of legacy applications into refreshed infrastructure.
Key Features
Dual-socket Intel Xeon E5-2600 v2 support delivers up to 12- or 15-core processors each (depending on model) for high compute density.
Eight front hot-plug 2.5″ SFF drive bays support SAS/SATA (and optional SSD) configurations in a compact 1U form.
Up to 24 DIMM slots supporting RDIMM/UDIMM/LRDIMM DDR3 memory (up to ~768 GB depending on processor) for large memory footprints.
FlexibleLOM networking option plus two PCIe 3.0 slots provide expandable I/O×ideal for 10GbE or storage adapters.
HPE iLO management engine with Intelligent Provisioning enables remote firmware updates, health monitoring and server lifecycle control.
Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | 654081-B21 |
| Product Type | ProLiant DL360p Gen8 1U Rack Server (8 SFF bays) |
| Key Specification - Processor | Dual Intel Xeon E5-2600 v2 Series (socket LGA2011) |
| Key Specification - Drive Bays | 8 × 2.5″ SFF hot-plug SAS/SATA drive bays |
| Key Specification - Memory Max | Up to ~768 GB DDR3 across 24 DIMM slots (varies by CPU) |
| Memory (Standard) | Configuration varies (CTO chassis) |
| Storage Controller | Embedded Smart Array P420i (or equivalent) |
| Network Interface | FlexibleLOM slot for 1GbE/10GbE + embedded 4-port 1GbE |
| Expansion Slots | 2 × PCIe 3.0 slots (Full-Height/Half-Length + Low Profile) |
| Form Factor & Dimensions | 1U Rack; 1.7″ H × 17.1″ W × 27.5″ D |
| Weight | Approx. 32 lb (14.5 kg) minimum |
| Chipset | Intel C600 Series |
| Warranty | 3-Year parts / 3-Year labour / 3-Year onsite (typical) |
