Detailed Specifications

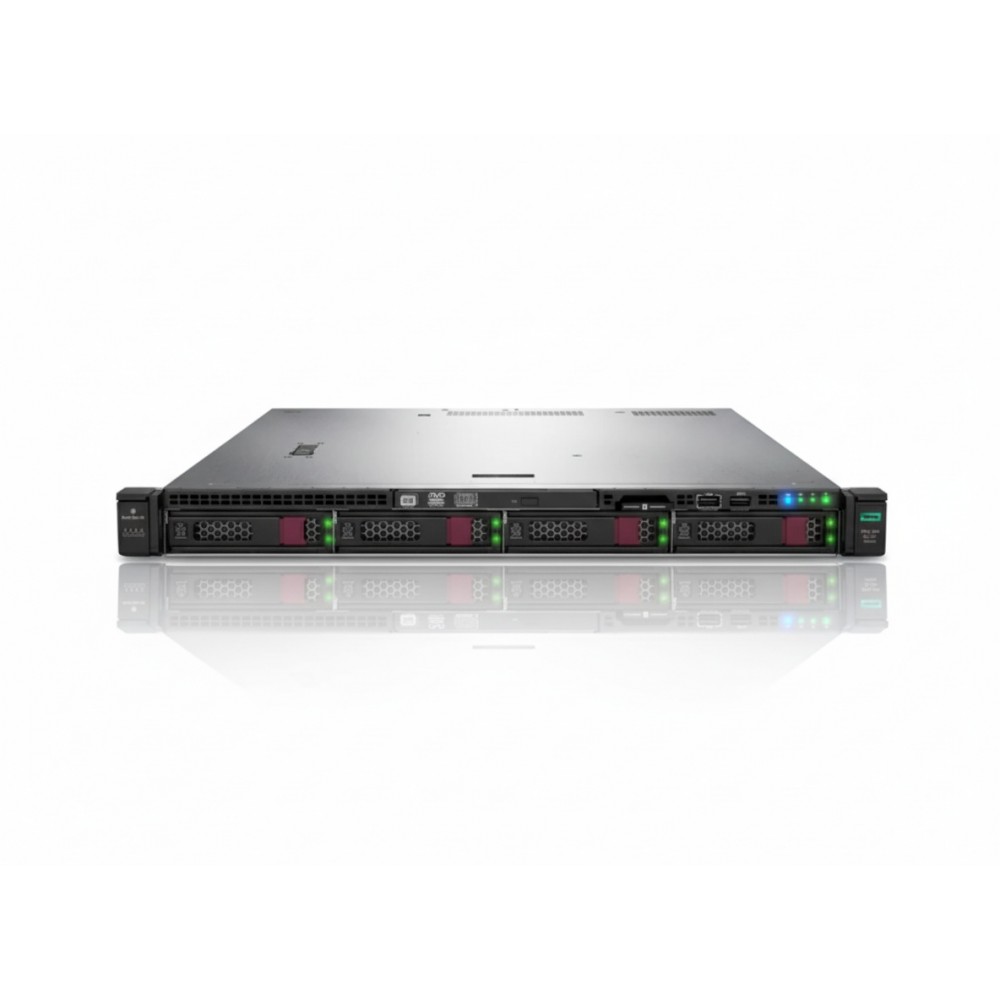

HPE P04646-B21 - ProLiant DL325 Gen10 1U Rack Server
Overview
The HPE P04646-B21 is a single-socket, 1U rack-mount server crafted for I/O-intensive and virtualised environments that demand compact form-factor with strong throughput. It is configured with an AMD EPYC 7251 8-core (2.1 GHz) processor and 8 GB of DDR4 registered memory×sufficient for entry deployments such as virtual machine hosts, software-defined storage nodes or general-purpose compute in branch or edge datacentres. The server's 4 large-form-factor (LFF) hot-plug drive bays offer high capacity for bulk data storage or backup applications.In real-world use, you'd rack this unit alongside networking gear in a standard 19-inch rack, leveraging its non-redundant 500 W power supply and embedded HPE iLO management for remote monitoring and firmware updates. Because it is based on the AMD EPYC single-socket architecture, the DL325 line delivers a "2P equivalence" level of I/O and memory bandwidth in a 1P design×a compelling cost-effective choice for mid-density deployments. This model suits organisations with constrained rack space or branch sites where power/cooling budgets matter, yet who still want enterprise-class manageability and upgrade headroom.
Key Features
AMD EPYC 7251 8-core (2.1 GHz) processor delivers eight physical cores in a 1-socket server footprint.
Four hot-plug LFF (3.5″) drive bays enable high-capacity storage options for backup, file services or bulk-VM hosts.
Embedded HPE Smart Array E208i-a (12 Gb/s SAS) controller provides RAID functionality for SAS/SATA media.
HPE iLO 5 management engine with Intelligent Provisioning facilitates remote server health monitoring, firmware updates and fleet management.
Compact 1U chassis with 500 W non-hot-plug power supply reduces rack space and cooling demands for edge/branch deployments.
Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | P04646-B21 |
| Product Type | ProLiant DL325 Gen10 1U Rack Server |
| Key Specification - Processor | AMD EPYC 7251 (2.1 GHz, 8-core, 120 W) |
| Key Specification - Drive Bays | 4 × 3.5″ LFF hot-plug SAS/SATA bays |
| Key Specification - Memory Max | Up to 2 TB (16 × 128 GB LRDIMM) |
| Memory (Standard) | 8 GB (1 × 8 GB RDIMM DDR4-2666) |
| Storage Controller | HPE Smart Array E208i-a (12 Gb/s SAS) |
| Network Interface | Integrated 4 × 1 Gb E ports + optional FlexibleLOM |
| Form Factor & Dimensions | 1U Rack; approx 1.69″ H × 17.11″ W × 24.21″ D |
| Power Supply | 1 × 500 W non-hot-plug power supply |
| Expansion Slots | 2 × PCIe 3.0 (x16, x8) standard |
| Chipset | AMD EPYC SoC (no separate chipset) |
| Operating Temperature Range | 10 °C to 35 °C |
| Warranty | Standard 3-year parts/3-year labour (varies by region) |
