Detailed Specifications

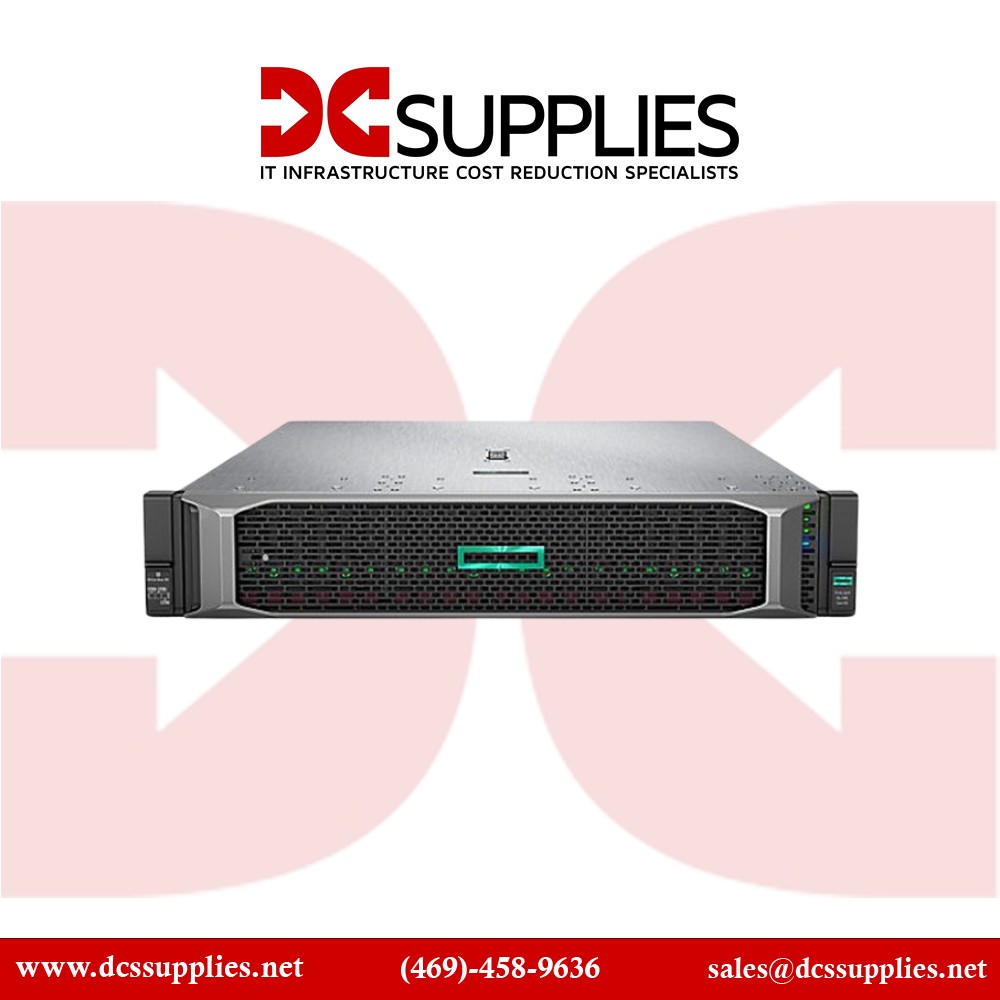

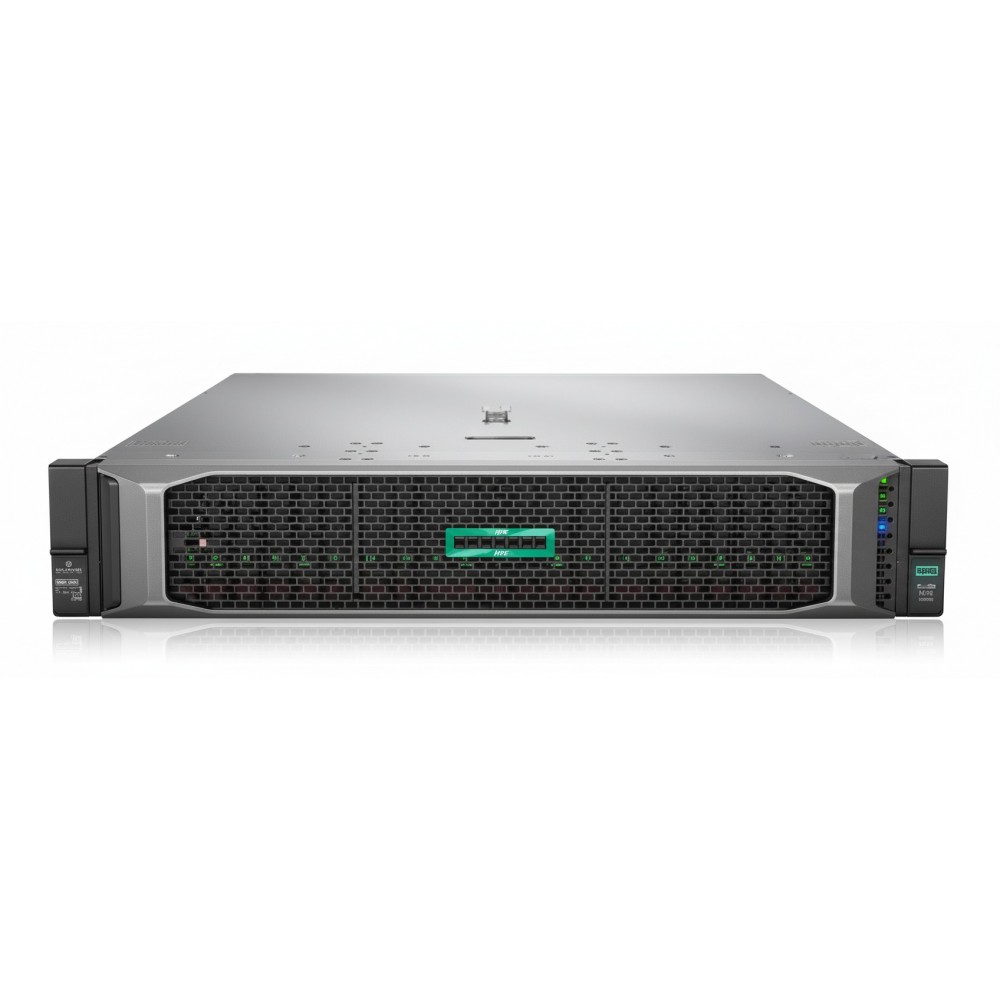

HPE P05887-B21 ProLiant DL385 Gen10 2U Rack Server (1P 8 SFF)
Overview
The HPE P05887-B21 is a factory-integrated server built on the ProLiant DL385 Gen10 2-rack-unit chassis, designed for data-centre or mid-tier environments that want single-socket AMD EPYC performance with enterprise-class manageability. In its base configuration it comes with an AMD EPYC 7251 processor (8-core, 2.1 GHz) and 16 GB of DDR4 registered memory, making it a solid choice for virtualisation hosts, file/application servers, or branch datacentre consolidation workloads.The chassis supports up to eight 2.5″ hot-plug small-form-factor drive bays (SFF) configured out of the box, with a built-in HPE Smart Array P408i-a 12 Gb/s SAS controller giving RAID 0/1/10/5/50/6/60 support.his makes the unit versatile for mixed storage workloads×from high-performance database caching to dense VM storage. The server includes a 500 W redundant power supply configuration in its base form, allowing for resilient, efficient rack installations. For IT operations teams, this model integrates remote management via HPE Integrated Lights-Out (iLO) and supports SmartMemory, large memory configurations and optional NVMe/accelerator risers, giving headroom for future growth. It is delivered in a 2U standard rack footprint, making it compatible with conventional enterprise racks and tools. The P05887-B21 is a pragmatic balance between cost, performance, and upgrade potential.
Key Features
Single AMD EPYC 7251 (8-core, 2.1 GHz) delivers strong base compute density in a 1-socket format for lower cost and power.
Eight front hot-plug 2.5″ SFF bays offer flexible storage for SAS/SATA (and optional NVMe) workloads in a 2U chassis.
Embedded HPE Smart Array P408i-a (12 Gb/s SAS) RAID controller supports enterprise RAID levels and caching for performance and protection.
500 W redundant power supply (or RPS) provides availability and efficient power draw in rack environments.
Enterprise remote management and firmware support via HPE iLO and SmartMemory architecture, enabling lights-out and fleet operations.
Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | P05887-B21 |
| Product Type | ProLiant DL385 Gen10 2U Rack Server |
| Key Specification - Processor | AMD EPYC 7251 (2.1 GHz base, 8 cores) |
| Key Specification - Drive Bays | 8 × 2.5″ SFF hot-plug SAS/SATA (base) |
| Key Specification - Memory Capacity | Up to 4,096 GB (32 × 128 GB LRDIMM) |
| Memory (Standard) | 16 GB (1 × 16 GB DDR4 Registered) |
| Storage Controller | HPE Smart Array P408i-a SR Gen10 (12 Gb/s SAS) |
| Network Interface | Integrated 4-port 1 GbE (331i) + FlexibleLOM option |
| Expansion Slots | PCIe 3.0 risers w/ multiple slot configurations for GPU/NVMe support |
| Power Supply | 500 W hot-plug redundant power supply (base) |
| Form Factor & Dimensions | 2U rack; approx. 17.5″ W × ~28.0″ D × 3.44″ H |
| Weight | Approx. 32 lb (≈14.5 kg) minimum configuration |
| Chipset | AMD "System on Chip" (SoC) design supporting up to 2 sockets |
| Warranty | Standard: 3-year parts / 3-year labour / 3-year onsite support (varies by region) |
