Detailed Specifications

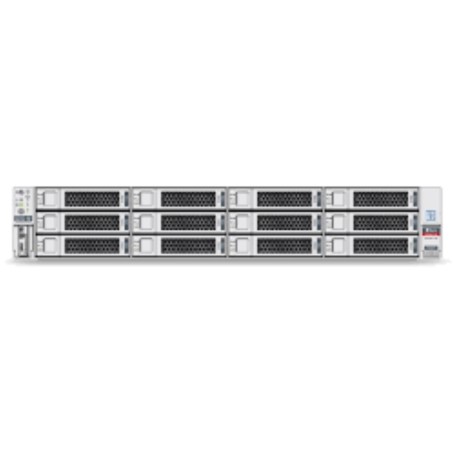

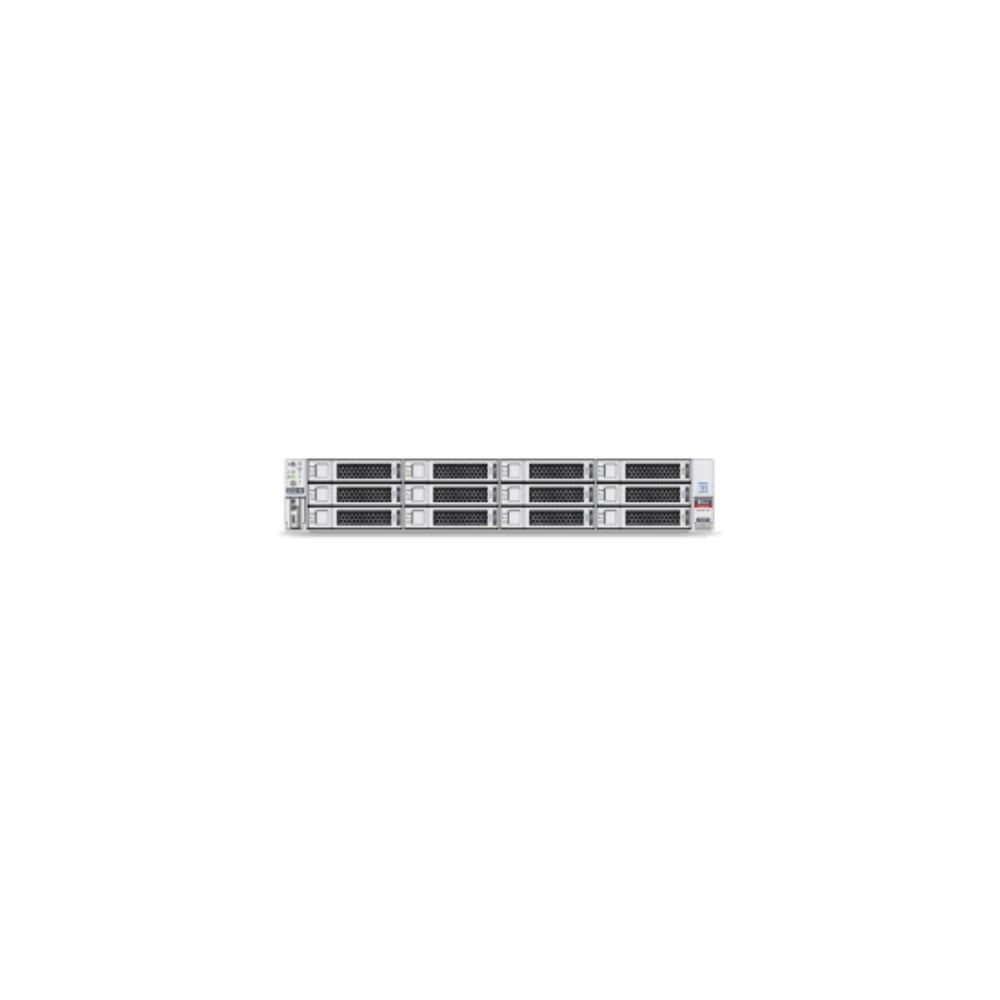

Oracle Server X8-2L Scalable Enterprise Server
Overview :
The Oracle Server X8-2L is a high-performance, 2U rack-mount server designed to balance compute, memory, and I/O density.Powered by up to two 2nd Generation Intel Xeon Scalable processors, it is engineered specifically for demanding enterprise database deployments, large-scale virtualization, and storage-heavy applications like NoSQL and Hadoop.
This platform provides significant storage flexibility, supporting up to 12 Large Form Factor (LFF) drives or high-speed NVMe flash configurations.It includes 11 PCIe 3.0 expansion slots, offering exceptional I/O throughput for high-performance networking and storage interconnects.The server is optimized for the Oracle software stack, featuring built-in proactive fault detection and remote management via Oracle Integrated Lights Out Manager (ILOM).
It is intended for enterprise data centers requiring high storage capacity and compute performance in a compact 2U footprint. It should not be used for low-profile, low-power edge deployments, as the hardware is optimized for high-intensity, rack-dense enterprise computing.
Key Features :
Supports two 2nd Gen Intel Xeon Scalable processors (up to 48 cores).
Up to 1.5 TB of DDR4 memory across 24 DIMM slots for large datasets.
Up to 102.4 TB NVMe flash storage capacity for low-latency I/O.
11 PCIe 3.0 slots provide extensive I/O and networking scalability.
12-bay 3.5-inch drive chassis for high-capacity storage density.
Specifications :
| Feature | Specification |
| Brand | Oracle |
| Part Number | X8-2L |
| Product Type | 2-Socket Enterprise Server |
| Processor | 2x Intel Xeon Scalable (2nd Gen) |
| Memory Capacity | Up to 1.5 TB (DDR4) |
| Memory Slots | 24 DIMM slots |
| I/O Interfaces | 11x PCIe 3.0 slots |
| Storage Bays | 12x 3.5-inch hot-swappable bays |
| Flash Options | Up to 12x NVMe SSDs (front-access) |
| Power Supply | 2x 1,200 W hot-swappable (N+N redundant) |
| Management | Oracle ILOM 4.0 |
| Form Factor | 2U Rack-mount |
| OS Compatibility | Oracle Linux, Oracle Solaris, Oracle VM |
