Detailed Specifications

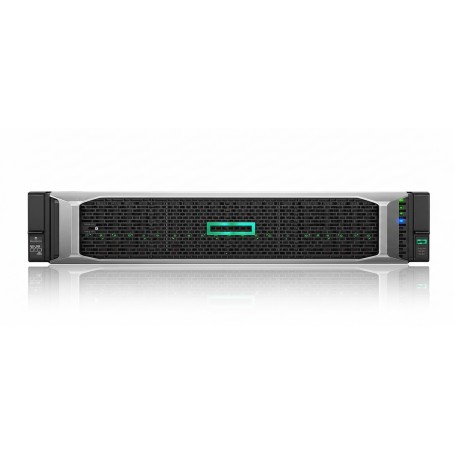

HPE 830076-S01 ProLiant DL560 Gen9 2U Server
Overview
The HPE 830076-S01 is a 2U rack-mount server built for infrastructure engineers deploying dual-processor compute nodes in enterprise data-centres or converged racks. This factory-configured model includes two Intel Xeon E5-4627 v4 processors (each 10-core at 2.6 GHz) and 64 GB of DDR4 SmartMemory, providing a solid basis for virtualization, database or general-purpose workloads. The chassis supports up to two processors and up to 1.5 TB of DDR4 memory across 48 DIMM slots, allowing for growth in memory-intensive applications. With eight 2.5-inch SFF hot-plug drive bays and an HPE Smart Array P440ar controller with 2 GB FBWC, it is suited for SAS/SATA storage configurations. Embedded HPE iLO management enables remote hardware control and lifecycle monitoring. Its 2U format allows efficient rack utilization while delivering flexibility and scalability for enterprise and campus deployments.
Key Features
Two Intel Xeon E5-4627 v4 processors (10-core, 2.6 GHz) installed.
Eight 2.5-inch SFF hot-plug drive bays for SAS/SATA/SSD storage.
Smart Array P440ar controller with 2 GB FBWC for data integrity.
Up to 1.5 TB DDR4 SmartMemory via 48 DIMM slots for growth.
Embedded HPE iLO management and 4-port 1 Gb Ethernet for remote control.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | 830076-S01 |
| Product Type | ProLiant DL560 Gen9 2U Rack Server |
| Processor Installed | 2 × Intel Xeon E5-4627 v4 (2.6 GHz, 10-core) |
| Processor Supported (Max) | Up to 2 × Intel Xeon E5-4600 v4/v3 series |
| Memory Installed | 64 GB DDR4 SmartMemory |
| Memory Slots | 48 DIMM slots |
| Maximum Memory Supported | Up to 1.5 TB DDR4 |
| Drive Bays | 8 × 2.5-inch SFF hot-plug |
| Storage Controller | HPE Smart Array P440ar (2 GB FBWC) |
| Network Adapter | 4 × 1 Gb Ethernet (331i) |
| Form Factor (H × W × D) | 3.4 in × 17.0 in × 27.3 in |
| Weight (lbs) | ~50 lbs |
| Power Supply | 2 × 1200 W Common-Slot Platinum Hot-Plug |
| Rack Units | 2U |
