HPE ProLiant 867447-S01 DL360 Gen9 Intel Xeon E5-2620 v4 Octa-core (8 Core) 2.10 GHz - 16 GB View larger
Previous Next

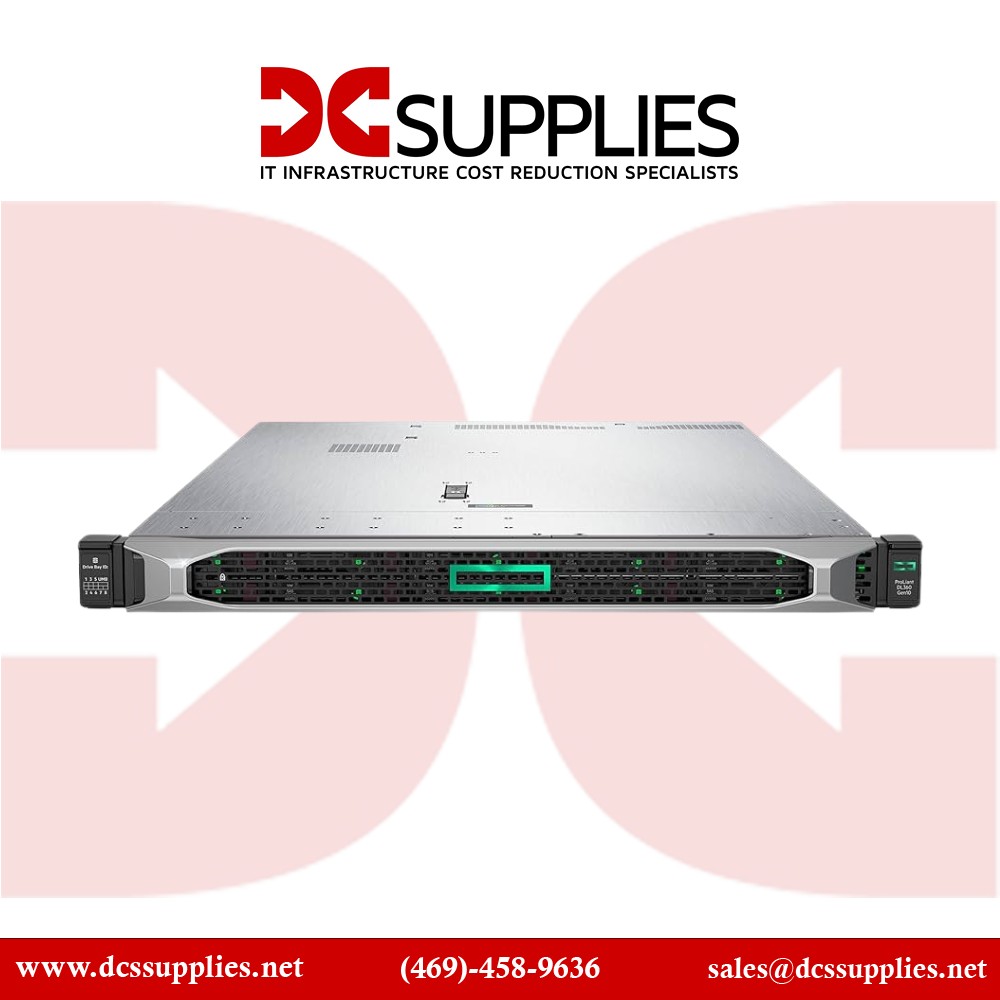

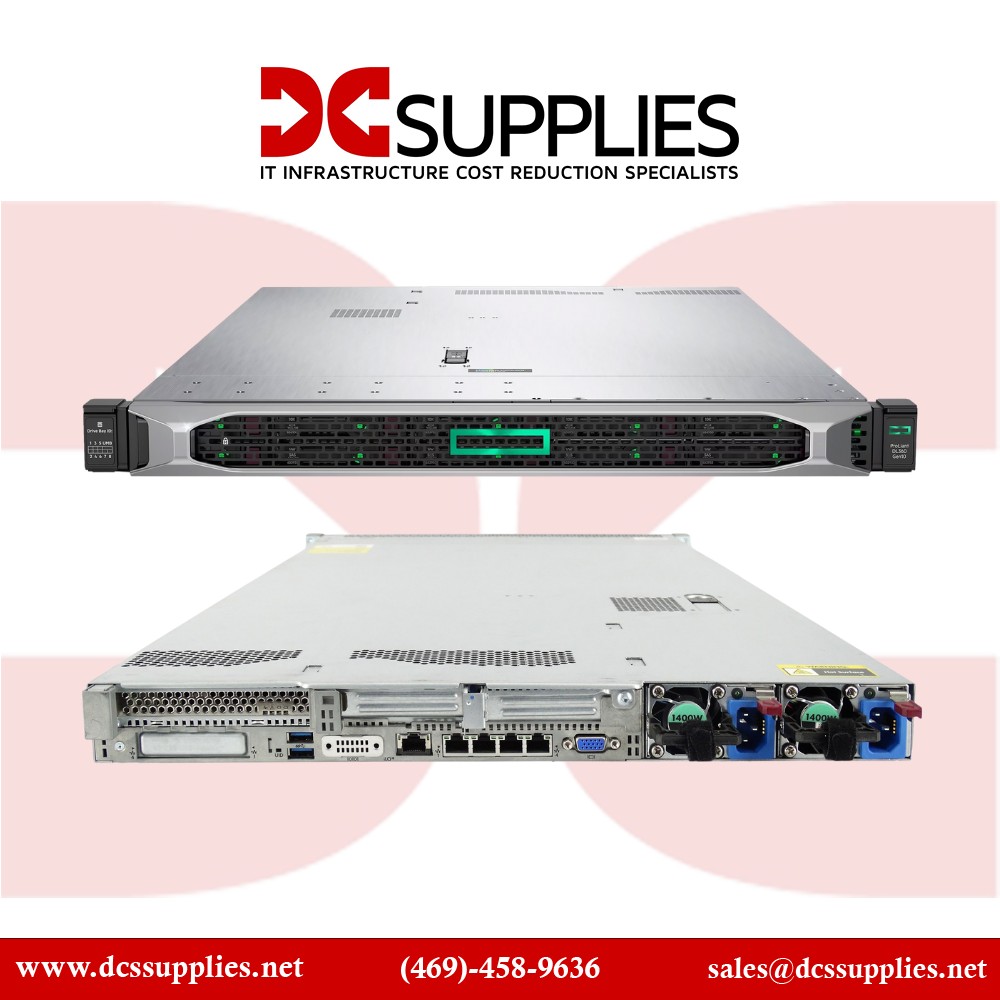

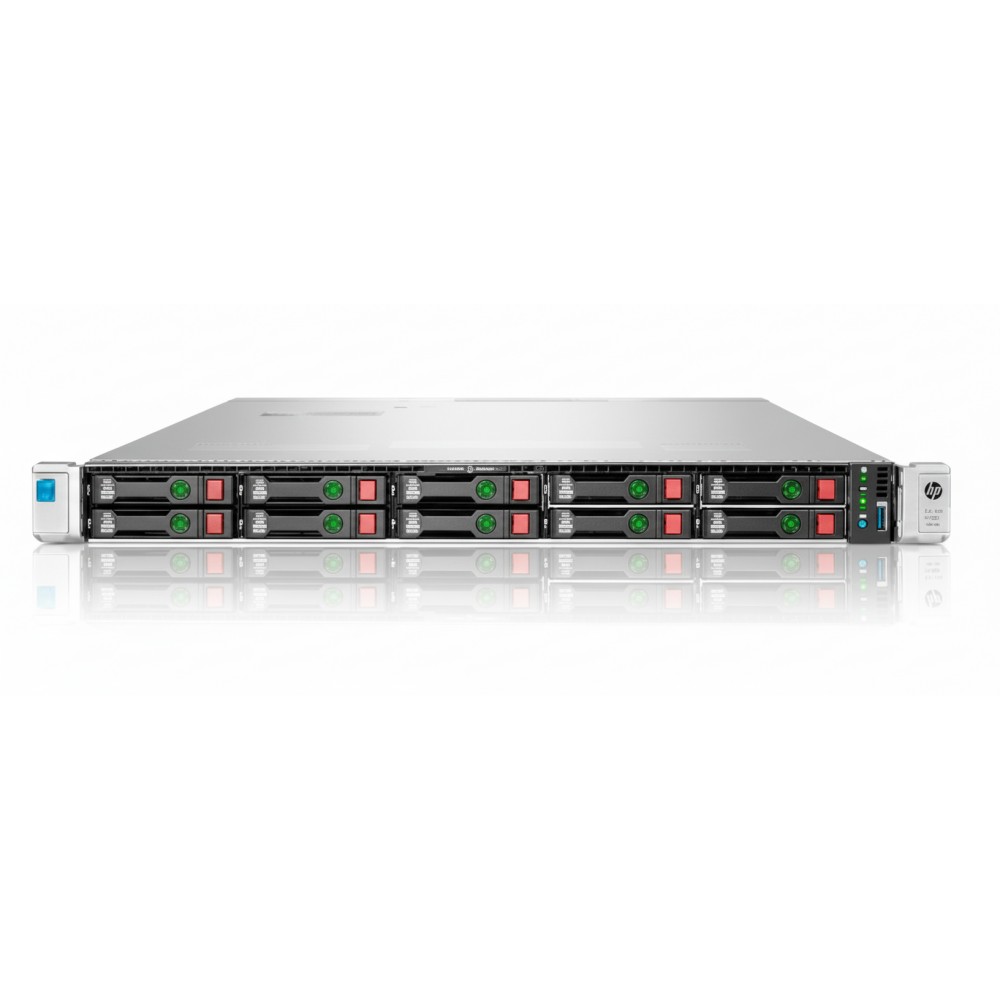

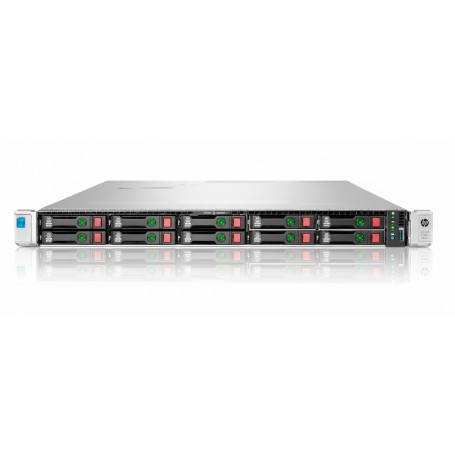

HPE ProLiant 867447-S01 DL360 Gen9 Intel Xeon E5-2620 v4 Octa-core (8 Core) 2.10 GHz - 16 GB

New

HPE ProLiant 867447-S01 DL360 Gen9 Intel Xeon E5-2620 v4 Octa-core (8 Core) 2.10 GHz - 16 GB
×




  • New

Detailed Specifications

HPE 867447-S01

ProLiant DL360 Gen9 Intel Xeon E5-2620 v4 Octa-core (8 Core) 2.10 GHz - 16 GB

The HPE ProLiant DL360 Gen9 867447-S01 delivers an ideal balance of compute, memory, and storage within a slim 1U rack footprint. Armed with an Intel Xeon E5‑2620 v4 processor and 16 GB of DDR4 SmartMemory, this server is tailor-made for virtualization, general-purpose compute, and scalable enterprise workloads. Its compact size doesn’t compromise on scalability — with room to grow in CPU, memory, and storage.

Features :

Built for efficiency and density, the DL360 Gen9 harnesses powerful compute resources in a small form factor. With one 8-core Xeon E5‑2620 v4 installed (upgradable to two), it supports multi-threaded processing of VM, network, and application workloads. Memory starts at 16 GB but can be scaled uniquely depending on memory configuration — supporting up to 384 GB using registered or 768 GB using load‑reduced modules. DDR4 Smart Memory ensures data integrity via ECC and a notable performance boost.

Advanced Options :

Equipped with eight hot-swappable SFF (2.5″) drive bays and an HPE P440ar Smart Array controller, the 867447‑S01 offers flexible storage configurations with support for RAID levels 0, 1, 5, 6, 10, 50, and 60. Administrators benefit from full lifecycle control via HPE iLO 4, enabling remote monitoring, updates, and deployment — no matter where your hardware resides.

Product Key Features

  • Intel Xeon E5‑2620 v4 (8‑core, 2.1 GHz turbo up to 3.0 GHz)

  • 16 GB DDR4 ECC SmartMemory installed (expandable up to 384 GB/768 GB depending on memory type)

  • 1U rackmount chassis with 8× SFF bays and P440ar RAID controller

  • Dual-processor capability in a dense, space-saving design

  • Integrated HPE iLO 4 for remote management

  • Hot-swappable 500 W high-efficiency power supply with redundancy support

Reliability & Performance :

The DL360 Gen9 is designed for 24/7 enterprise reliability: hot-plug components, redundant power supply support, and intelligent cooling. DDR4 memory and an 85 W TDP CPU, paired with Turbo Boost and quad-channel channels, offer balanced compute efficiency. Matrox G200 embedded graphics enables BIOS-level console access. Licensed under WEEE/CE/RoHS standards, this server meets global compliance needs.

Key Features :

  • Intel Xeon E5‑2620 v4, 8 cores, 2.1 GHz (turbo to 3.0 GHz)

  • 16 GB DDR4 ECC SmartMemory (expandable up to 384 GB registered / 768 GB load‑reduced)

  • 1U rack chassis with 8× SFF bays

  • HPE P440ar Smart Array RAID controller (12 Gb/s, 2 GB FBWC)

  • Redundant hot-pluggable 500 W power supply

  • Integrated Lights-Out 4 (iLO 4) management

  • Up to 2 processors supported

  • Quad-channel memory architecture

  • Support for RAID 0, 1, 5, 6, 10, 50, 60

Specifications :

SpecificationDetails
Model Number 867447-S01
Form Factor 1U Rackmount
Processor Intel Xeon E5‑2620 v4
CPU Cores / Threads 8 cores / 16 threads (1 installed; up to 2 supported)
Base / Turbo Speed 2.1 GHz / up to 3.0 GHz
Installed Memory 16 GB DDR4 ECC SmartMemory
Maximum Memory Up to 384 GB (registered) or 768 GB (load-reduced)
Memory Speed 2133 MHz
Memory Slots 16 DIMM slots
Storage Bays 8 × SFF (2.5″)
RAID Controller HPE P440ar Smart Array, 12 Gb/s, 2 GB FBWC
RAID Level Support 0, 1, 5, 6, 10, 50, 60, 10 ADM
Embedded Graphics Matrox G200
Network Ports 4 × Gigabit Ethernet (HP 331i)
Management HPE iLO 4
Power Supply 500 W hot-plug (redundant support)
Energy Efficiency 85 W CPU, smart cooling, energy certifications
